Direct manufacturer pricing for workbench, packing table, cabinet, shelving, and trolley solutions since 2005. Complete support for ODM and OEM requirements.
Durable and stable steel structure designed for heavy loading. CE and ISO9001 certified, meeting ESD standards IEC-61340-5-1:2007 with guaranteed warranty.
Custom dimensions, layouts, and system configurations. Get detailed design drawings to confirm adjustments as accessories and configurations change.
Round-the-clock professional support to address all user requirements. Over 20 years of experience in secure packing and global shipping logistics.

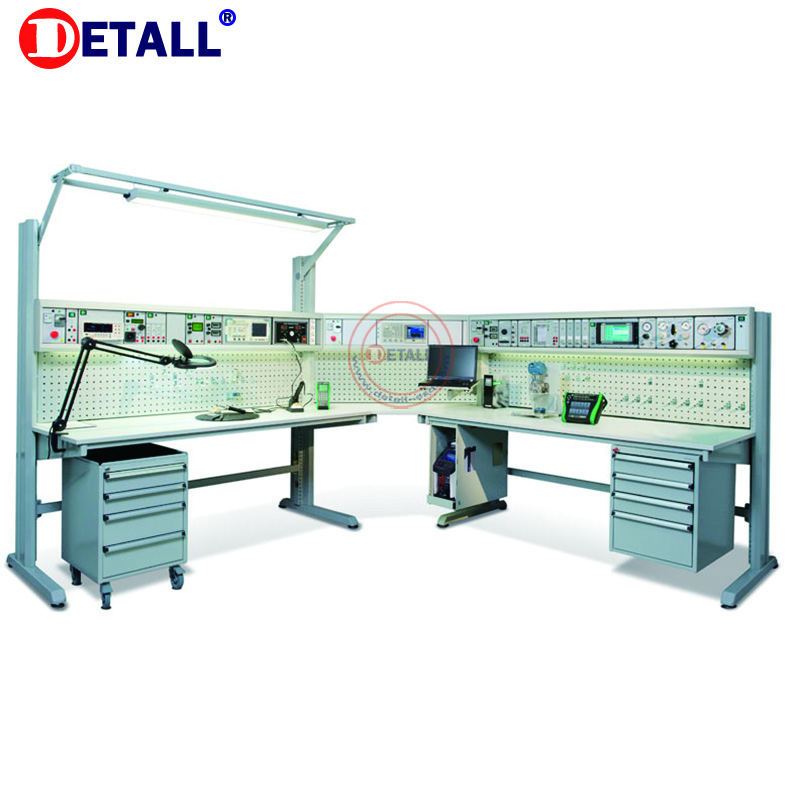

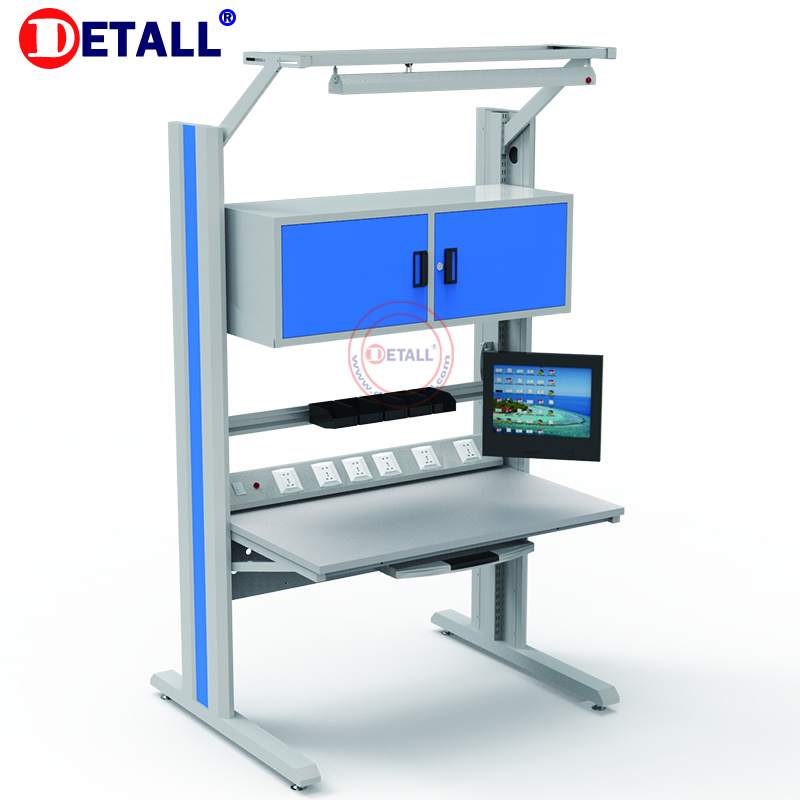

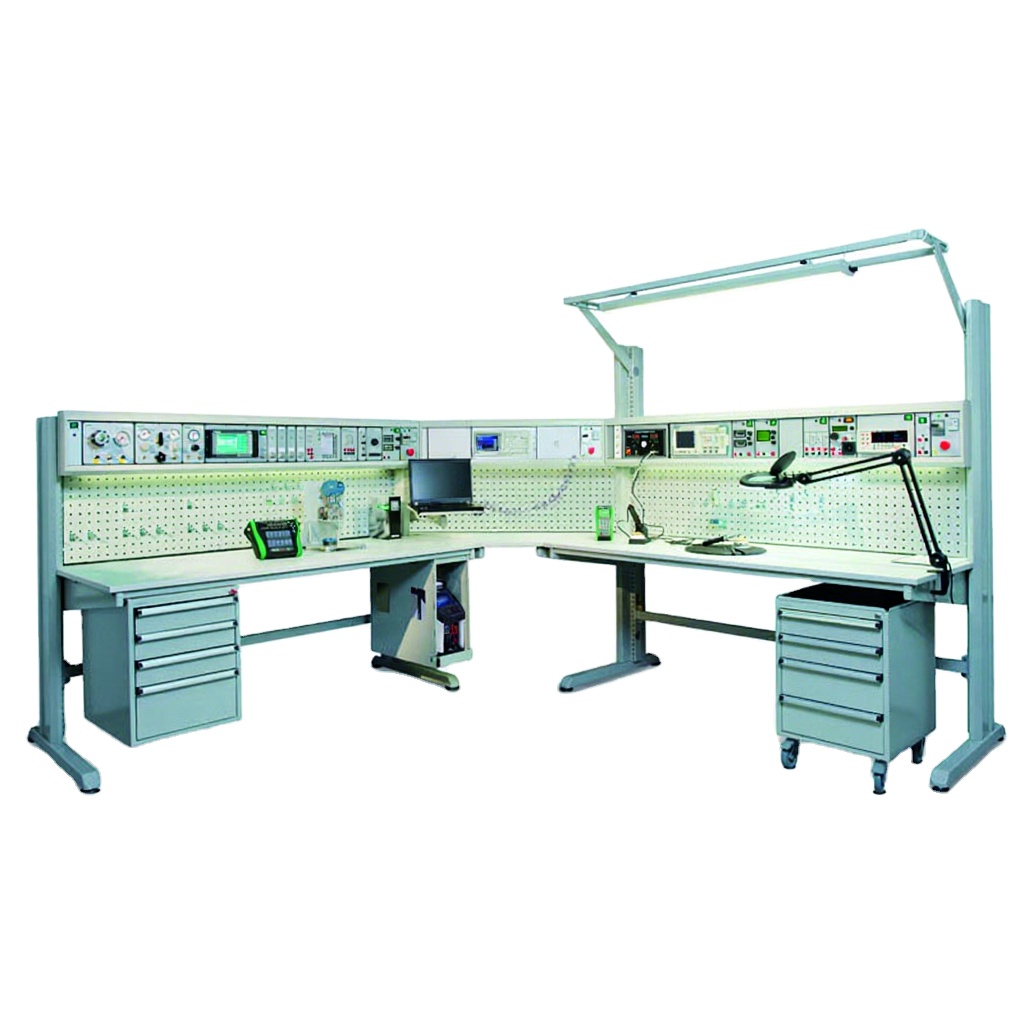

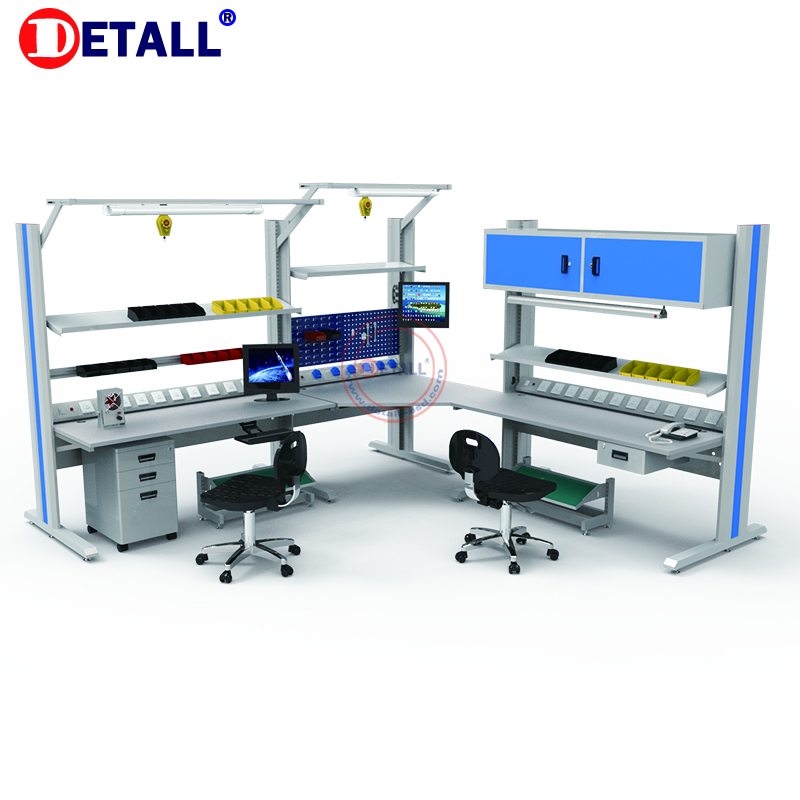

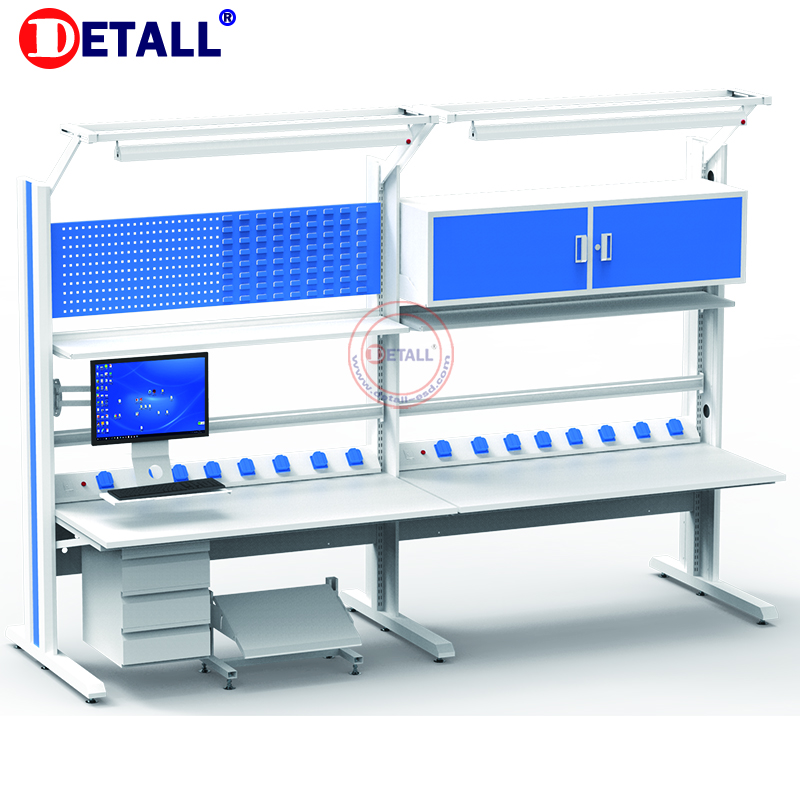

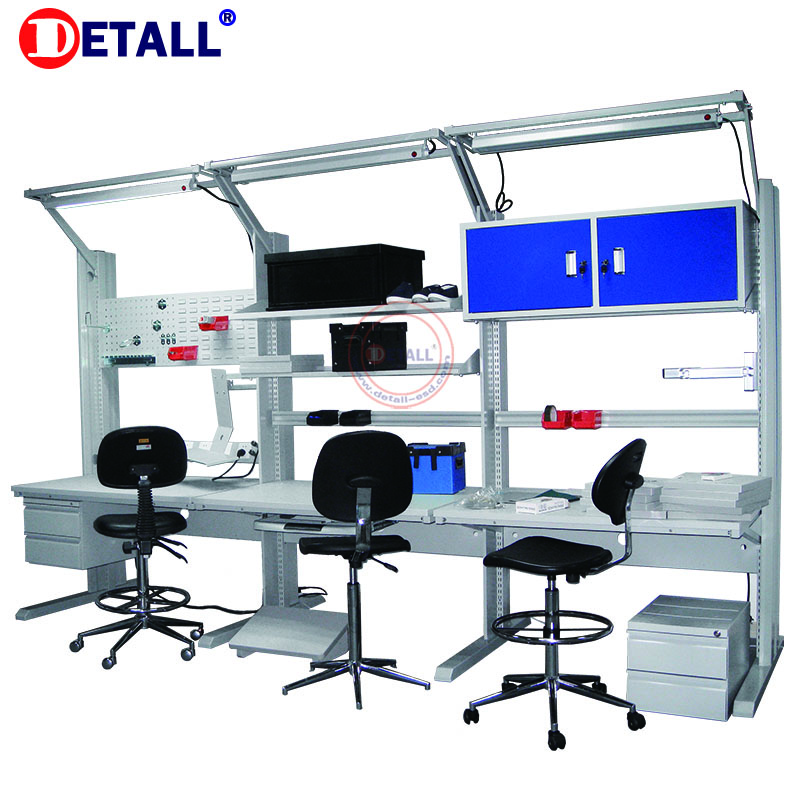

The towerline ESD workbench is a specific type of workbench which adopt the structure of table together with the double slotted Upright frame supporter . it is able to allow the work surface or the optional modular accessories to be mounted on either side of both the single sided and double sided station, and adjustable on workstation along column.
ESD Towerline workbench is suitable for electronics and semiconductor industries , military-industrial , aerospace sectors, contract manufacturers, research and educational organizations and telecommunication industries.
| SPECIFICATIONS FOR ESD WORKBENCH | |||
|---|---|---|---|
| Size | Length | mm | 1200 / 1530 |
| Depth | mm | 600 / 750 | |
| Height | mm | 785mm (table top to ground) 760-1120 (adjustable type) |
|
| Main performance parameters | ESD performance parameters | ohm (test input 100V) | metal surface: 105 - 1010 Laminate surface: 106 - 1010 |
| Static weight loading | KG | 300kg - light duty type 500kg - standard duty type 800kg - heavy duty type |
|

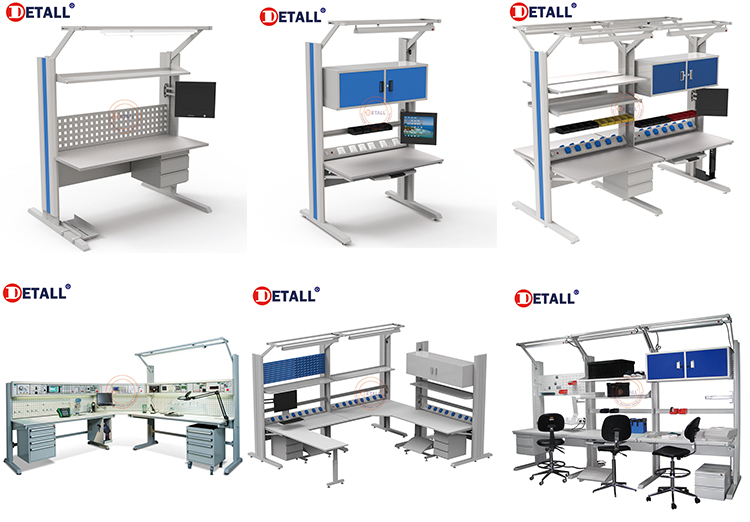

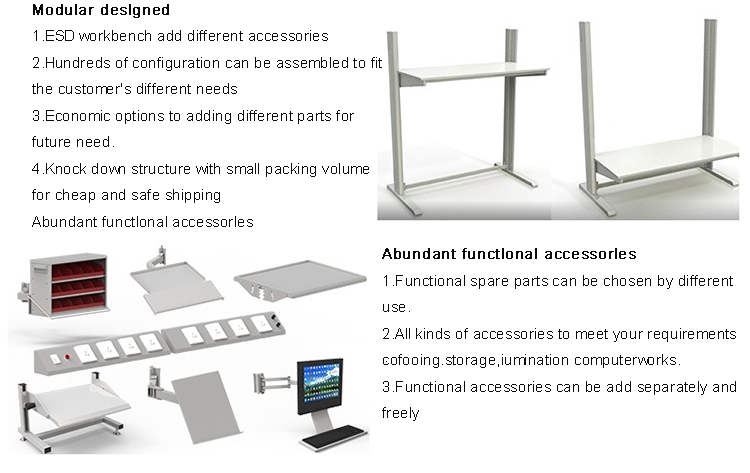

In order to increase the functions and storage space of the workbench, the design divides the workbench's system into different structures. By maximizing the numbers and variety of functional accessories, this design ensures the functions of the workbench are extended to the highest possible utility. The workbench can be divided into 1, 2, or 3 columns by the double slotted Upright frame supporter, adding the maximum quantity of accessories to the columns.
| High Standard of Workbench - CE Certificated | |
|---|---|
| EN ISO 12100:2010 | Safety of machinery - general principles for design - risk assessment and risk reduction |
| EN 60204-1:2006 +A1:2009 +AC:2010 | Safety of machinery - Electrical Equipment of machines - part 1: General requirements |
| IEC 61340-5-1:2007 | Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena |
| Electrical Properties of the ESD Workbench | ||
|---|---|---|
| Test | Relative Humidity | Electrical Results |
| Point to point resistance | 60%-40% | 106 to 1 x 107 ohms |
| 40%-20% | 107 to 1 x 108 ohms | |
| 20%-10% | 108 to 1 x 1010 ohms | |
| Point to earth resistance | 60%-40% | 106 to 1 x 107 ohms |
| 40%-20% | 107 to 1 x 108 ohms | |
| 20%-10% | 108 to 1 x 1010 ohms | |
| Volume Resistance | 60%-30% | 107 to 1 x 108 ohms |
| 30%-10% | 108 to 1 x 1010 ohms | |
| Static Decay | 50% | 0.01sec |
| 10% | 0.02sec | |
|
1. Per EOS/ESD - S 4.1 2. Measured Face to Back at 72°F, 100 V with a LCD Megohmmeter, Item No. 19770, NFPA Electrodes (2.5 inch diameter, 5 pounds) 3. FTMS 101C, Method 4046 |
||
