Heavy Duty Mold Rack, Injection Mould Storage Racks, Standard Drawer Mold Rack

Basic Info

Usage

Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack

Material

Q235 Steel

Structure

Cantilever Rack

Type

Cantilever Racking

Mobility

Adjustable

Height

400-2000mm

Weight

500-1200kg/Arm

Closed

Open

Development

New Type

Serviceability

Common Use

Color

Blue Ral5005 and Yellow Ral2008

Surface Painting

Epoxy Powder Coated for Corrosion Prevention

Certification

ISO9001, SGS Testing, CE, etc.

Assemble & Installation

Installation Service Available

Suitable Equipment

Standard Forklift

Transport Package

Export Standard Package

Specification

Customized

Origin

China

HS Code

73089000

Production Capacity

35000 Tons Per Year

Packaging & Delivery

Package Size

10.00cm * 10.00cm * 10.00cm

Package Gross Weight

2.000kg

Product Description

Heavy Duty Mold Rack, Injection Mould Storage Racks, Standard drawer mold rack

Cantilever Racking System is ideal for storing long, irregular or mixed loads. It is an economical, flexible and uniquely designed system featuring:

3 interchangeable systems: light, medium and heavy duty
Heavy structural steel components provide high resistance to impact damage
Standard arm capacities up to 1500kg & lengths up to 2000mm
Standard column heights up to 10000mm
Pivot Arm Safety System & Arm nose deflectors
Durable galvanised columns, bases, bracing & High visibility safety orange arms

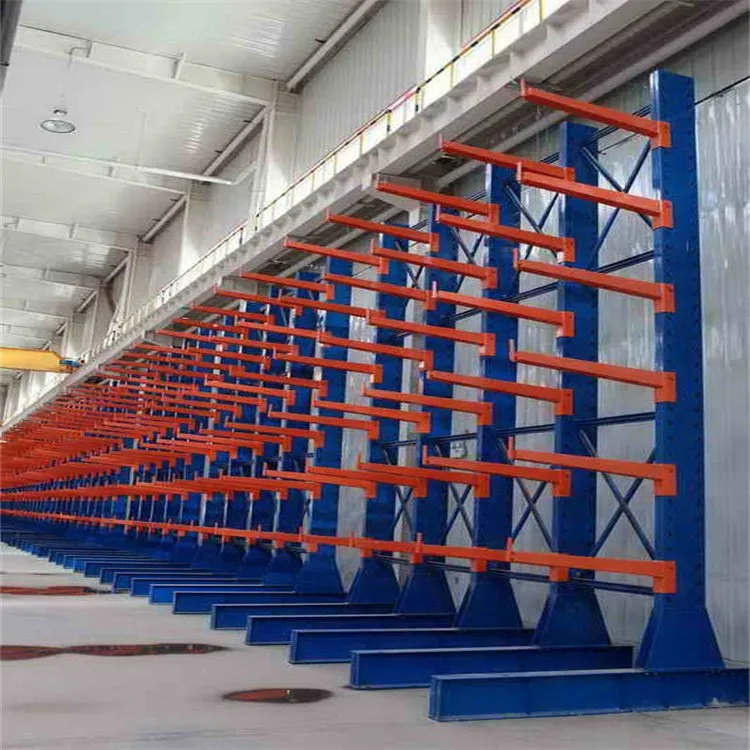

Single Cantilever Arm System

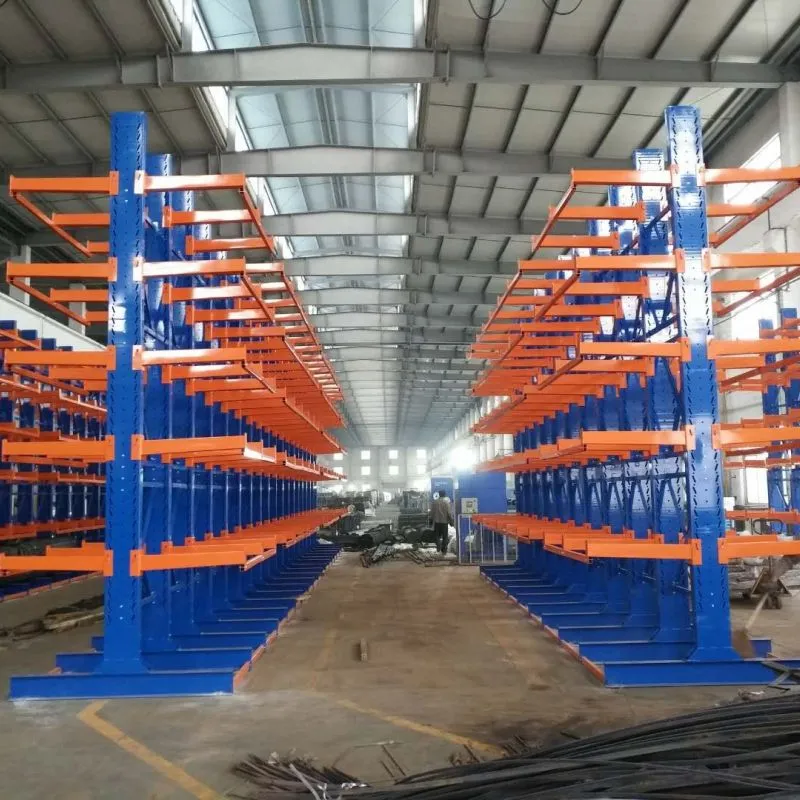

Double Cantilever Arm System

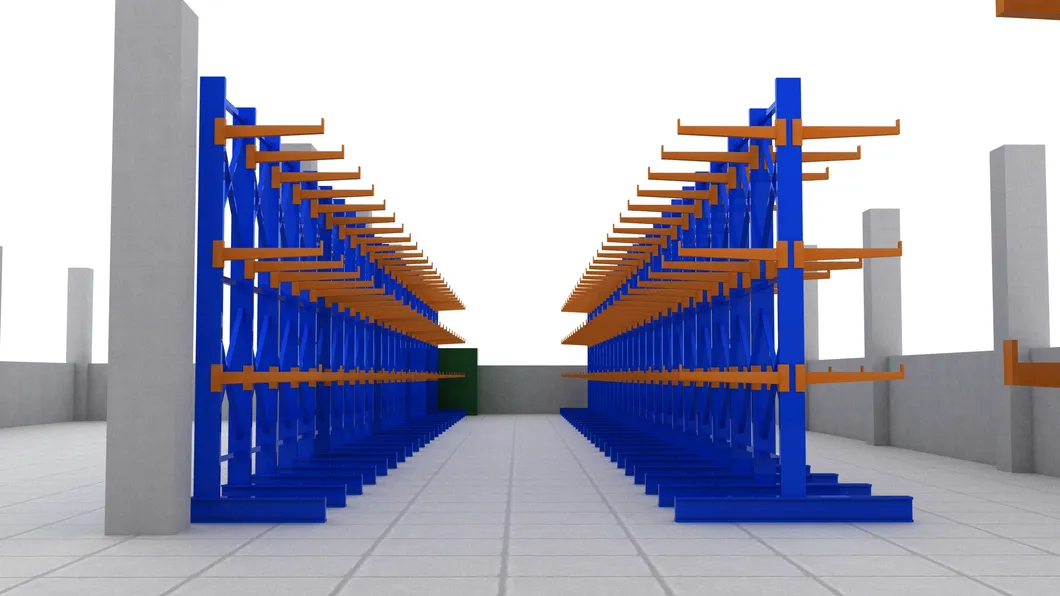

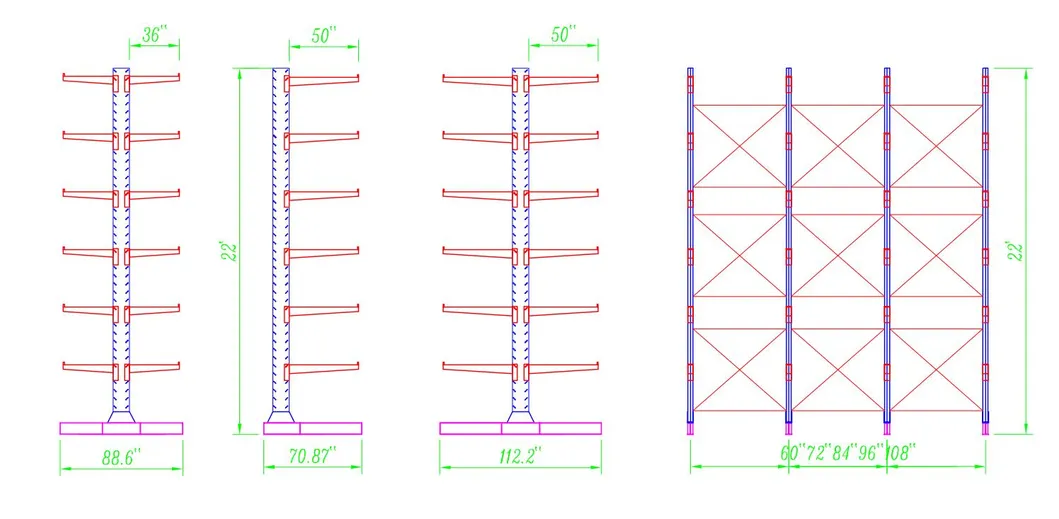

Heavy Duty Mold Rack Cantilever Height Demo

100% Safe Design

The rounded nose design at the tip of the arm together with the single-round-pin bracket, provide the arm with a free uplift motion for accidental uplift by forklift. This safety feature greatly reduces possible damages to the cantilever structure in daily operation. Only medium and heavy load cantilever models provide this safety feature.

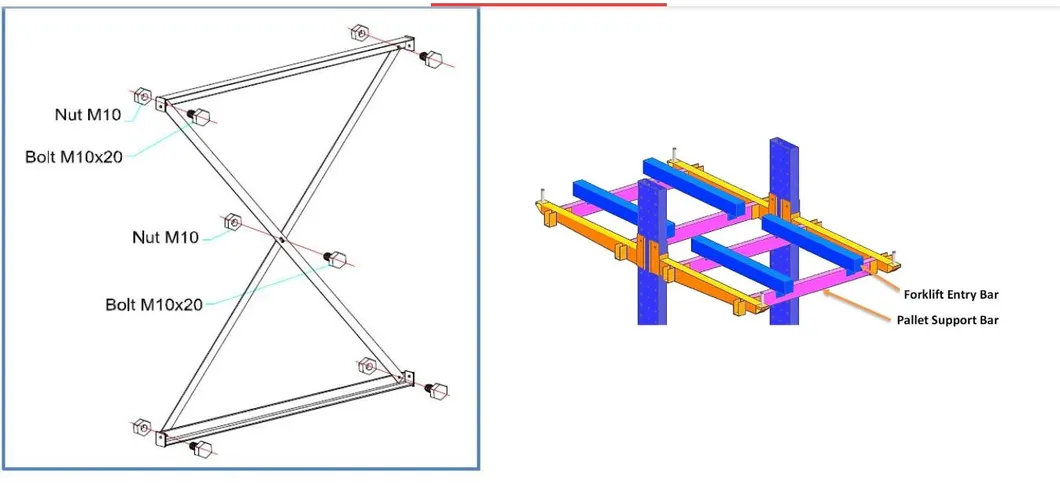

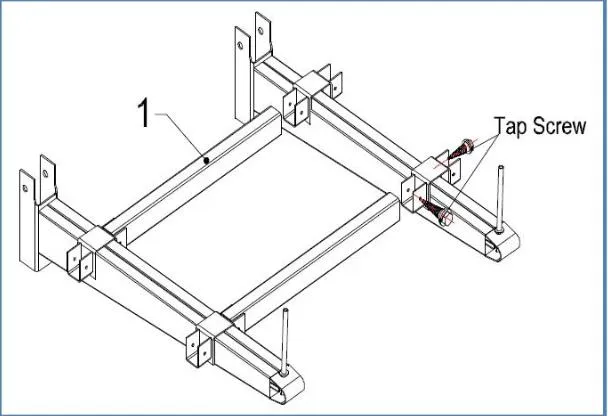

Safety Pallet Support Bar

Cantilever Racks can also store pallets. This is achieved by adding Pallet Support Bars on the arms. Each pallet support is rested on a pair of Saddles as shown in the diagram.

Free Design Solution For Your Warehouse

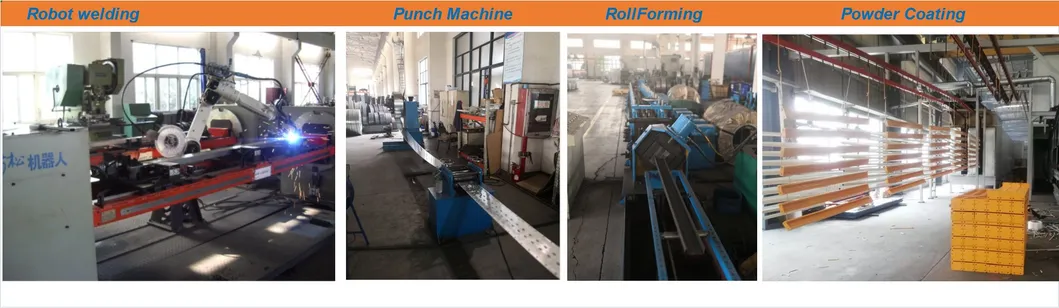

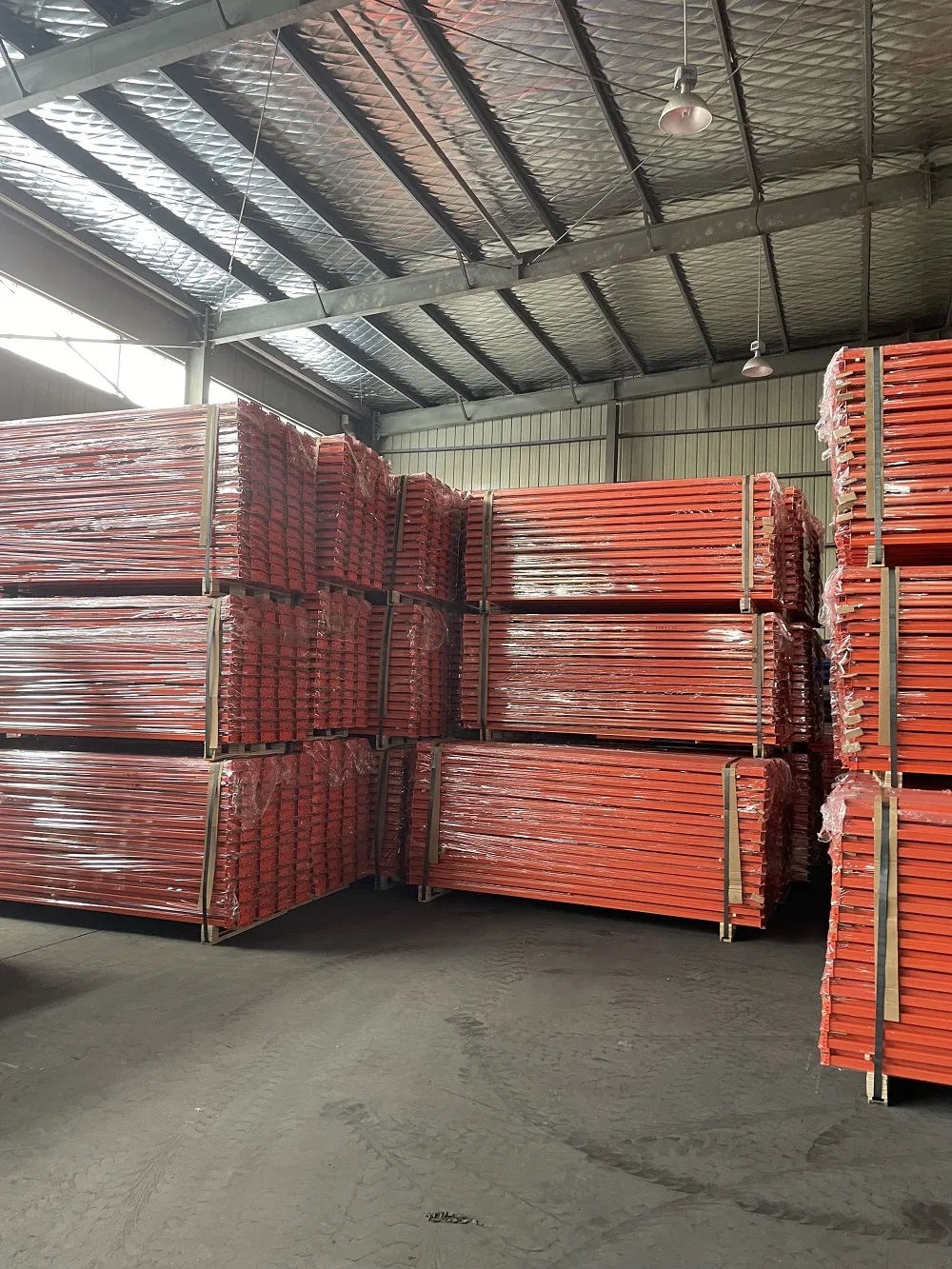

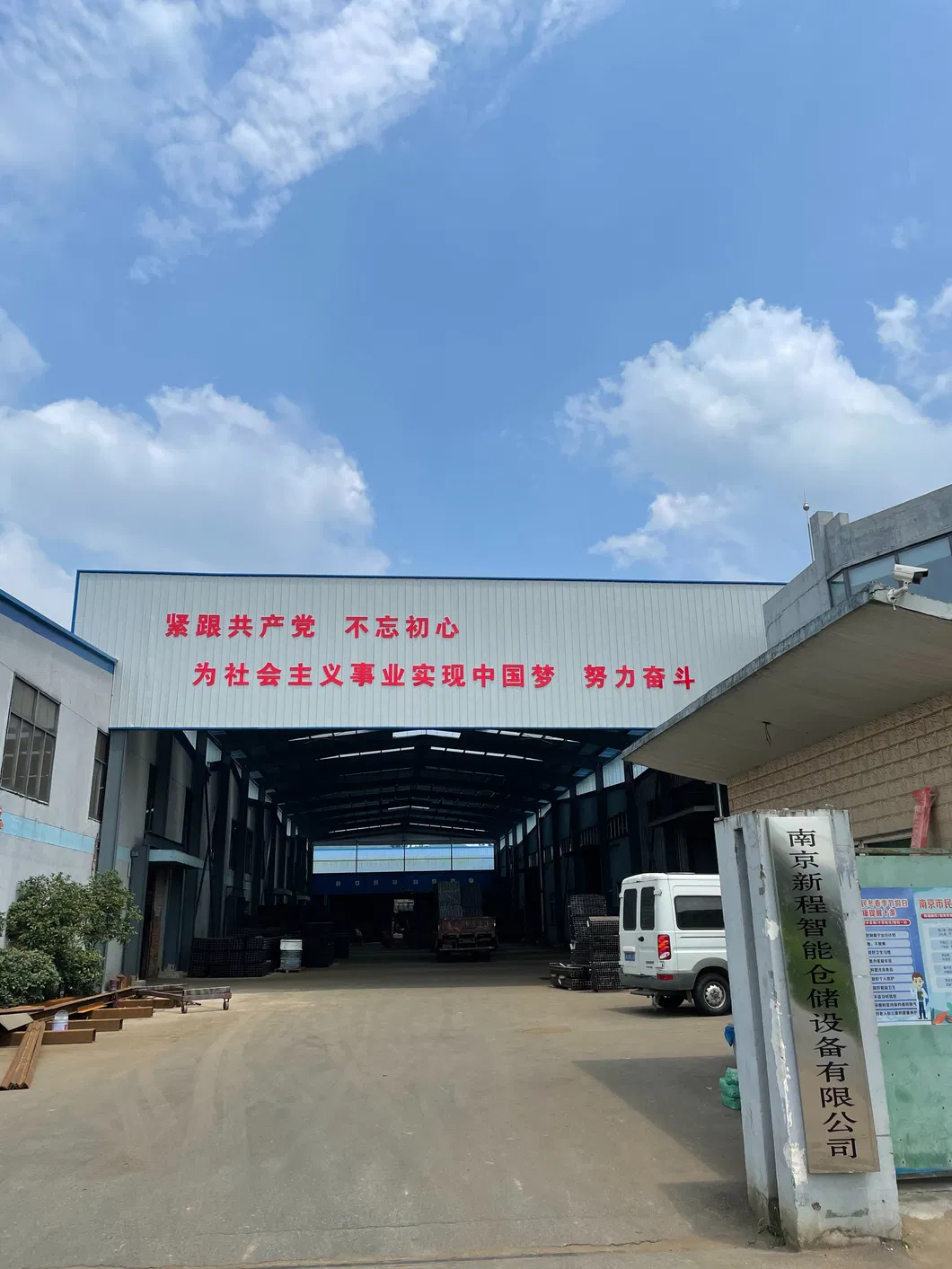

Product & Factory Showcase

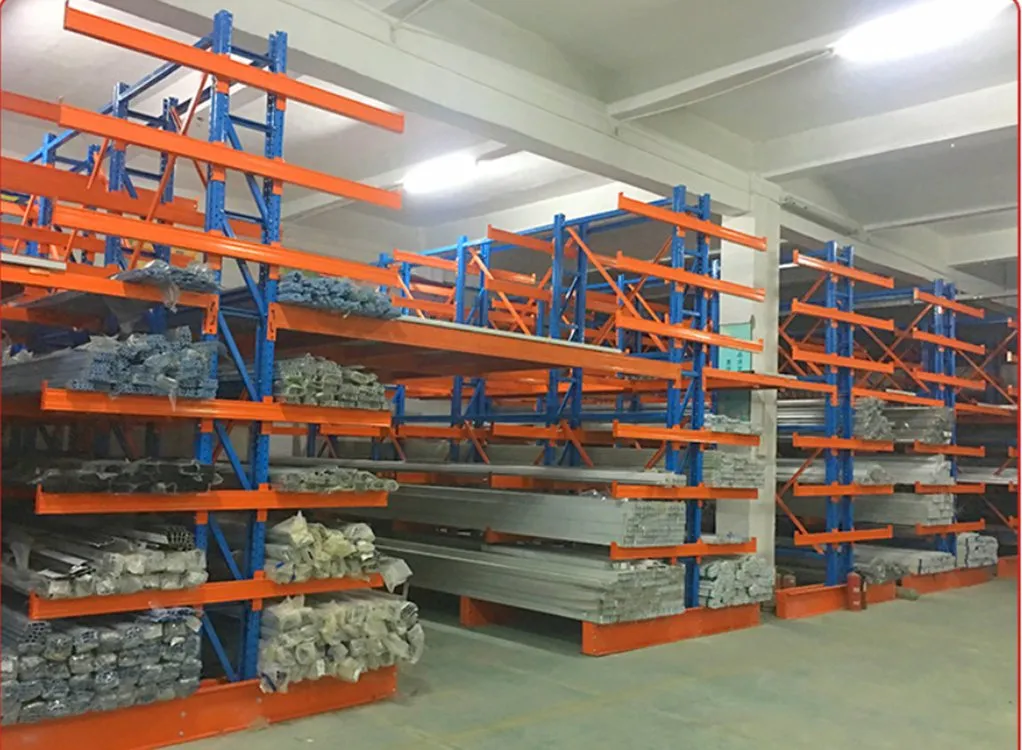

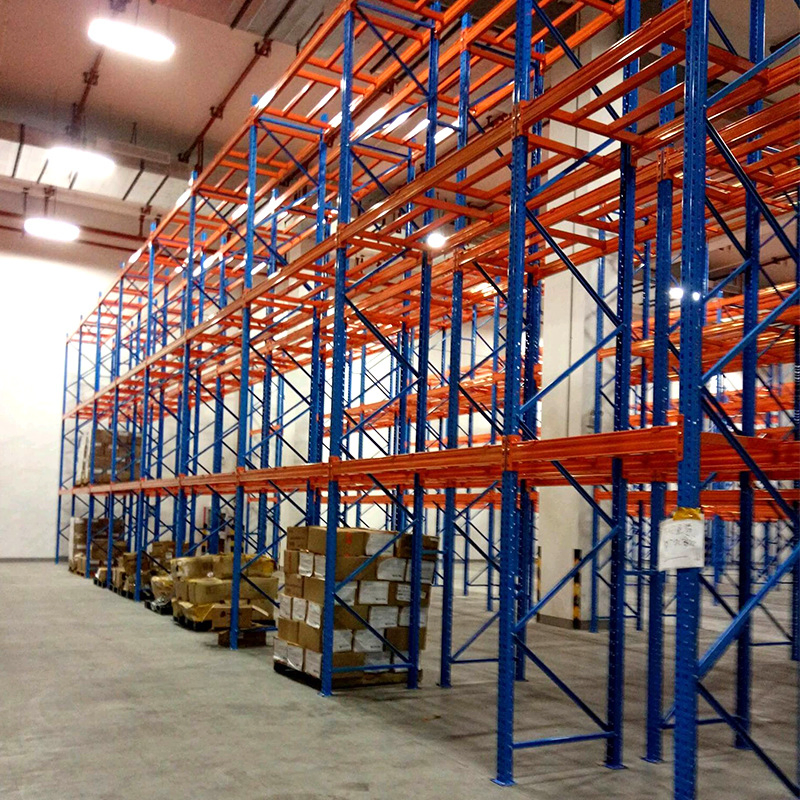

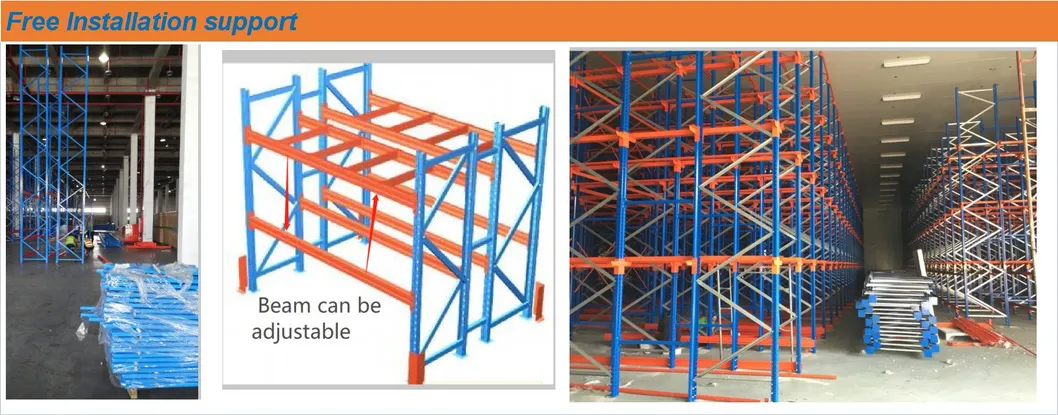

Heavy duty warehouse installation layout

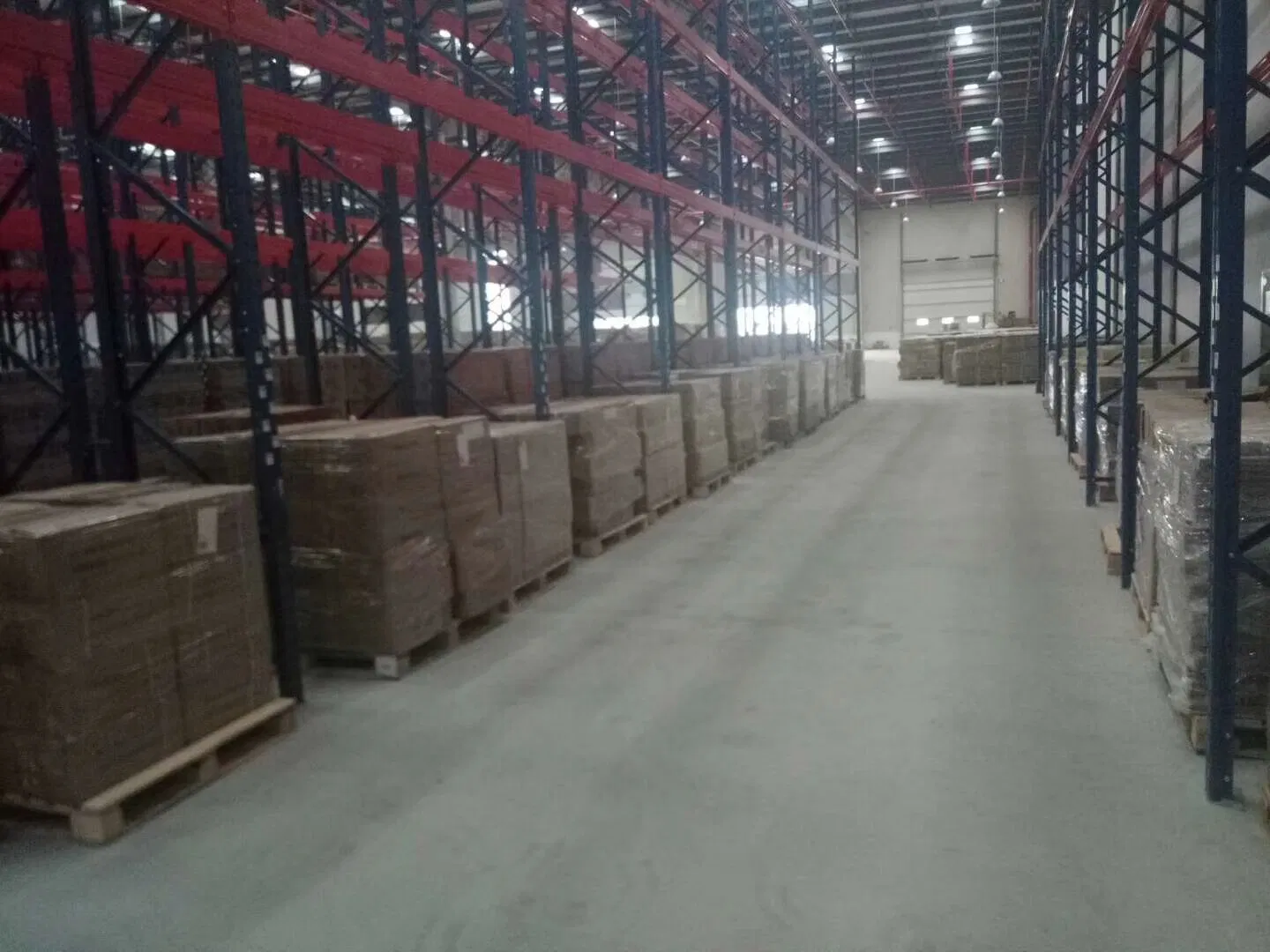

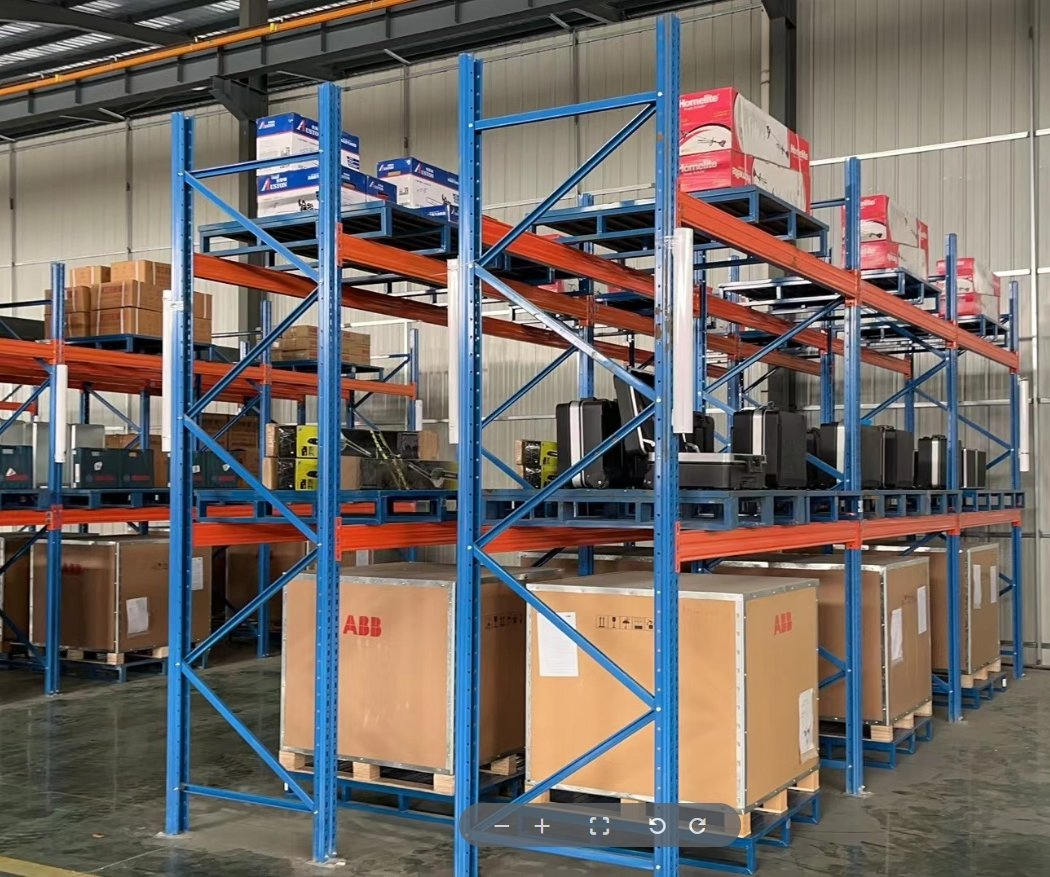

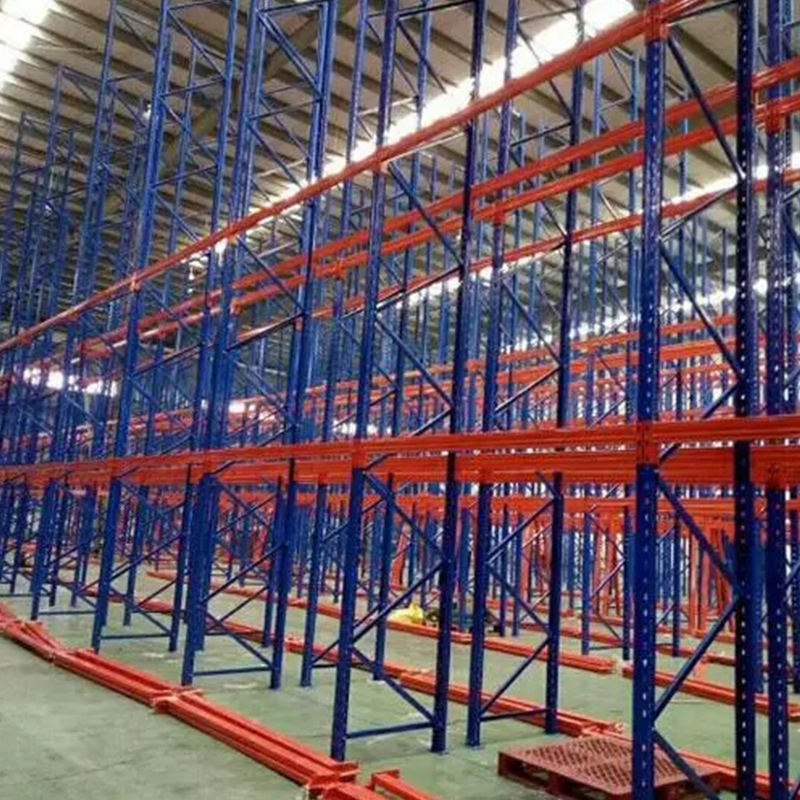

Complete heavy duty storage system installation

Frequently Asked Questions

Q1: Are all racking systems produced in-house?

Yes, we are a direct manufacturer with over 10 years of experience. Our main products include Drive-in Racking, Pallet Racking, Shelving, Radio Shuttle systems, Cantilever Racks, and Mezzanine platforms. All products are 100% produced in our own manufacturing facilities.

Q2: Where are your production and shipping locations?

Our manufacturing plant is located in Jiangning District, Nanjing, Jiangsu, China. It is strategically situated close to Nanjing Port and Shanghai Port for convenient international shipping.

Q3: Do you provide custom design drawings?

Yes. We provide complete one-stop warehouse storage solutions including expert consultation, customized 2D/3D layout design drawings, manufacturing, installation guidance, and technical maintenance. All design and consulting services are free.

Q4: What is the warranty period for your racking products?

We offer a 10-year warranty and lifetime support services for all our racking products. If any quality issues arise due to manufacturing defects, we will provide replacement parts free of charge.

Q5: Do you provide installation services and support?

We have experienced installation teams for global projects. For complex setups, engineers can be deployed to the project site to assist. In addition, we offer quick support via email, phone, and video calls within 24 hours to guide you through the process.

Q6: What raw materials are used in your storage racks?

We utilize premium high-grade Q235 steel for all structural components. This ensures optimal load-bearing strength, elasticity, and full compliance with global safety standards such as ISO9001 and CE certifications.
