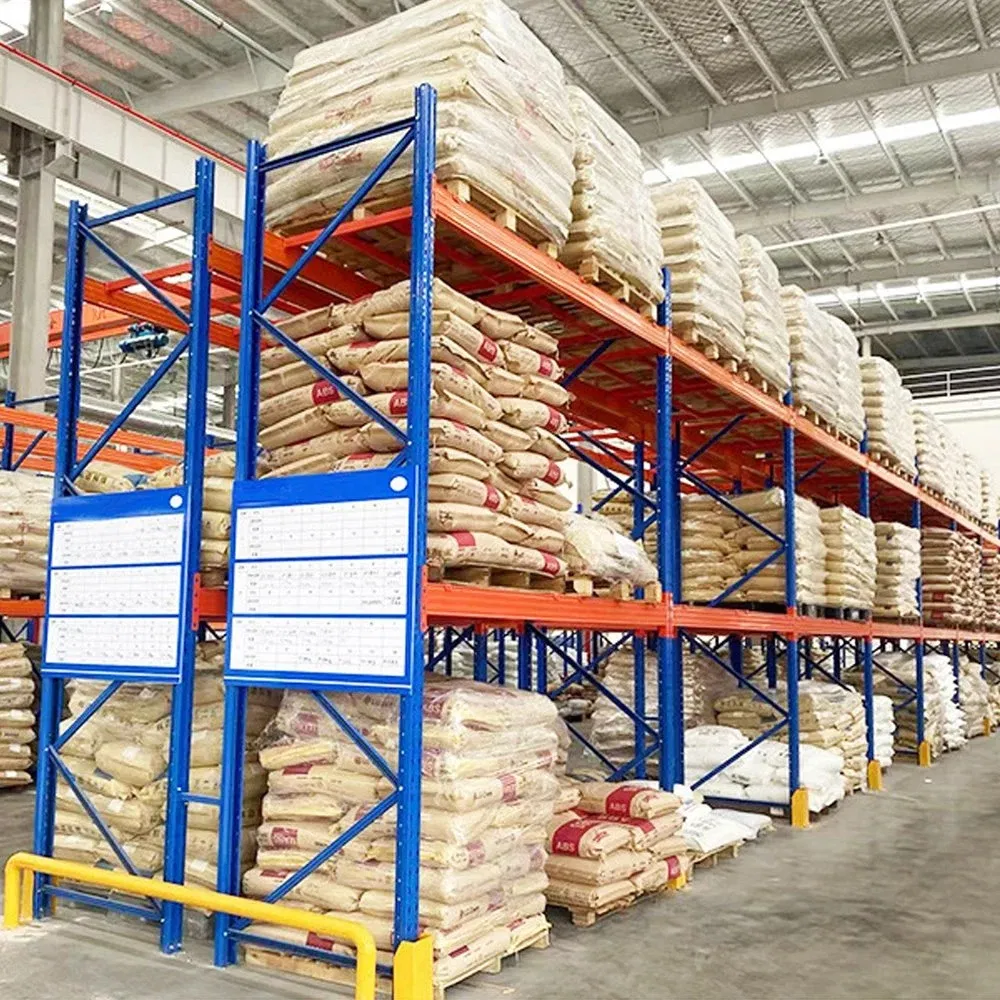

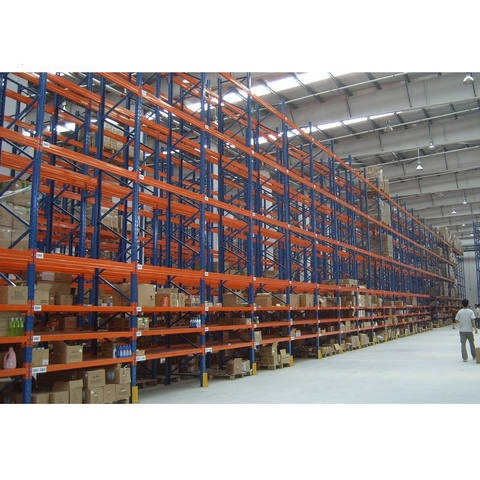

Heavy Duty Shelving Warehouse Rack System Metal Shelves Warehouse Pallet Rack Mould Storage Rack Heavy Duty Storage Racks Heavy Warehouses Rack

Customization:	Available
Usage:	Tool Rack, Beverage, Clothing, Supermarket, Food, Industrial, Warehouse Rack
Material:	Steel

Basic Info

Model NO.

Heavy Duty Rack

Structure

Rack

Mobility

Adjustable

Height

2000-10000mm

Weight

500-3000kg

Closed

Semi-closed

Development

Conventional

Serviceability

Common Use

Width

800-3000mm

Thickness

1.5-3.0mm

Application

Warehouse Storage

Colour

as Customers' Requirements

Transport Package

Knockdown Packing with Air Bubble Film Package

Specification

CE

HS Code

73089000

Production Capacity

5000t /Month

Product Description

Heavy Duty Shelving Warehouse Rack System Metal Shelves Warehouse Pallet Rack Mould Storage Rack Heavy Duty Storage Racks Heavy Warehouses Rack

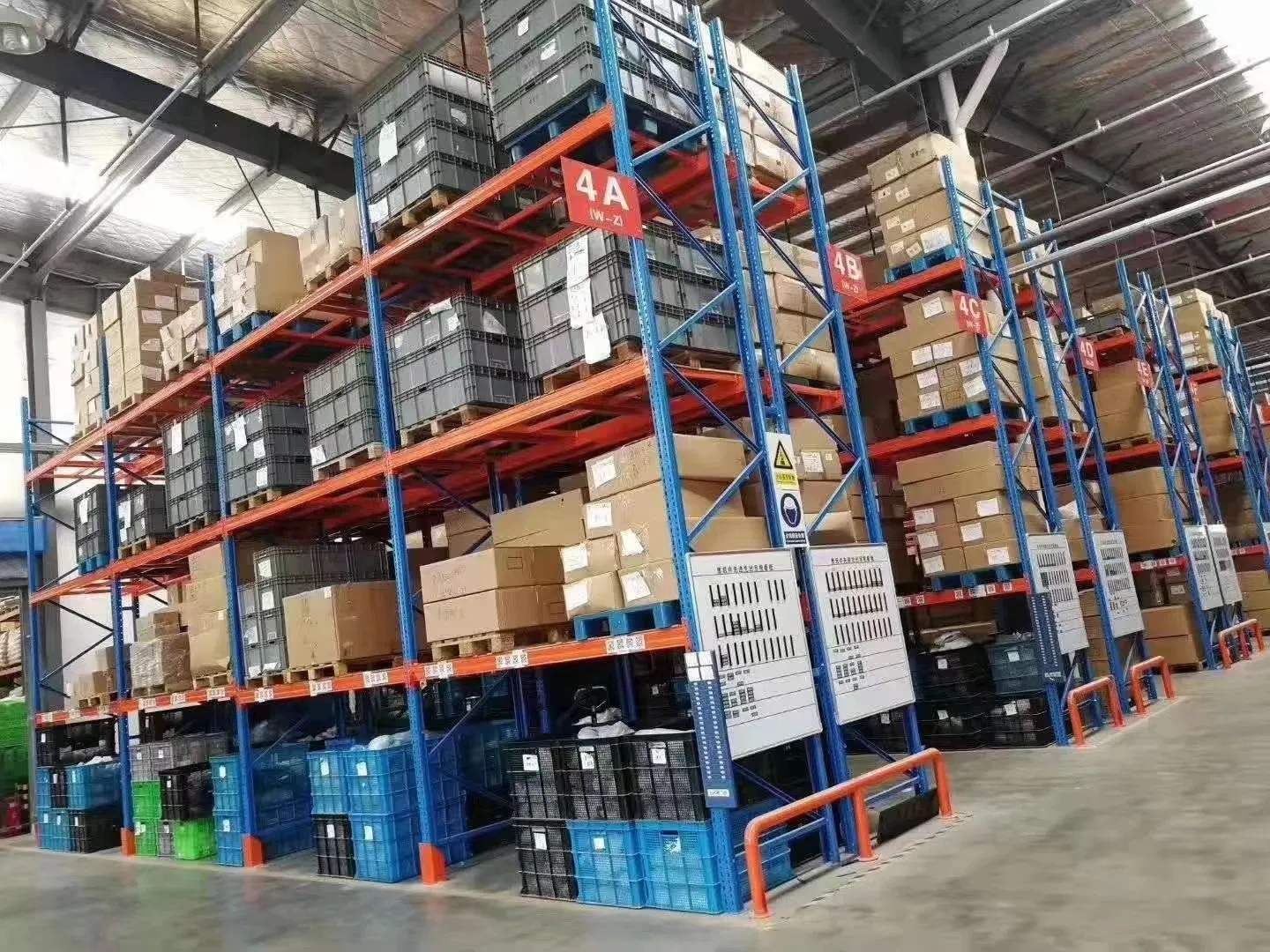

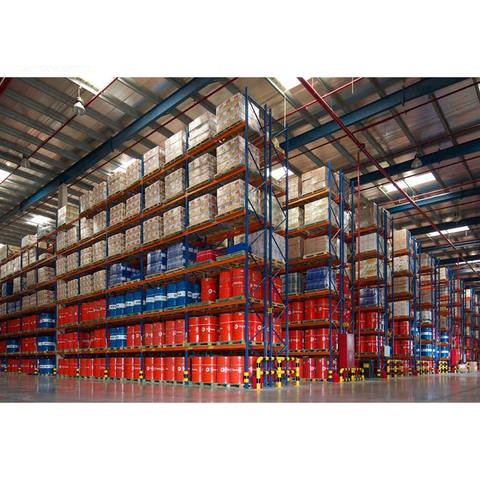

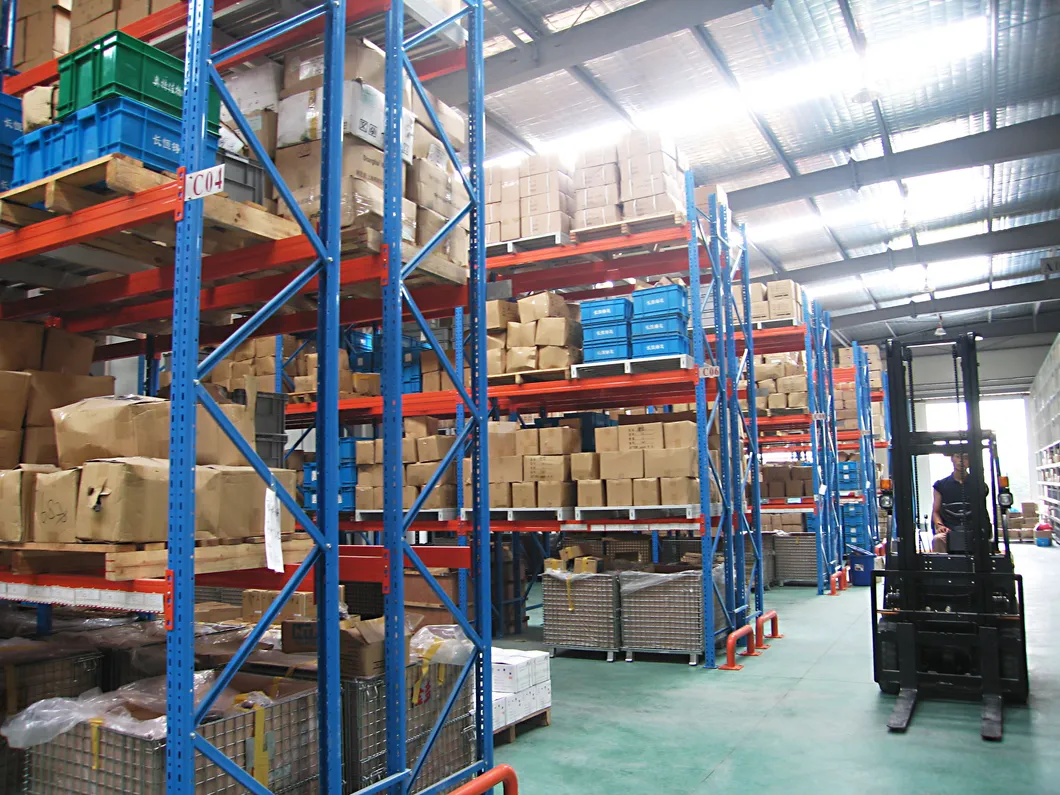

Industrial Heavy Duty Pallet Racks

Industrial Heavy Duty Pallet Racks is also a general term for a class of pallet rack with strong bearing capacity. It has the advantages of low cost, safety and reliability, simple and convenient assembly and disassembly.

It is a kind of racking form widely used in large, medium and small warehouses, and is most widely used in manufacturing, third-party logistics, distribution centers and other fields. They're good warehouse pallet rack solutions.

Product Parameters

Beam Specification	Length (mm) / Load Capacity (kg)
Beam Specification	1500	1800	2000	2300	2500	2700	3000	3300
80×50	3000	2300	1800	1500	1200	1000	800	700
100×50	4000	4000	3000	2400	2000	1750	1400	1100
120×50	4000	4000	4000	3500	3000	2500	2000	1800
140×50	4000	4000	4000	4000	4000	3800	3000	2500

Our Advantages

Key Features

Pallets can be located, accessed and moved individually.
Rapid handling of almost all types of pallet goods.
Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Strength and rigidity prevents compression damage to goods.
Bottom level of pallets can be stored on the floor, lowering structure costs.

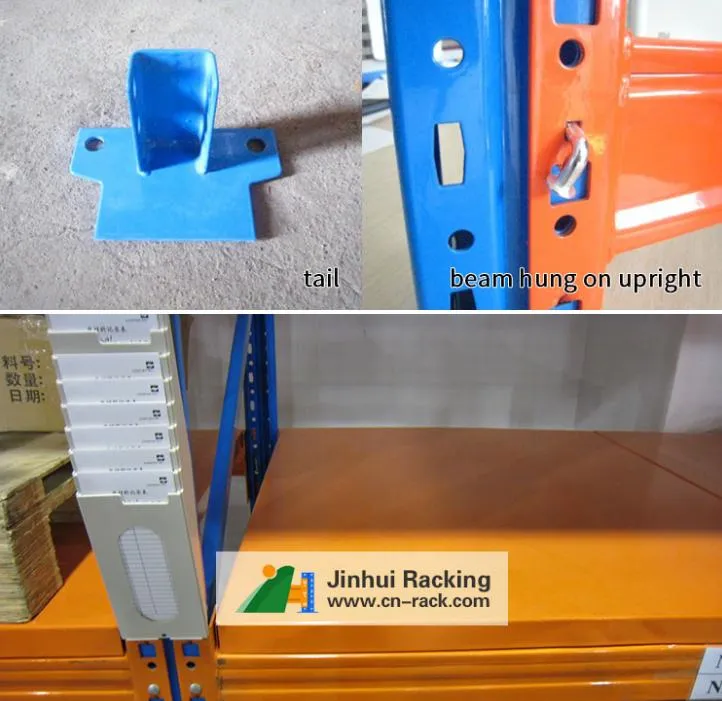

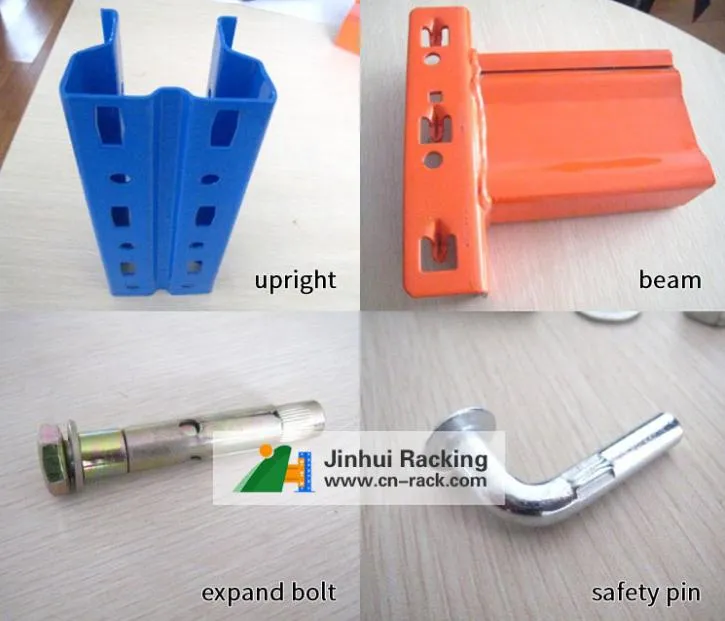

Main Parts Specs

Upright column section: 80*60*2.0, 90*60/68/78*2.0-3.0, 100*68*2.0-3.0, 120*95*2.0-3.0mm, etc.
Box beams section: 80*50*1.5, 90*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 130*50*1.5-2.0, 140*50*1.5-2.0, 150*50*1.5-2.0, 160*50*1.5-2.0, 180*50*1.5-2.0, etc.
Accessories: Horizontal & diagonal braces, upright foot plates, safety pins, bolts & nuts, anchors and all necessary accessories.

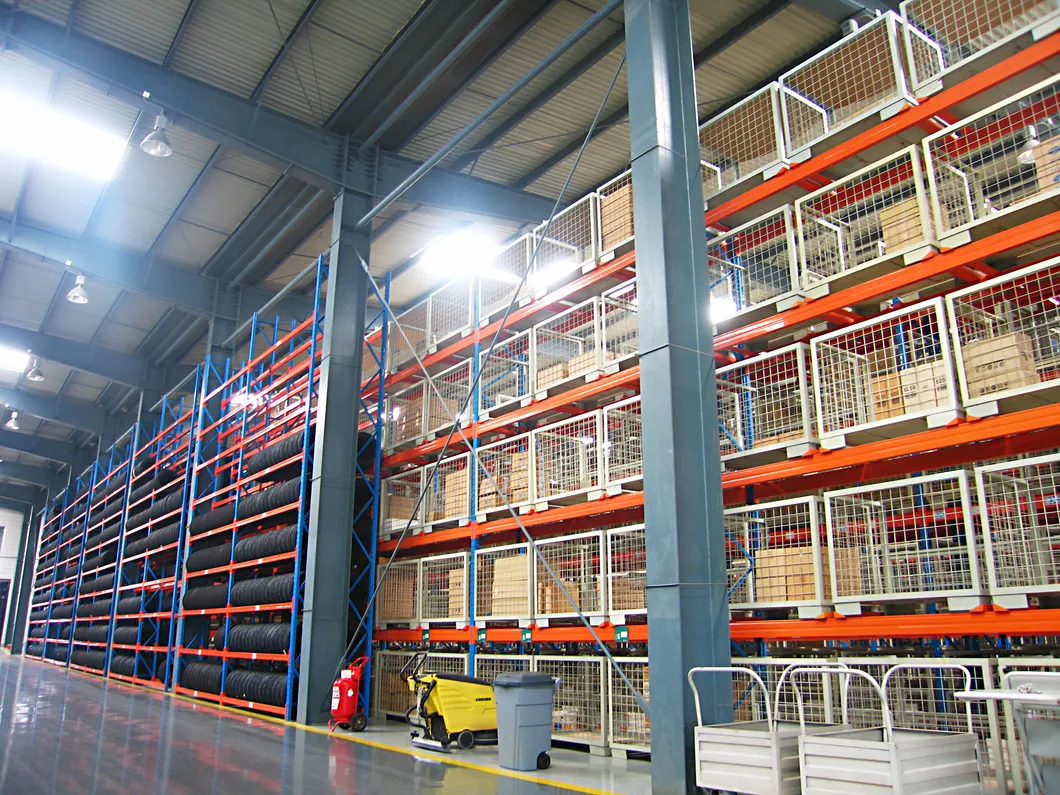

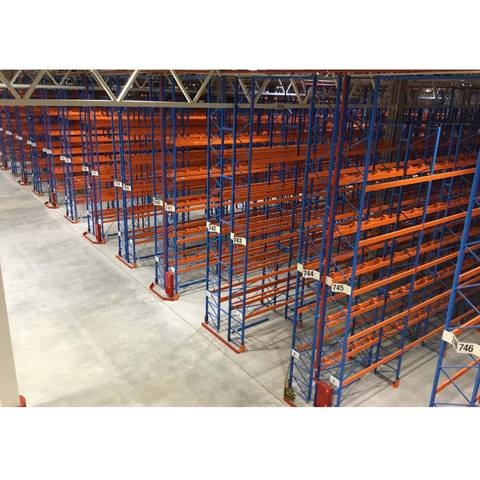

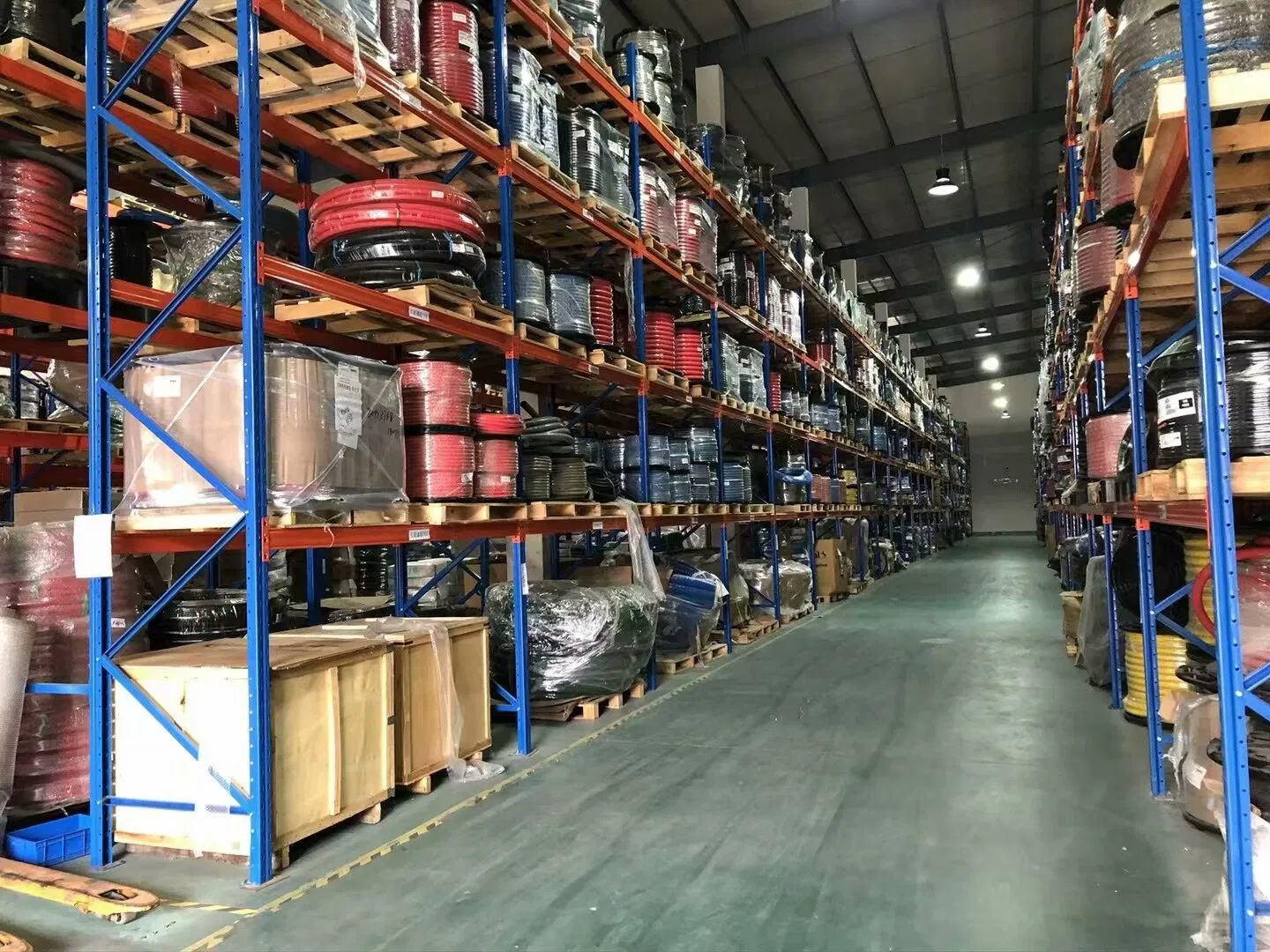

Detailed Photos

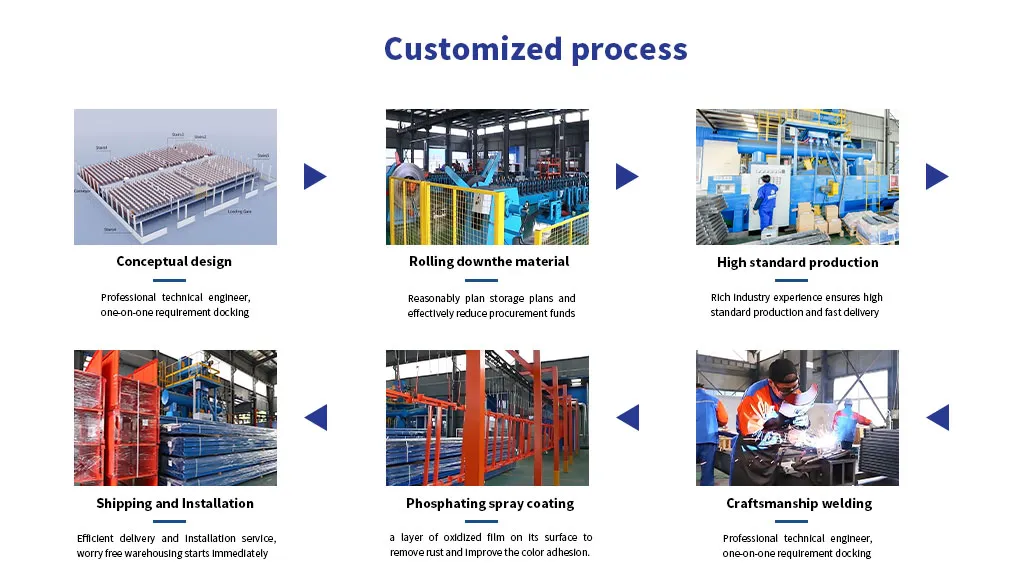

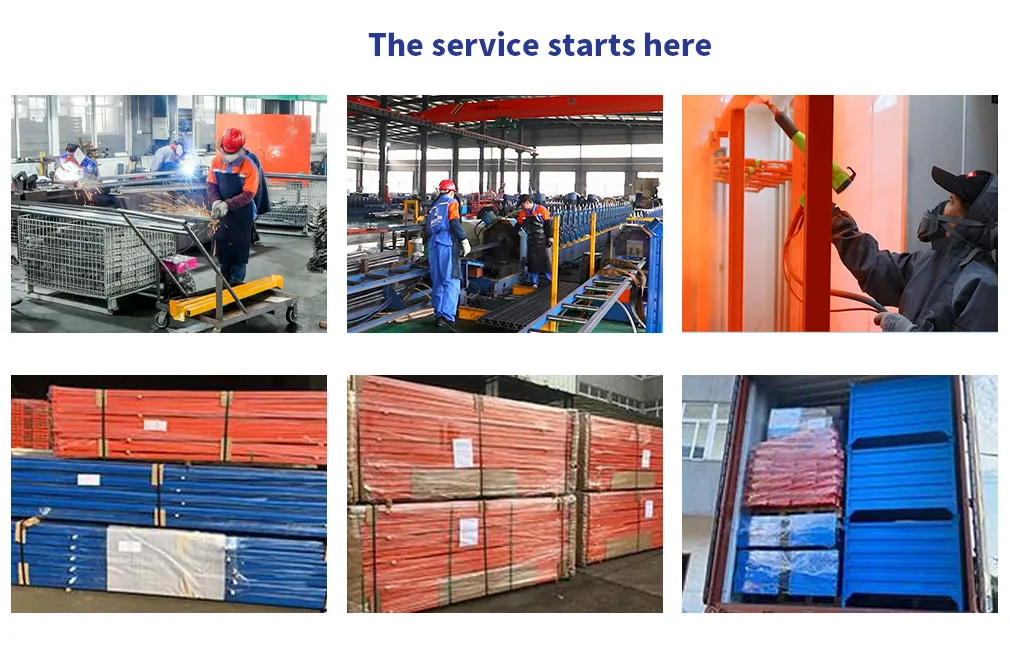

Production & Workshop View

Frequently Asked Questions

Are you a factory or trading company?

We are a manufactory for storage racks.

What is the raw material of your products?

The material we choose is Q235 steel.

What is the packaging of the products?

Standard export package. All parts packed by steel belt and covered by plastic film.

What is the term of payment?

Our accepted payment options are (1) T/T payment and (2) L/C at sight.

What is your delivery time?

It depends on the order quantity and racking types, normally is 15 to 30 days after receipt of the deposit.

Are samples available?

Yes. Short sections of samples could be provided; they are free of charge, but international courier costs are to be borne by clients.

Other Products

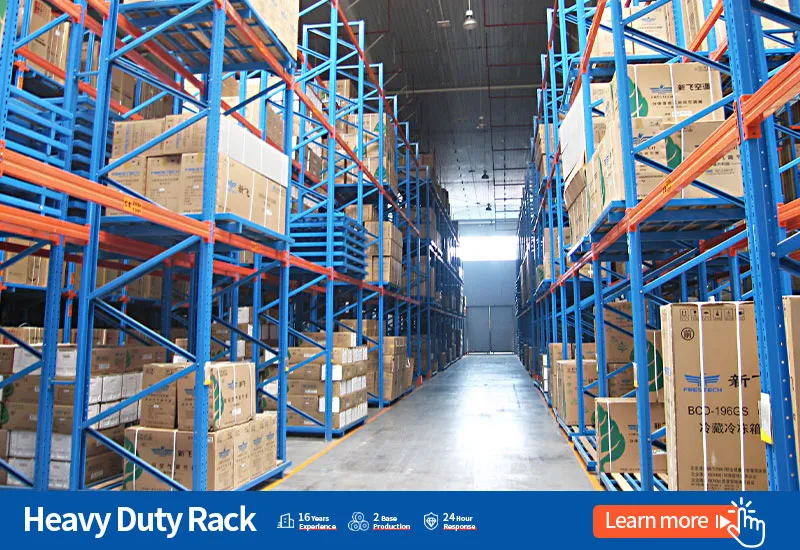

Heavy Duty Warehouse Pallet Racking System

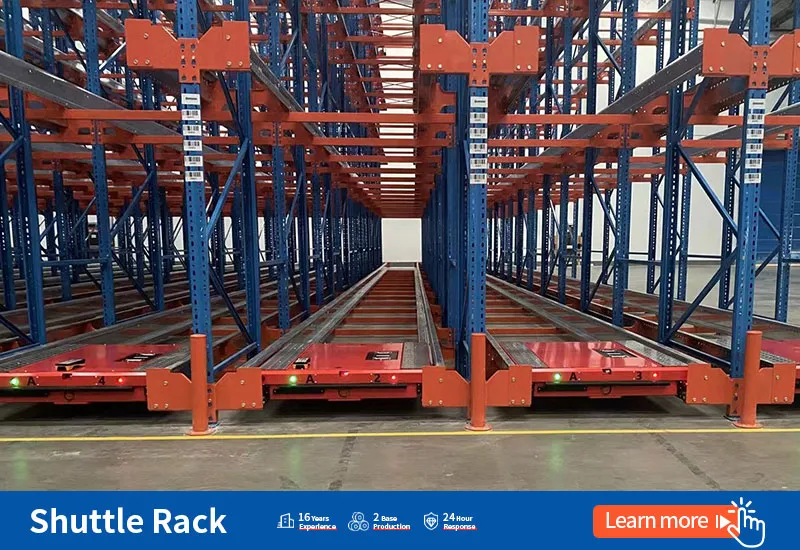

High Density Shuttle Rack selective Racking

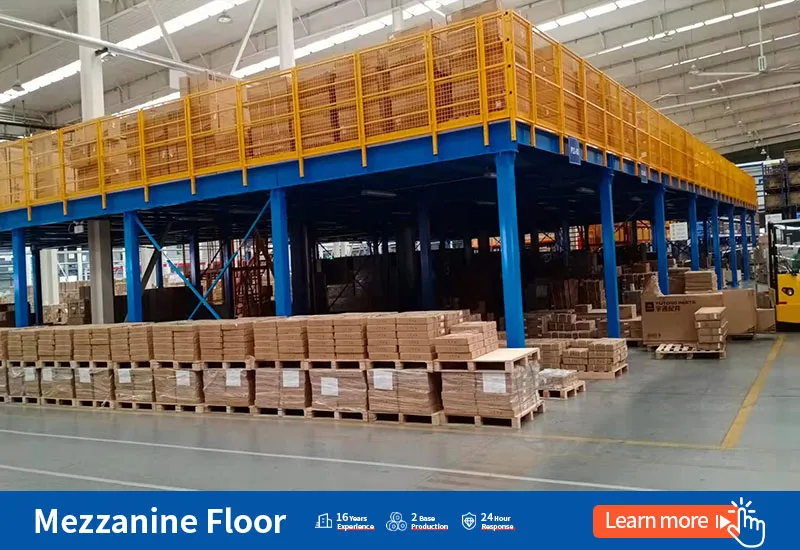

Warehouse Steel Mezzanine Floor Storage Rack

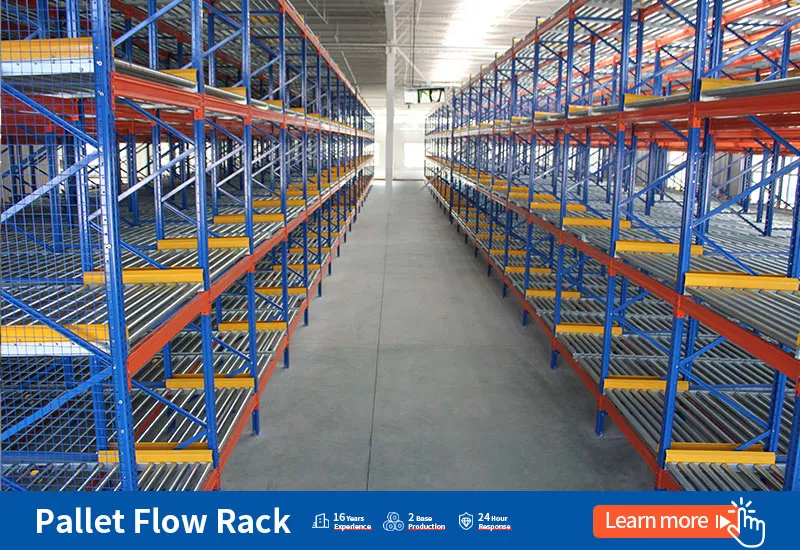

Warehouse Steel Live Pallet Flow Racking

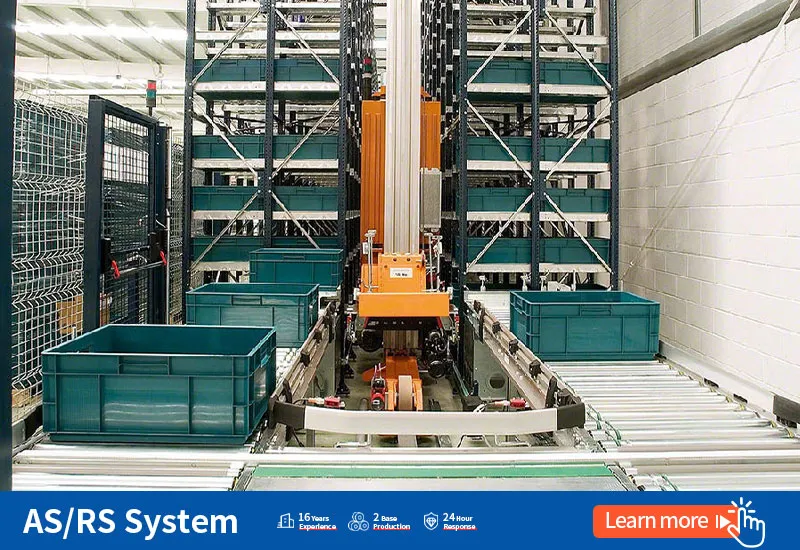

Warehouse Systems Automation Equipment Mezzanine Racking
