| Product Specifications | |||
|---|---|---|---|
| Product Name | Heavy Duty Cantilever Racks | Usage | Warehouse Storage |
| Place of Origin | China | Color | Blue, Orange |
| Type | Selective Pallet Rack | Surface treatment | Powder Coating |
| Material | Steel | Size | Customer Size |
| Feature | Corrosion Protection | Packing | Customize |
| Use | Warehouse Rack | Certification | ISO9001/CE |
| Weight Capacity | 2000-5000kg/layer | Structure | Assembled |
| Width | 60/80 cm or customize | OEM&ODM | Supported |
| Height | Max 12000mm | ||

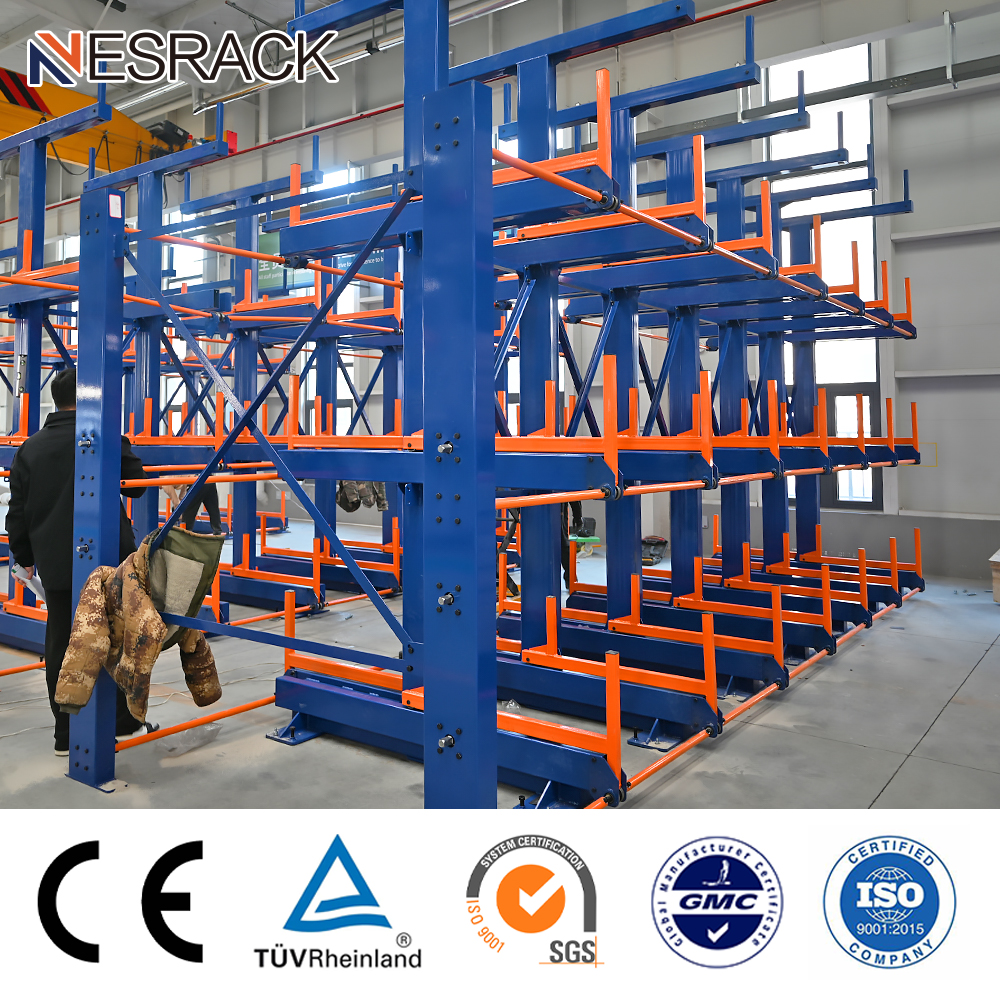

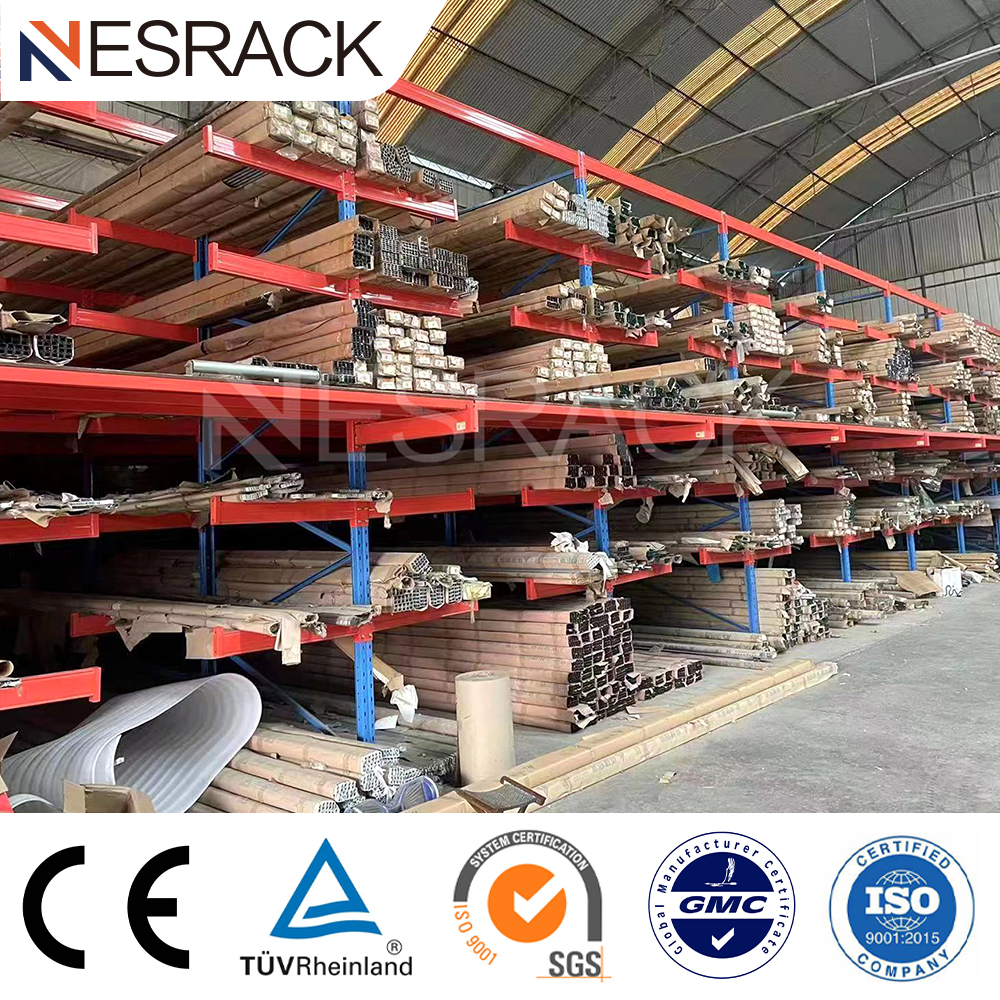

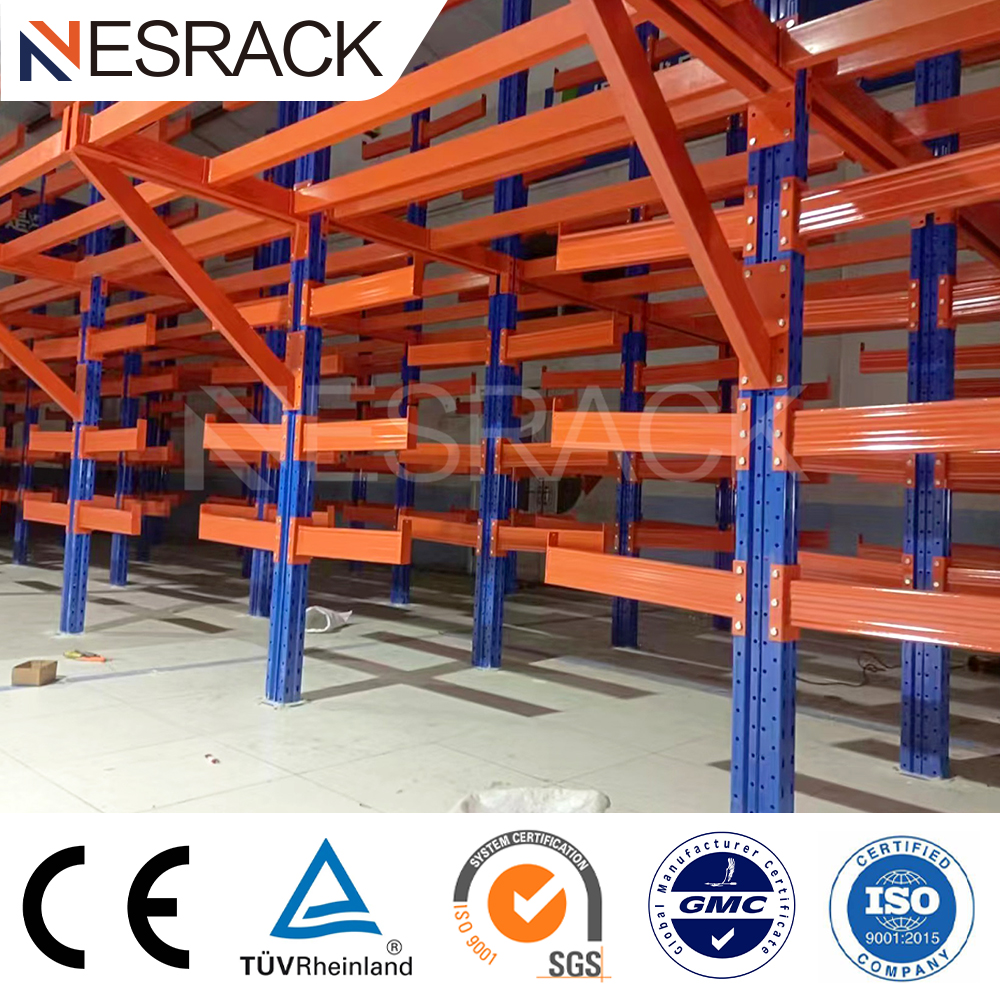

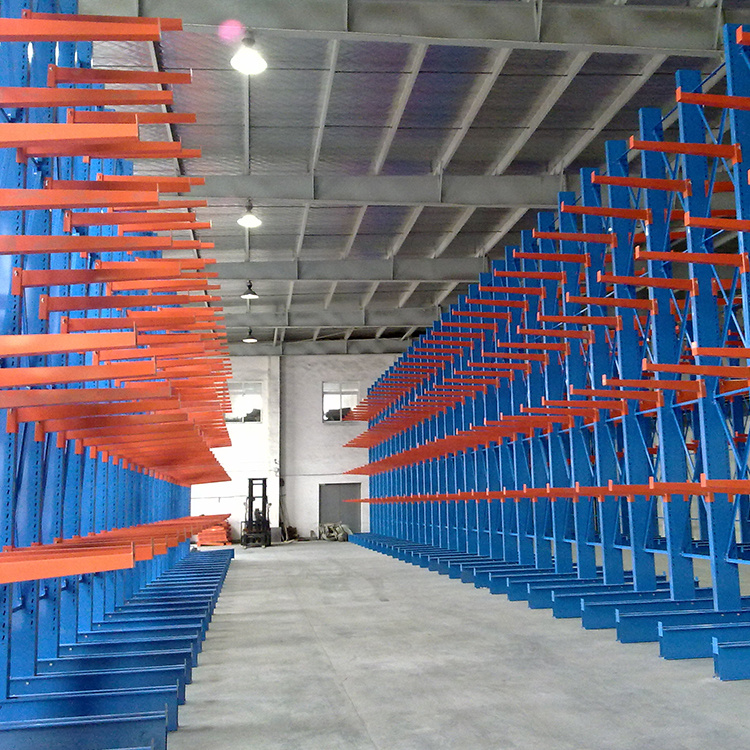

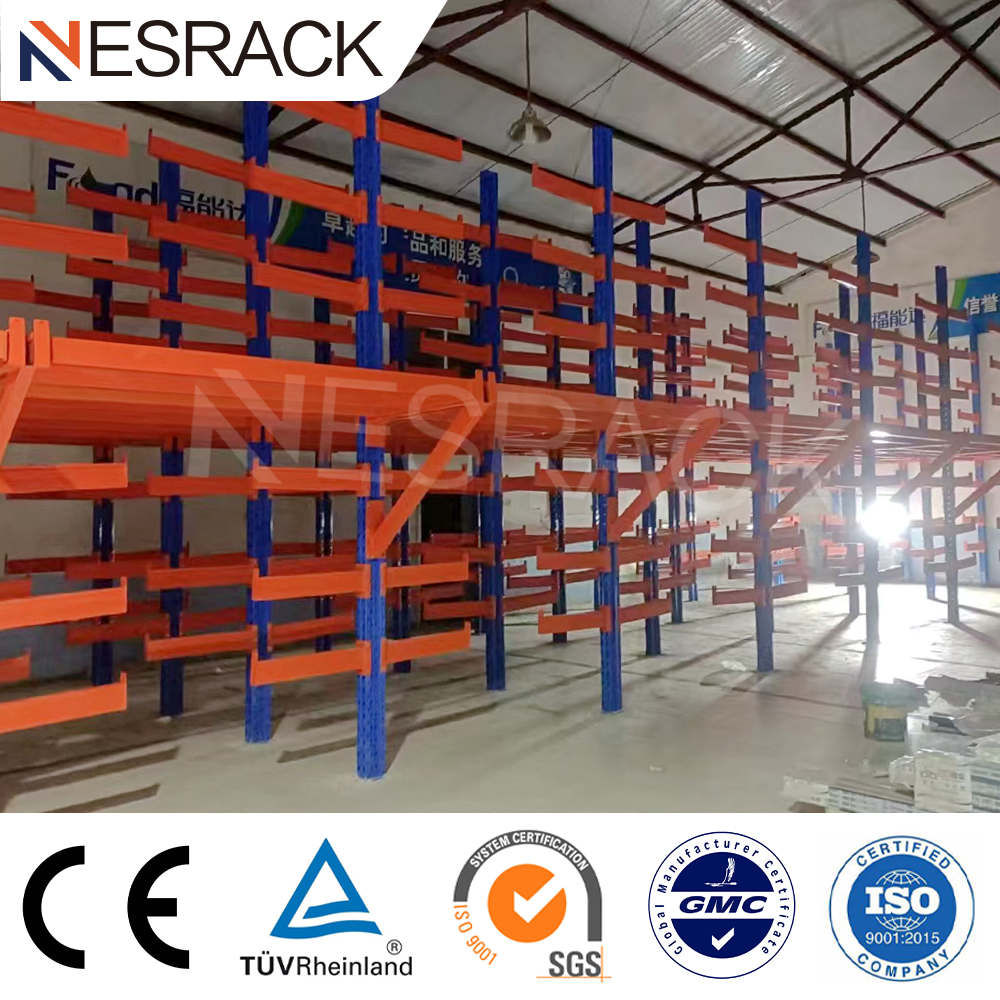

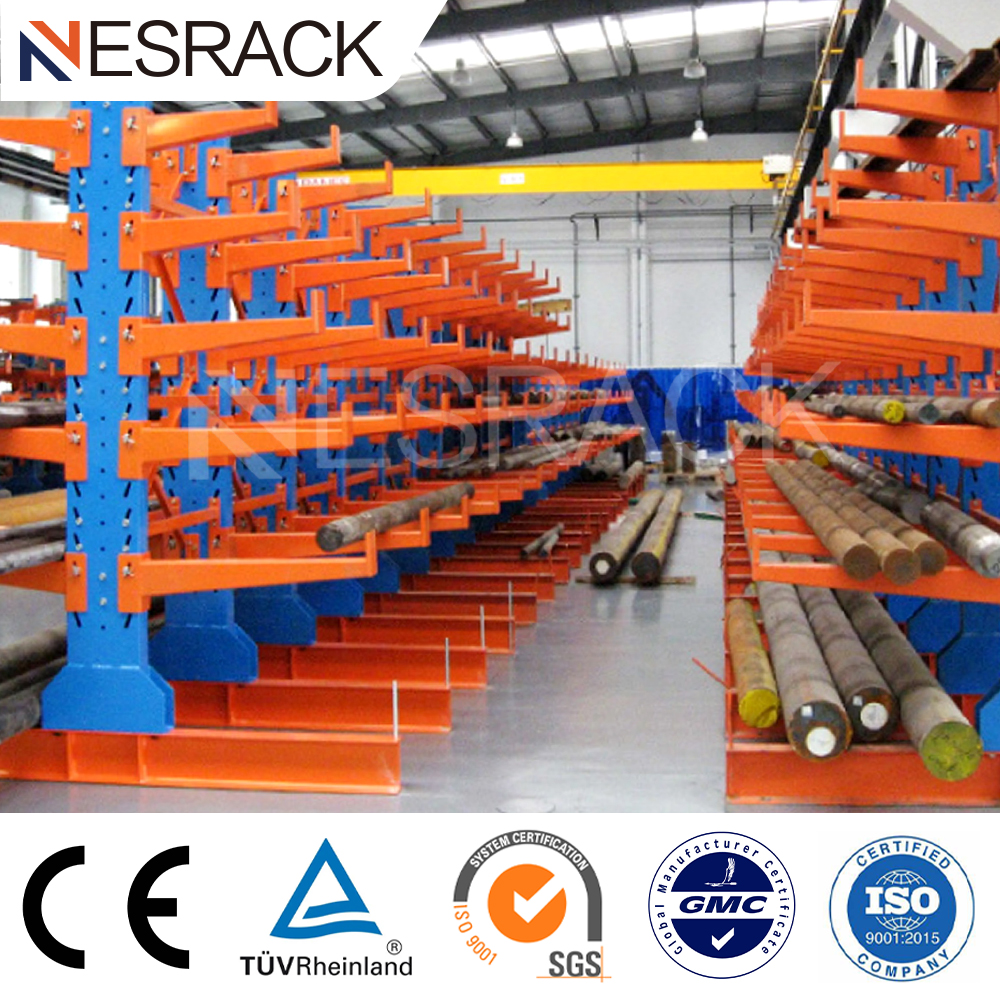

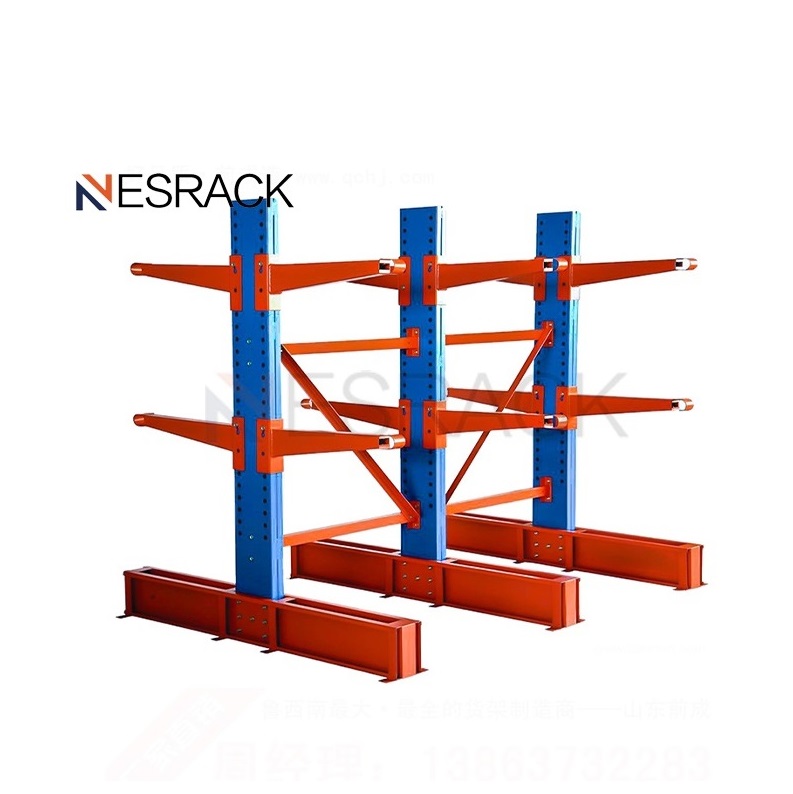

Cantilevered shelves are suitable for storing long-term and irregular goods. The front cantilever has a light structure and strong load-carrying capacity, which can greatly improve the utilization and working efficiency of the warehouse when storing irregular or special length materials.
| Column Height | 3 Layers Beam | 4 Layers Beam | 5 Layers Beam |
|---|---|---|---|
| 2000 | 3500 | 2500 | 2100 |
| 2500 | 3500 | 2500 | 2100 |
| 3000 | 4000 | 3600 | 2900 |
| 3500 | 3100 | 2400 | 2100 |
| 4000 | 3100 | 2400 | 2000 |
| 4500 | 3000 | 2400 | 2000 |
| 5000 | 3000 | 2300 | 2000 |
The frame of European 50mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates and screw.
The longest beam can be 4.5mm, and the max loading capacity can be 4000kg/per level, other specifications please contact us for details.
We have focused on top quality storage and logistics equipment for over 15 years in China. With 15 years of industry experience, we have become an excellent pacesetter in the warehouse racking industry. Today, we are one of the leading producers of quality pallet racking and other racking equipment, such as: drive-in rack, radio shuttle rack, cantilever rack, mezzanine, steel platform, medium duty shelving, and light duty shelving. As a global supplier in heavy duty, medium duty, and light duty racking equipment and related accessories, we aim to create added value for customers around the world.
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide those details so that we can quote the most cost-effective option.
A: We feature a professional design team and adequate production capacity. Our products have achieved ISO and CE certificates, complying fully with AS4084, RMI, and FEM standards.
A: The high-strength material we select is standard Q235/Q345 grade steel.
A: Design drawing → Confirm drawing → Quotation → Proforma Invoice (PI) → Confirm PI → Arrange 30% deposit → Manufacture → QC inspect → Pay balance → Shipping.
A: We use standard export packaging. All racking parts are tightly packed with steel belts and fully covered with protective wrapping film.
A: The standard MOQ is normally one 20ft container, which may also vary depending on the custom sizes of your products.
A: We accept payment via TT, L/C at sight, etc. The delivery timeframe is normally 3 to 4 weeks after receipt of the deposit.
