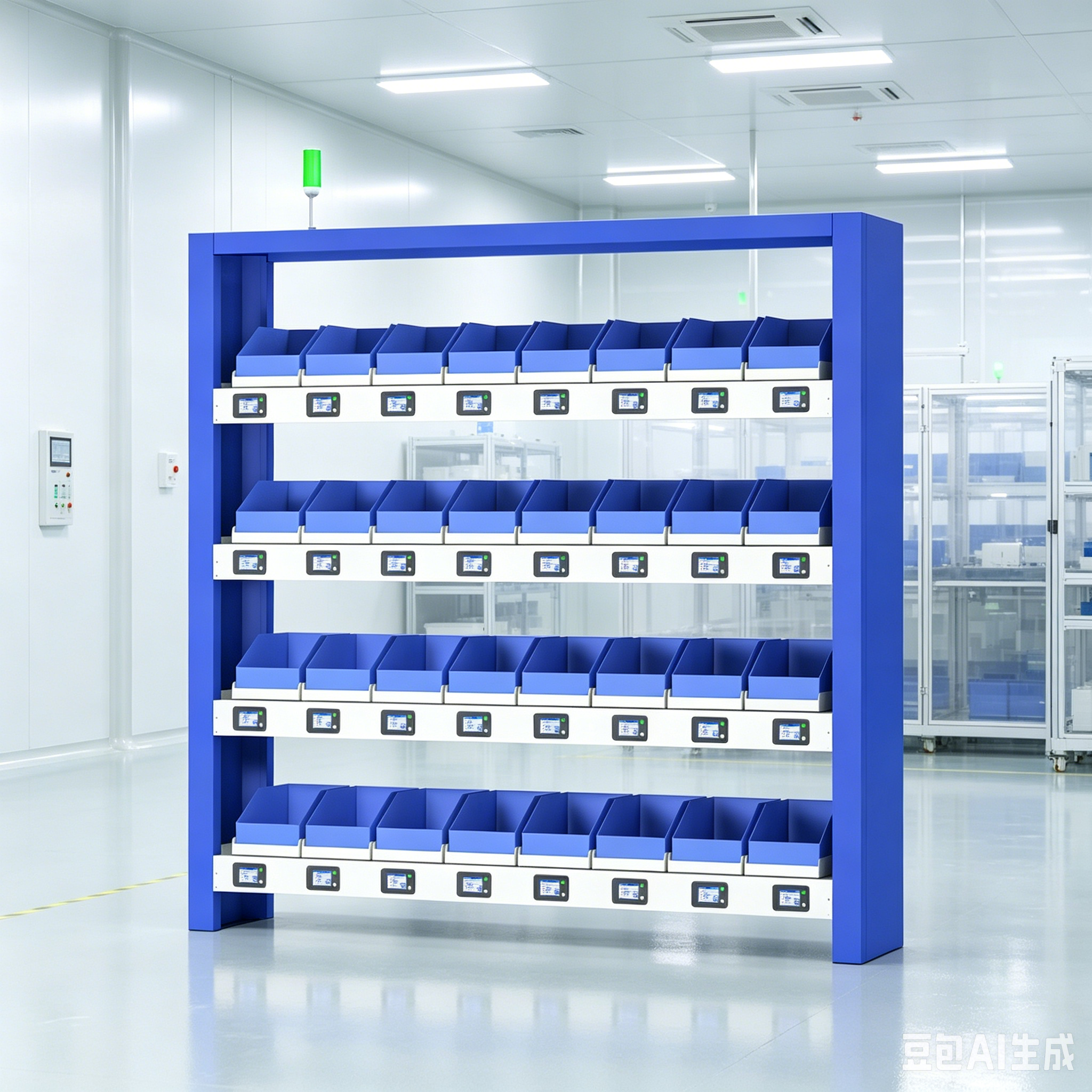

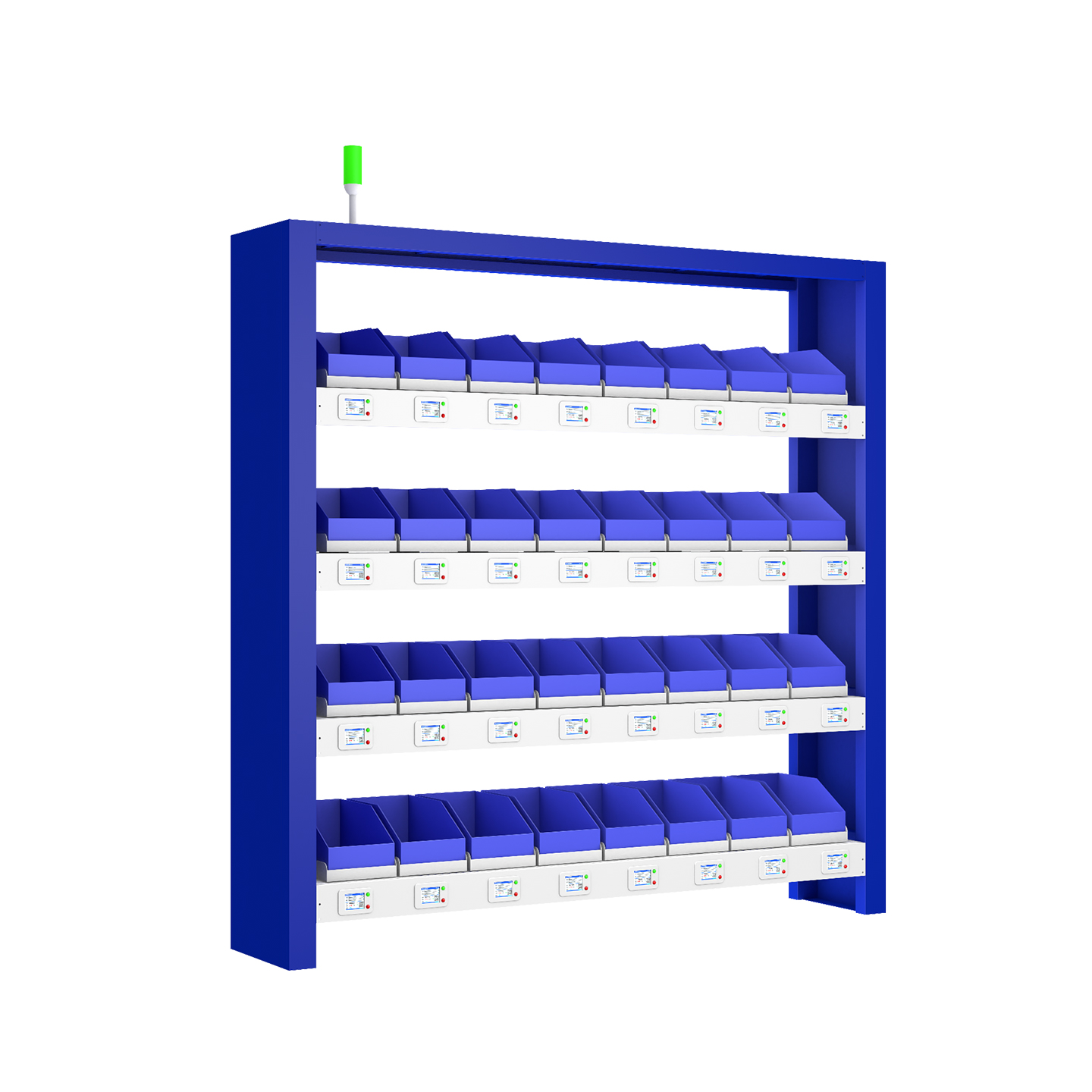

Lush Rack
1 / 5
| Item | Value |
|---|---|
| Material | Metal |
| Type | Warehouse storage shelves |
| Place of Origin | Jiangsu, China |
| Number of Shelves | 4 |
| Shelf Depth | 400mm |
| Shelf Height | 345mm |
| Shelf Type | Intelligent Weight Shelf |
| Shelf Width | 2000mm |
| Feature | Intelligent weighing, unmanned, line edge |
| Model Number | AD-ZNHJ-32 |
| Assembly Method | Quick Installation |
| Furniture Back Type | Backless |
| Installation | Floor Mount |
| Item Shape | Rectangular |
| Orientation | Vertical |
| Shelf Structure | Solid Shelf |
| Surface Treatment | Polished |
| Usage | Warehouses |

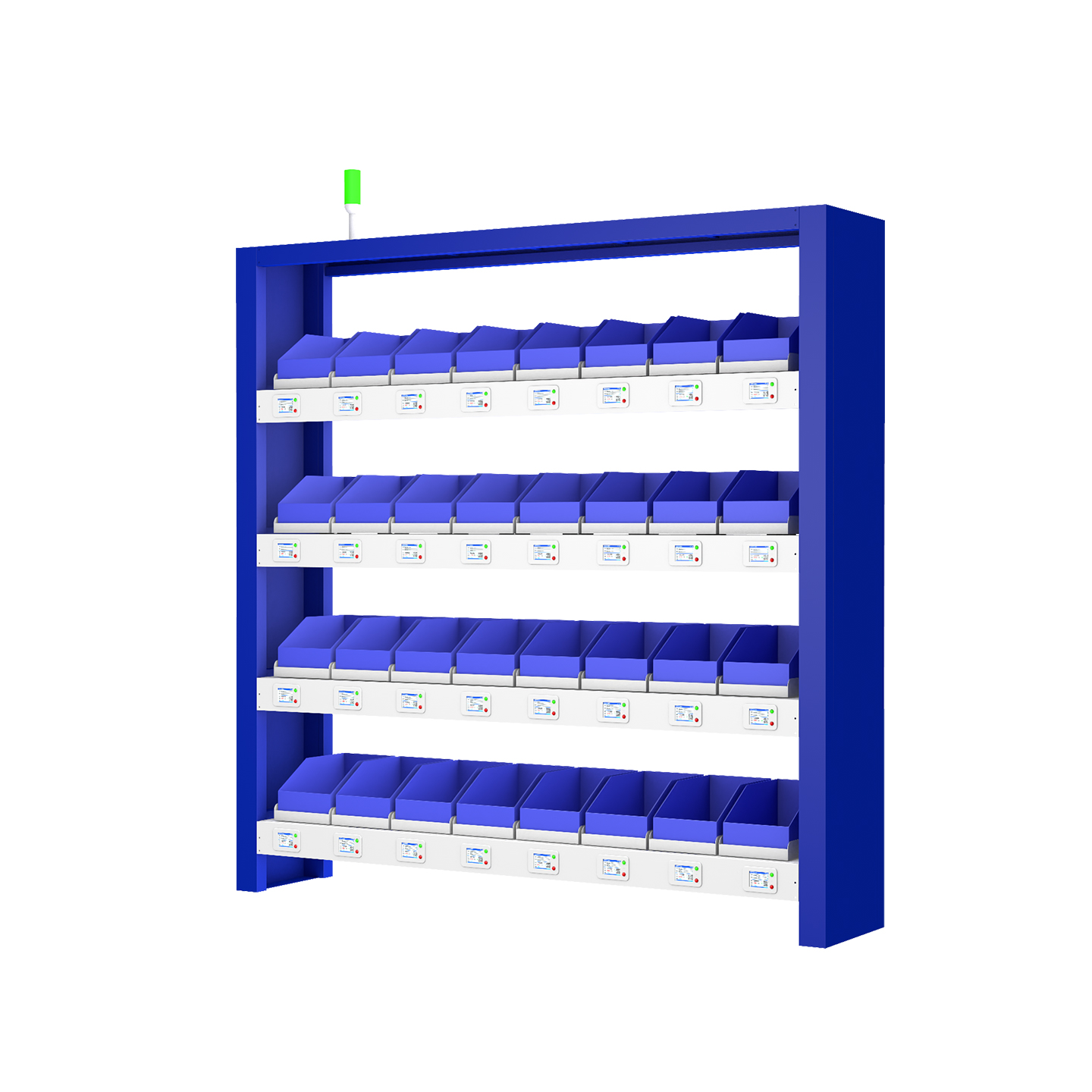

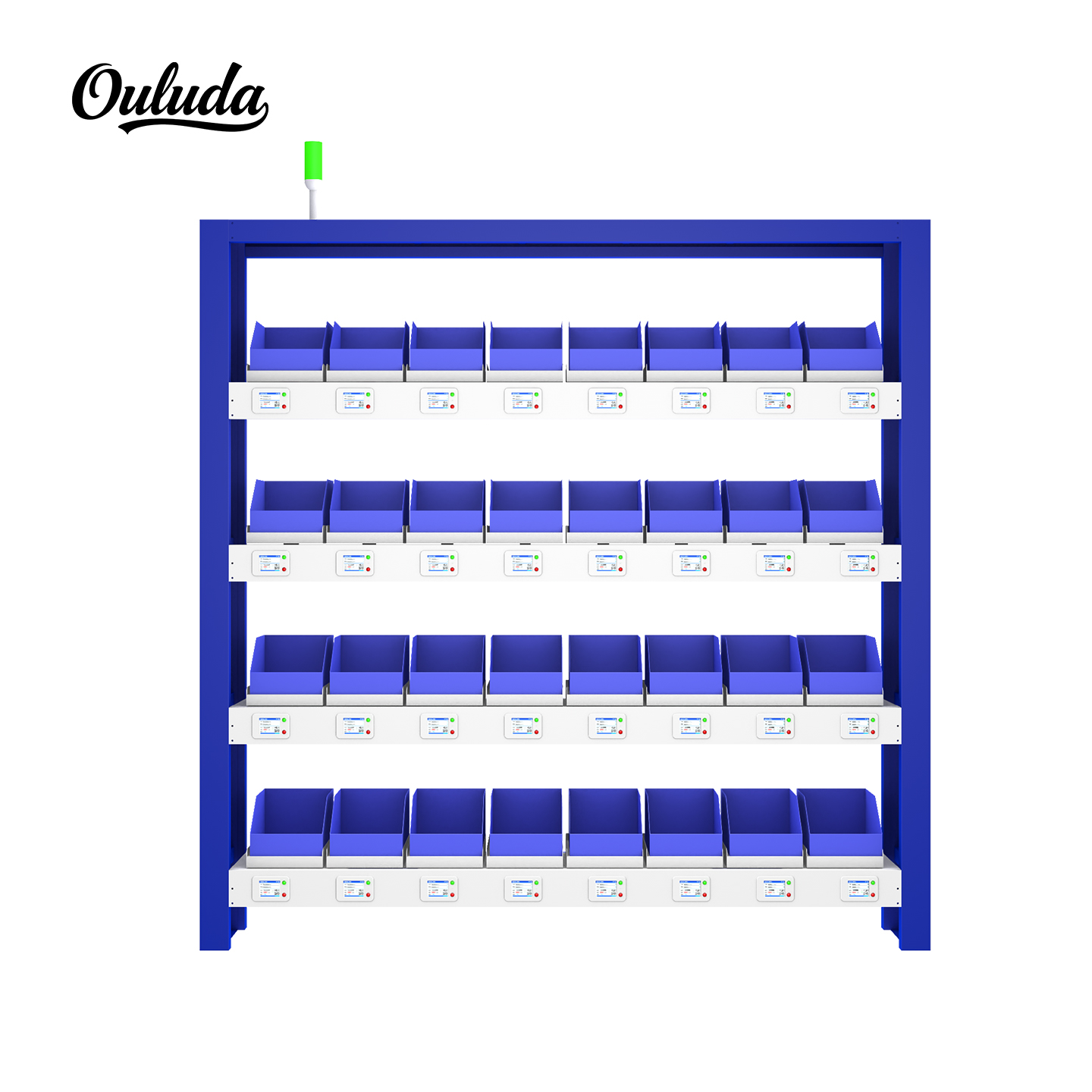

| Product Name | Intelligent Weight Shelf |
| Size | 2000*400*2000mm |
| Weighing Range | 10/20/30kg |

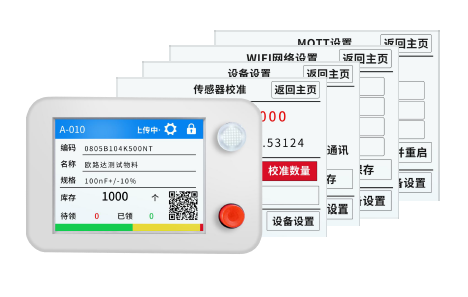

| Touch Screen | 2.8 inches |
| Min Weighing Range | 1/2/5g |
| Communication Interface | RJ45 Ethernet, RS485 serial port |
| Shelf Layers/Quantity per Layer | 4/8 |
| Operating Temperature & Humidity | -10~40℃; 0~80%RH |
| Cargo Locations | 32 |
| Cabinet Material | Cold rolled steel plate with electrostatic spraying |
How does the Intelligent Weight Shelf system work?

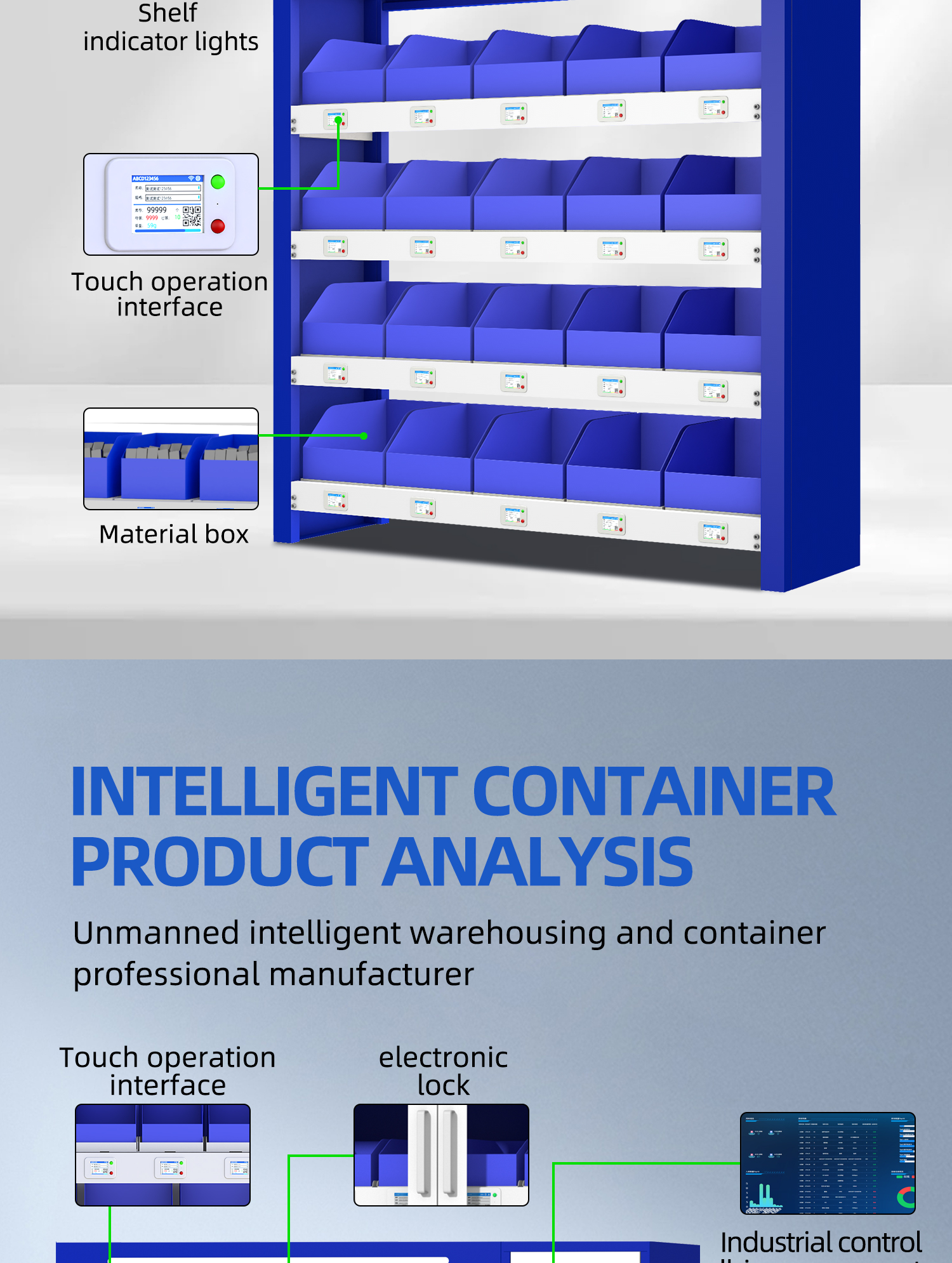

The shelf integrates precise load cell sensors at each cargo location. It automatically detects weight variations as items are placed or removed, allowing real-time inventory level calculations and unmanned monitoring.
What type of communication interfaces are supported?

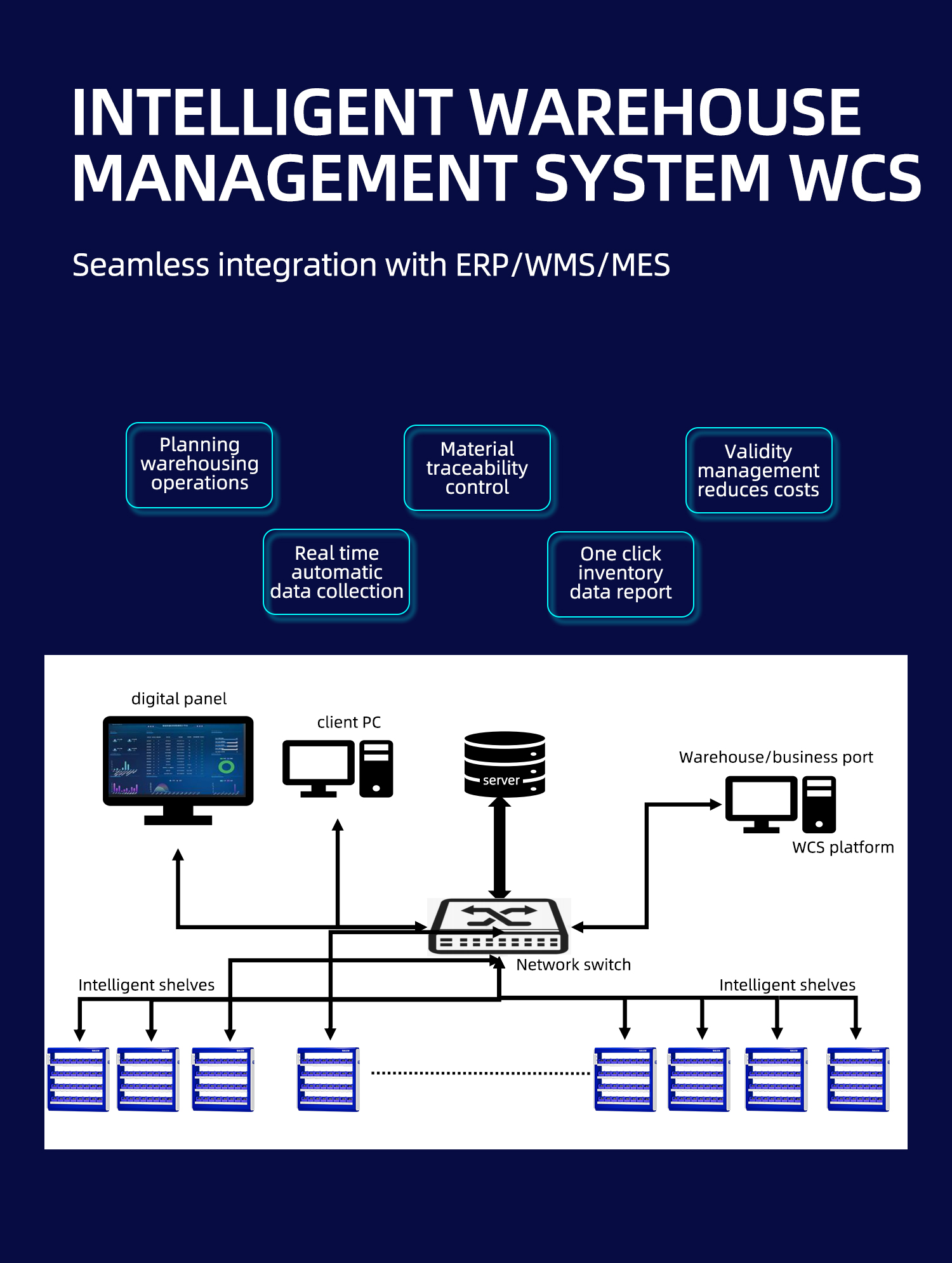

Our intelligent weighing shelves support standard RJ45 Ethernet and RS485 serial port interfaces, ensuring stable data transmission to your local control system or warehouse management software (WMS).
Can the weighing range and accuracy division be customized?
Yes, the system offers options for weighing ranges of 10kg, 20kg, or 30kg with minimum division sensitivities of 1g, 2g, or 5g to fit different types of warehouse inventory parts.
What materials are used to construct the smart shelving system?
The cabinet structures are made from high-strength cold rolled steel plates treated with electrostatic spraying, ensuring high durability, rust resistance, and stability in demanding industrial environments.

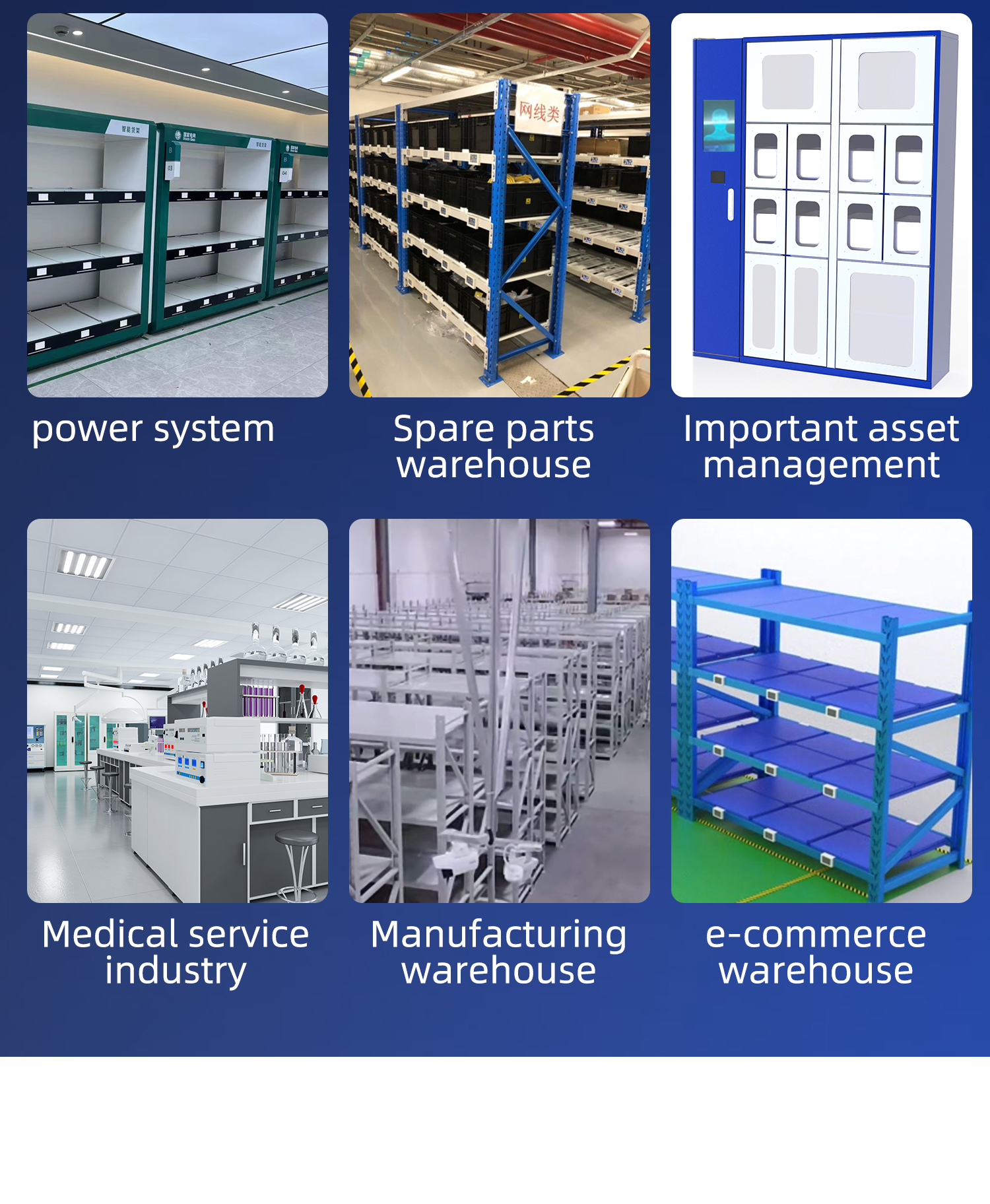

What environments is this intelligent weight shelf best suited for?
It is widely implemented on assembly line edges, unmanned warehouses, retail setups, tool rooms, smart pharmacies, and manufacturing workshops where automatic real-time count updates are critical.
