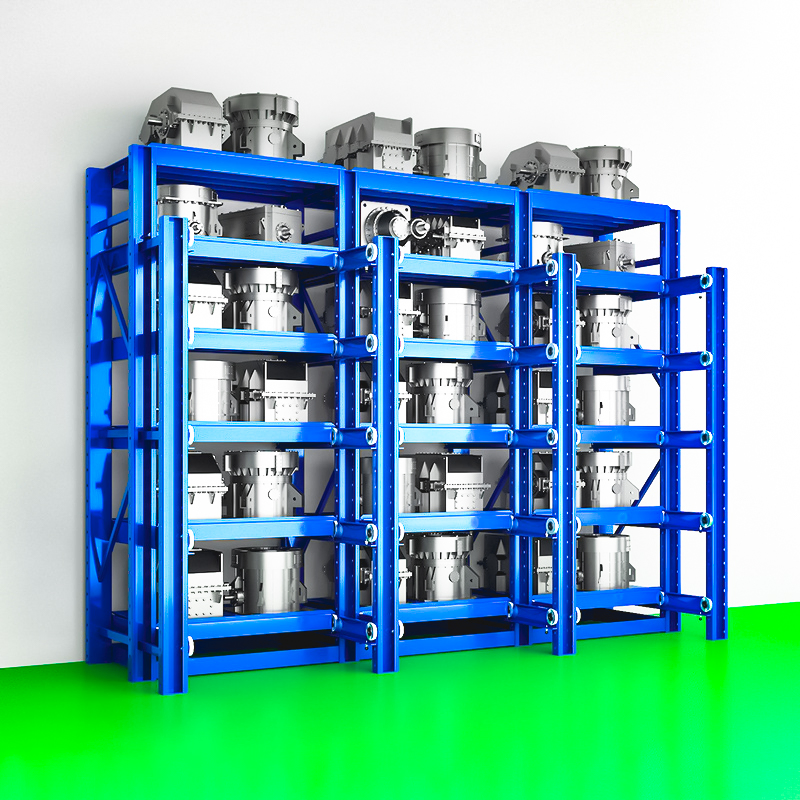

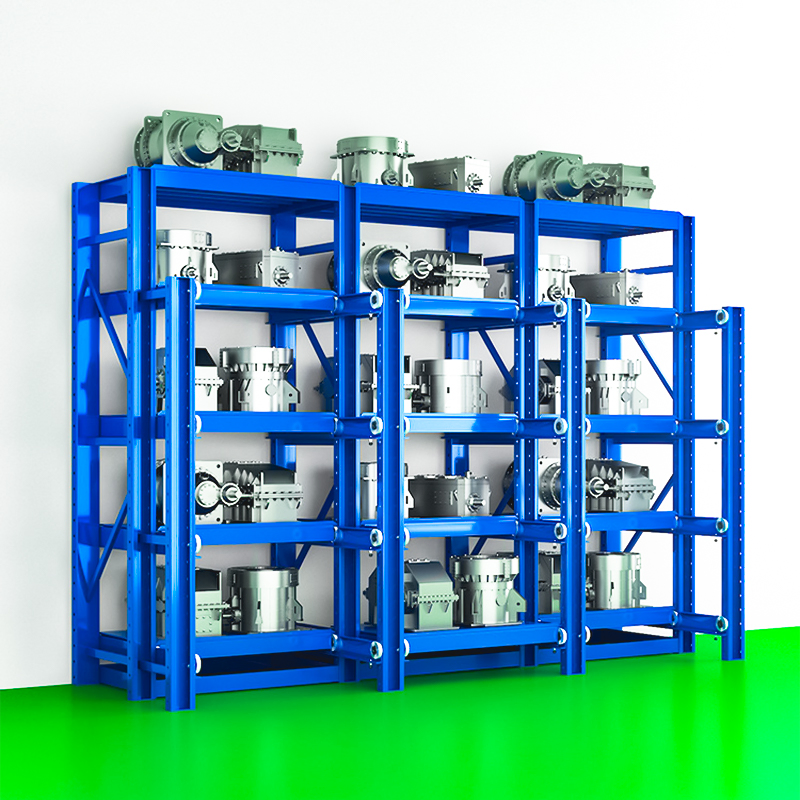

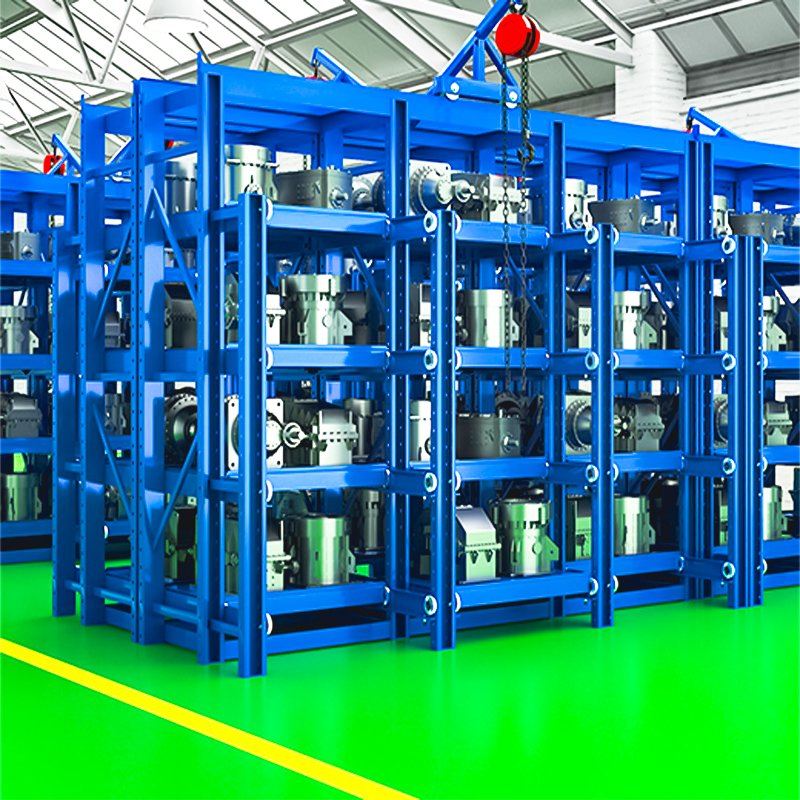

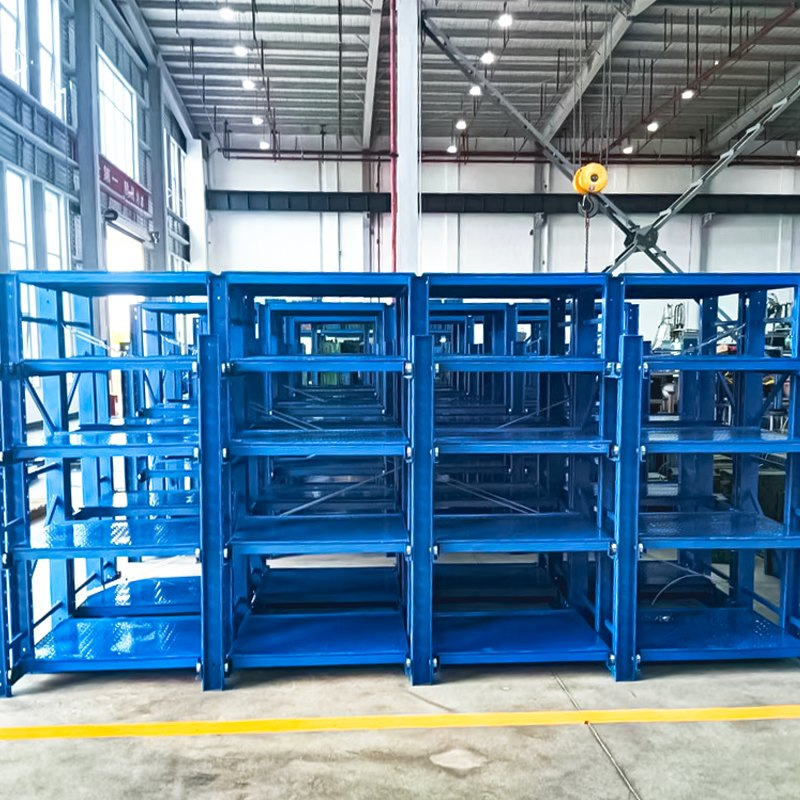

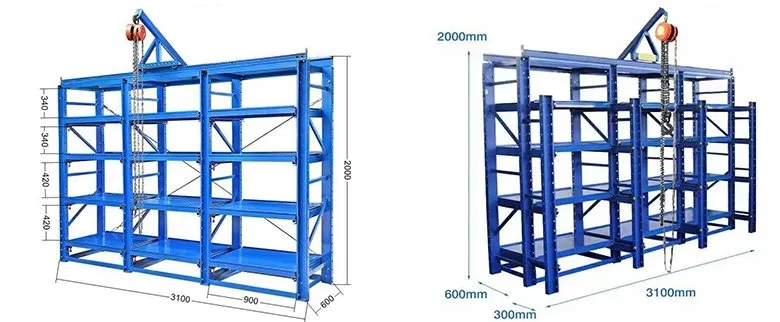

| Mold Storage Rack Details & Specifications | |||
| size | 2000*3100*600mm | size | 2000*3100*600+300mm |
| Column | 100*50*2.0mmC-type structural column | Column | 100*50*2.0mmC-type structural column |
| Laminate | 2.0mm patterned plate, both sides of the layer are bent upwards 12mm to prevent slipping | Laminate | 2.0mm patterned plate, both sides of the layer are bent upwards 12mm to prevent slipping |
| Drawer reinforcement | No. 5 non-standard angle iron, 2 reinforced | Drawer reinforcement | No. 5 non-standard angle iron, 2 reinforced |
| Lower connection box | No. 5 non-standard angle iron, connected with M14*25 screws | Lower connection box | No. 5 non-standard angle iron, connected with M14*25 screws |
| Top frame | No. 5 non-standard angle iron, connected with M14*25 screws | Top frame | No. 5 non-standard angle iron, connected with M14*25 screws |

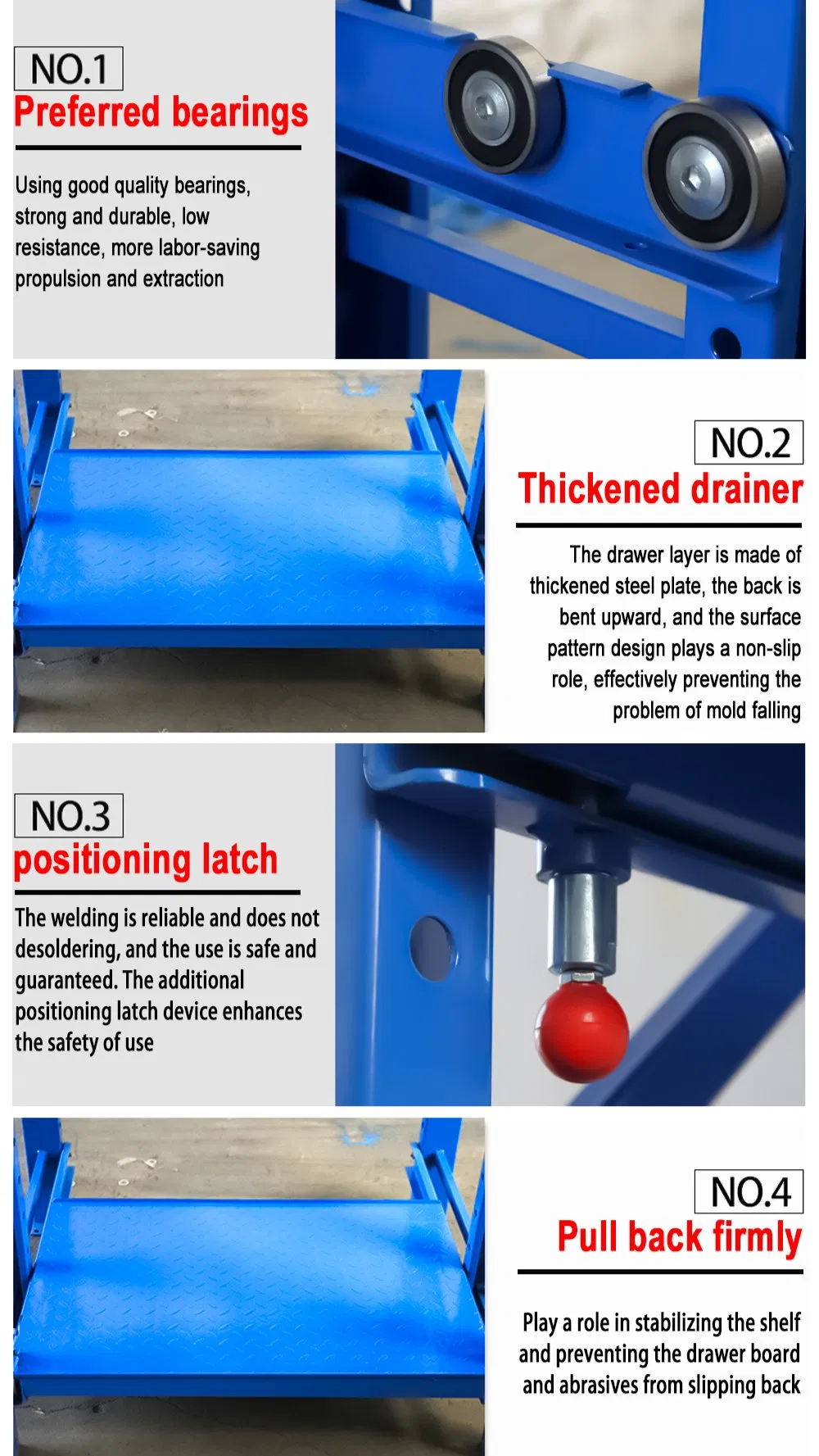

| Slide rail | External slide 3.5mm flat plate bending parts, internal guide rail 3.5mm flat plate bending parts, side U-shaped structure | Slide rail | External slide 3.5mm flat plate bending parts, internal guide rail 3.5mm flat plate bending parts, side U-shaped structure |
| Bearings | Model 6305, Material: bearing steel | Bearings | Model 6305, Material: bearing steel |
| Back Pull | 6.5mm iron wire plus M10 turnbuckle | Back Pull | 6.5mm iron wire plus M10 turnbuckle |

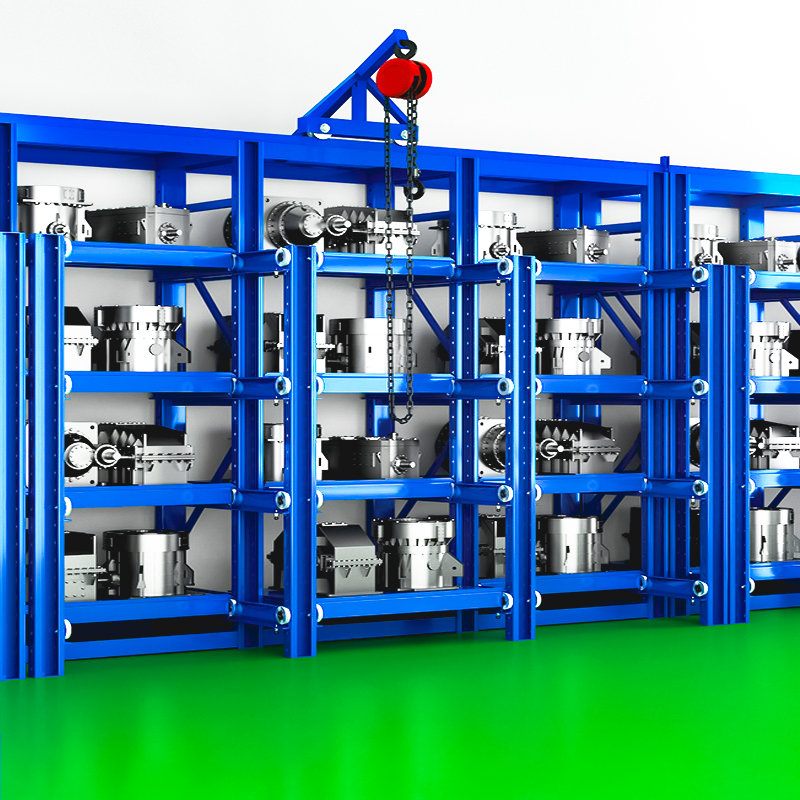

| Remark | 9 drawers and above equipped with overhead crane and hoist, drawer evenly distributed load 800KG, overhead crane load 500KG | Remark | 9 drawers and above equipped with overhead crane and hoist, drawer uniform load 1200KG, overhead crane load 500KG |
