Lush Rack
1 / 5
| Model Number | UPRIGHT TEARDROP | Weight Capacity | 5.000 - 25.000kg (11023 - 11339lb) |
|---|---|---|---|
| Frame Structure Type | 3"*3" (76.2 * 76.2 mm) Bolted Upright frame with Baseplate | Height | 2 - 12m (78" - 472") |
| Frame Punch Whole Type | Pitch 2" ( 50.8mm ) | Surface finish | Powder coating & Galvanized |
| Depth | 1.5 - 2.6mm - Customized (0.059" - 0.102" - Customized) | - | - |
Contact online customer service, Get the latest product catalog!

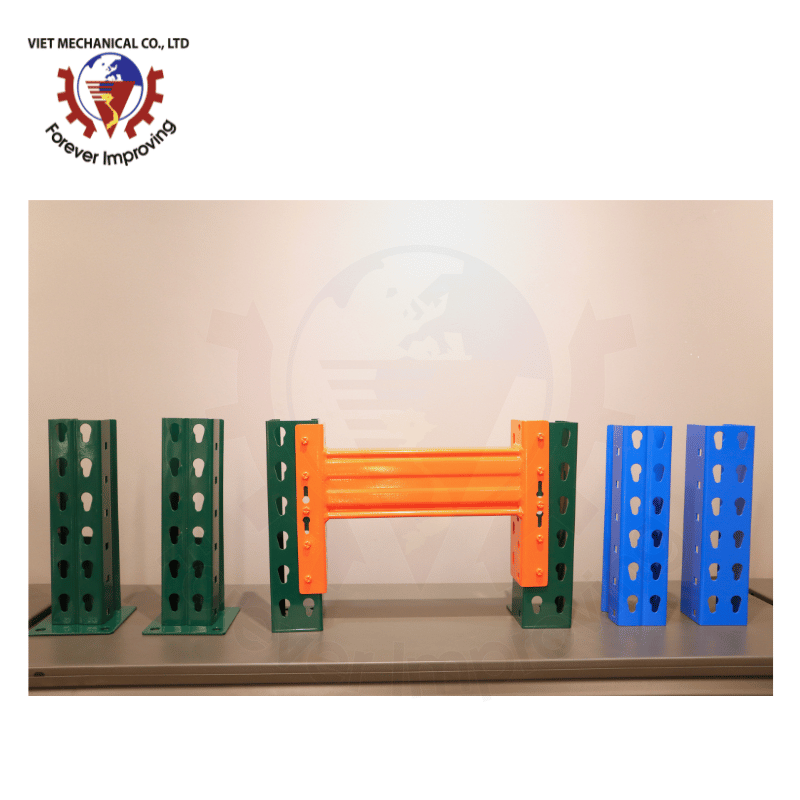

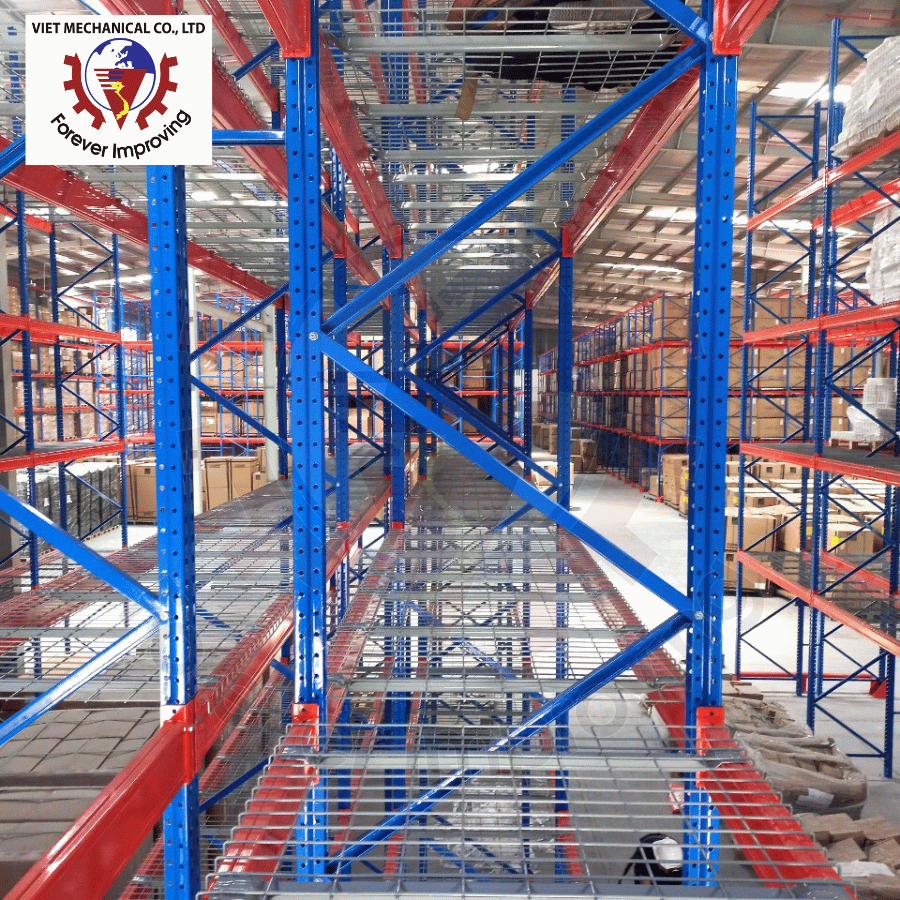

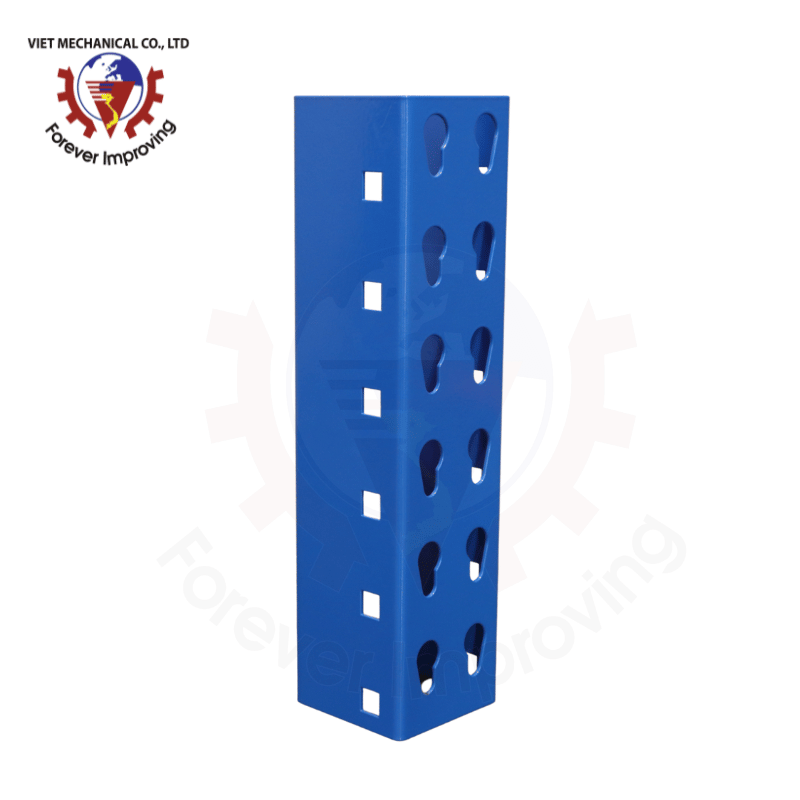

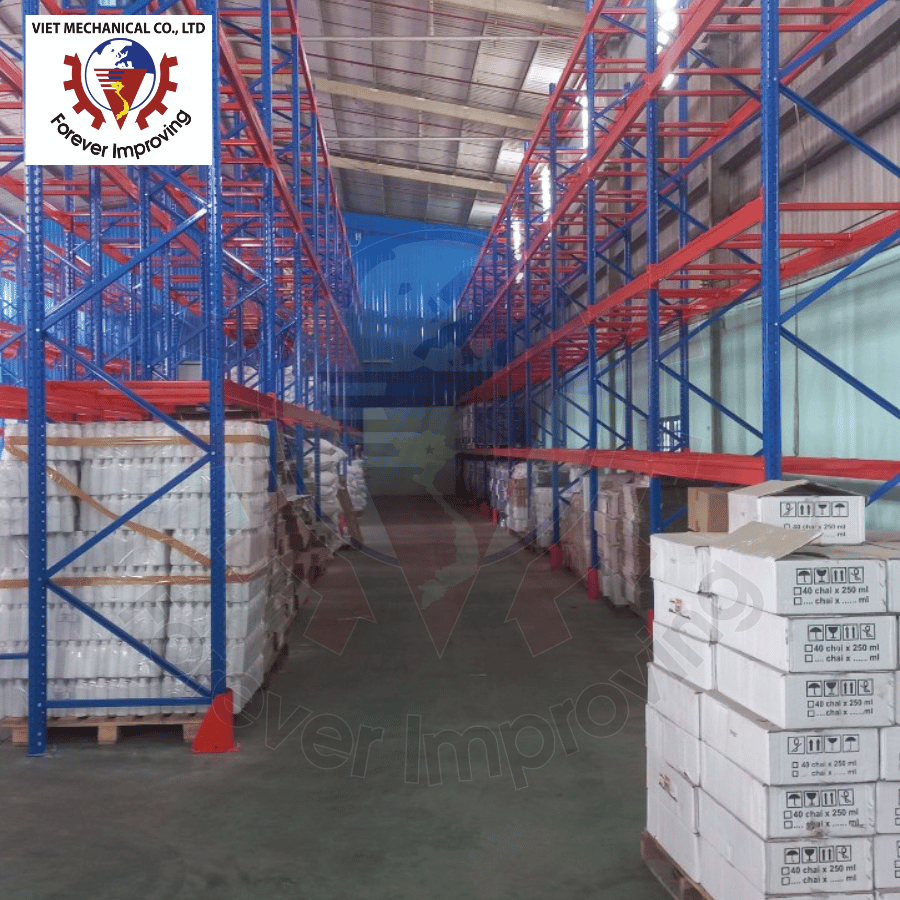

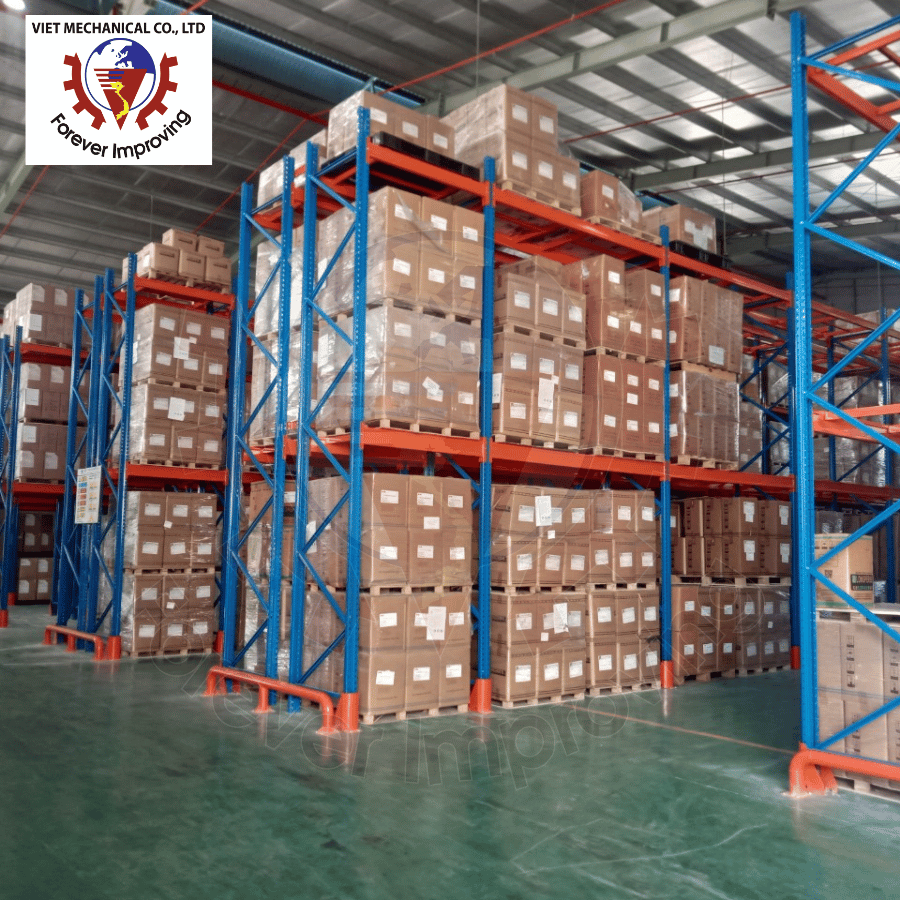

Teardrop pallet racking is the standard racking system design used primarily in North America. It features teardrop-shaped holes on the upright columns, allowing the beams to lock securely in place without the use of bolts or fasteners, saving installation time.

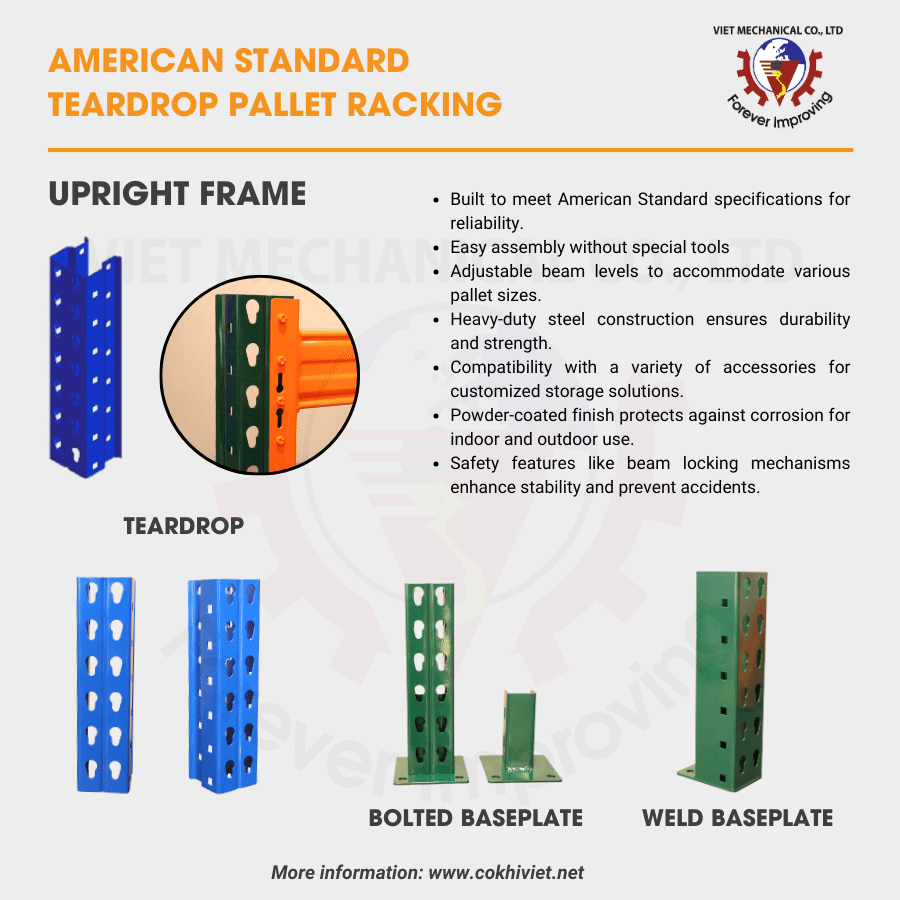

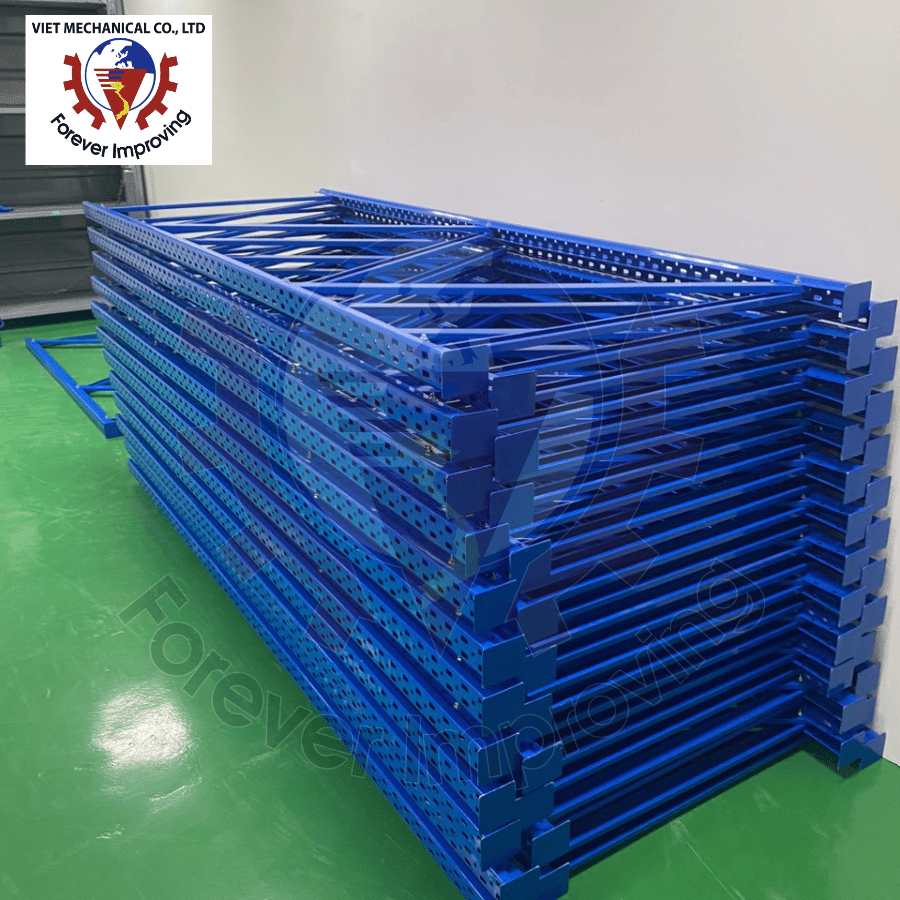

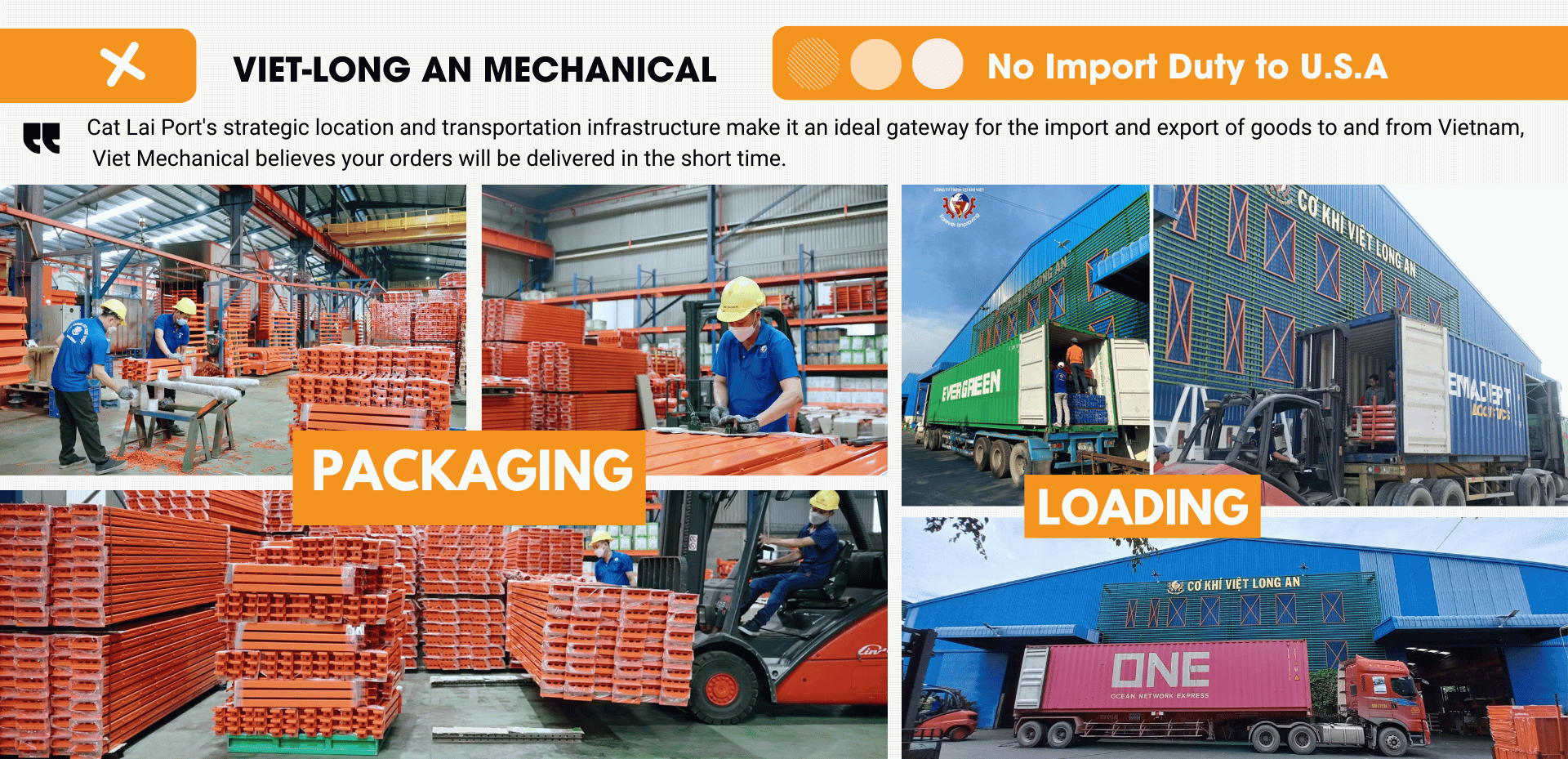

We supply bolted upright frames featuring a 3" x 3" (76.2mm x 76.2mm) structure with baseplates. Bolted structures make freight shipping more efficient and allow for easier replacement of individual braces if damage occurs.
Our teardrop upright frames come with a standard pitch of 2" (50.8mm). This allows for vertical height adjustments of your load beams in standard 2-inch increments.
We offer custom heights from 2m to 12m (78" to 472") and load weight capacities ranging from 5,000kg to 25,000kg (11,023 - 11,339lb) depending on structural configurations and steel gauge thickness choices (1.5mm to 2.6mm).
We provide highly durable powder coating finishes for standard indoor warehouse storage and galvanized finishes for outdoor storage, cold rooms, or corrosive environments.
Yes, our American Standard Teardrop design is cross-compatible with most standard teardrop racking styles in the industry, making integration into existing warehouse layouts simple.
