Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking
Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking
Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking
Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking
Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking
1 / 5
Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking
Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking
Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking
Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking
Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking

Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking

Customization: Available
After-sales Service: All Life
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications
Model NO.
mesh decking 2 galvanizing
Usage
Tool Rack, Supermarket, Industrial, Warehouse Rack
Material
Steel
Structure
Rack
Type
Pallet Racking
Mobility
Adjustable
Height
1-3.6 Meter
Weight
300-3000kg
Closed
Closed
Development
Conventional
Serviceability
Common Use
Used Scene
Packages on Pallet
Loading / Unload
Forklift or Agv
Design Parameter
Pallet Size and Weight, Warehouse Size
Color
Powder Coating, Blue ,Orange , Grey
Origin
China
HS Code
73089000
Capacity
200000 Sets/Year
Product Description

Selective pallet rack is composed of columns, beams, and standard accessories, making it the simplest structure and the most widely used rack. Using pallets as storage units, combined with forklift loading and unloading, it is flexible and efficient. It is highly suitable for storage of goods with multiple varieties and large batches.

Quick assembly
Good stability
Low cost
Various possibilities of shelves
Annex Mesh Decking -Warehouse Storage Steel Selective Pallet Racking
Pallet Racking System Details
1. Structural Design
Frame Components:
  • Upright Frames: Vertical steel columns with adjustable connection points for beam placement.
  • Load Beams: Horizontal beams that support pallets or storage units.
  • Pallet Supports: Roll-formed rails or wire decks to hold palletized goods securely.

Adjustability: Beam heights can be reconfigured to accommodate varying load sizes.

Material: High-strength steel with anti-corrosion coatings for durability.
2. Key Advantages
  • Space Optimization: Utilizes vertical space efficiently, ideal for high ceilings.
  • Accessibility: Compatible with forklifts or manual handling equipment for quick loading/unloading.
  • Scalability: Modular design allows easy expansion or reconfiguration.
  • Safety: Engineered for heavy loads (1,000-5,000 kg per level) with column guards.
  • Inventory Management: Enables systematic organization improving FIFO/FEFO compliance.
3. Common Applications
  • Warehousing: Bulk storage for manufacturing, retail, or 3PL facilities.
  • Cold Storage: Fully compatible with temperature-controlled environments.
  • E-commerce Fulfillment: Supports fast-paced order picking and inventory rotation.
  • Automotive/Industrial: Designed to store large, heavy components or raw materials.
4. Types & Specifications
Main Racking Types:
  • Selective Racking: Direct access to every pallet.
  • Drive-In/Drive-Through: High-density storage for homogeneous goods.
  • Push-Back Racking: Last-in, first-out (LIFO) multi-deep system.
  • Cantilever Racking: Best for long or bulky items.

Technical Specifications:
  • Height Range: Typically 3m-12m, based on infrastructure.
  • Compliance: Meets international standards (OSHA, FEM, SEMA).

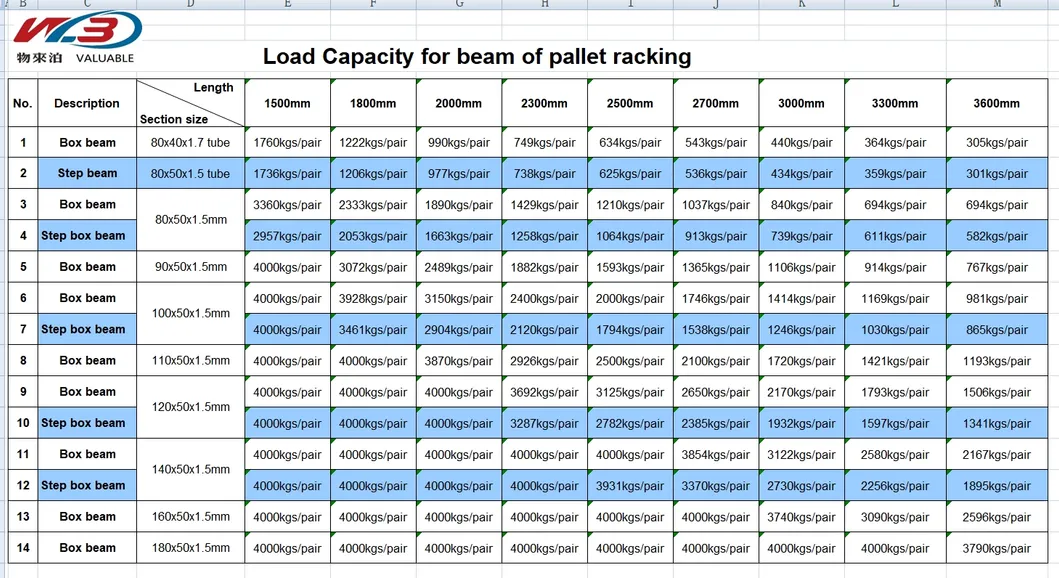

Beam Parameters and Load Capacity
Beam Section Size Beam Thickness (mm) Beam Material Beam Load Capacity (*)
80*50B 1.3
1.5
1.8
2.0		 Q235B
Q235D		 800Kg
100*50B 1200Kg
120*50B 1500Kg
140*50B 1900Kg
160*50B 2300Kg

* The load capacity of the beam is calculated by a 1.4 Factor of Safety, 2.4m length, and L/250 deflection limit. Specific projects shall be subject to the actual quotation.

Product Showcase

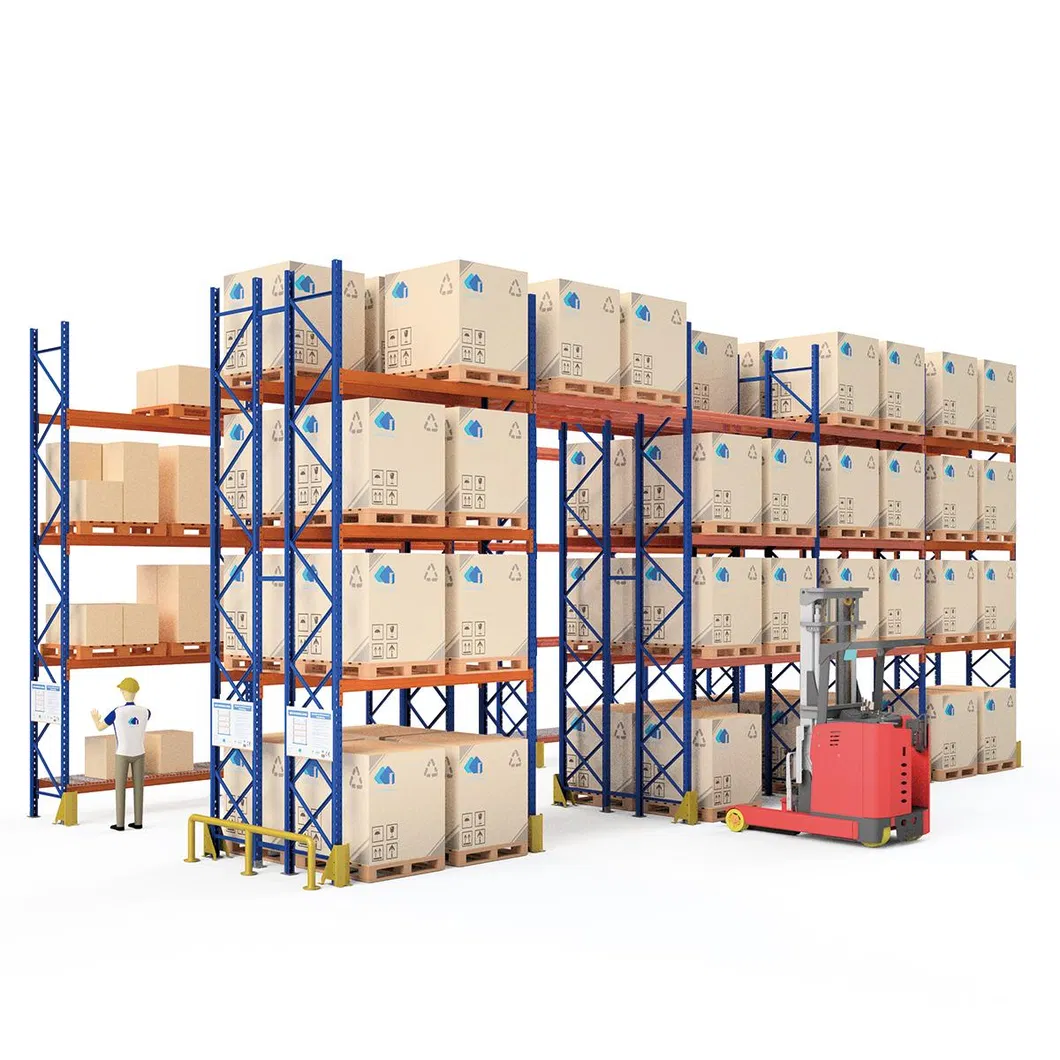

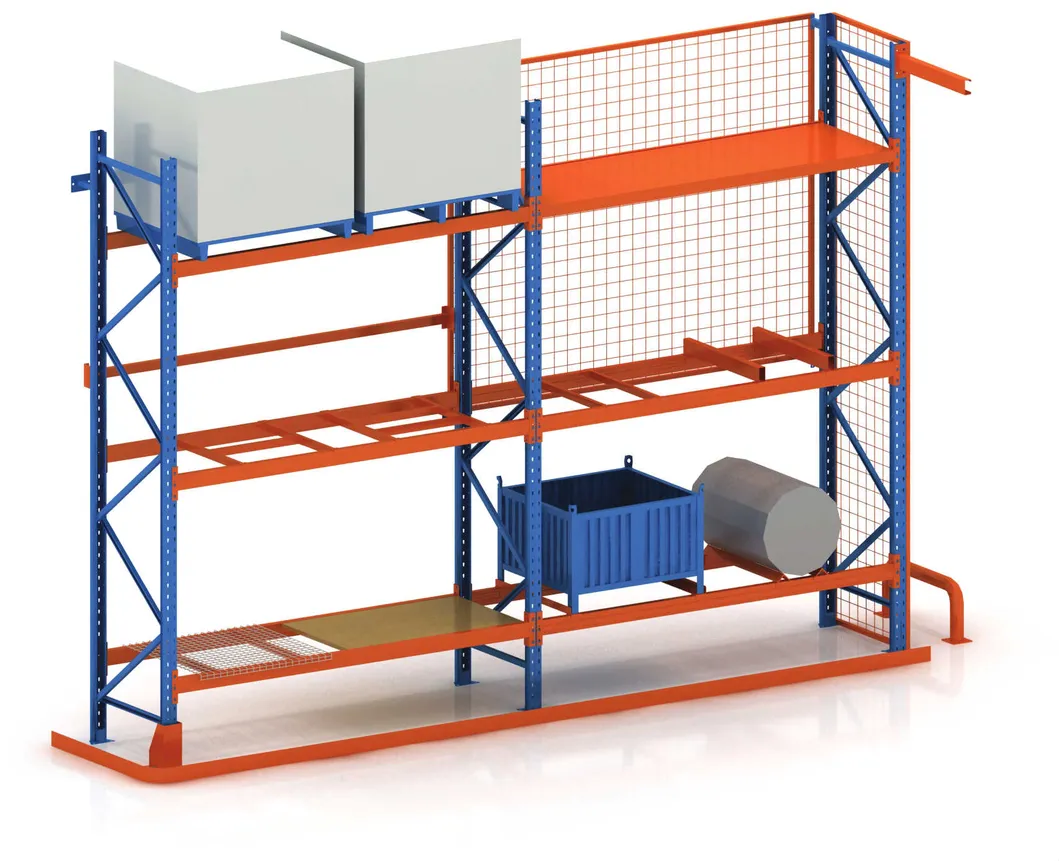

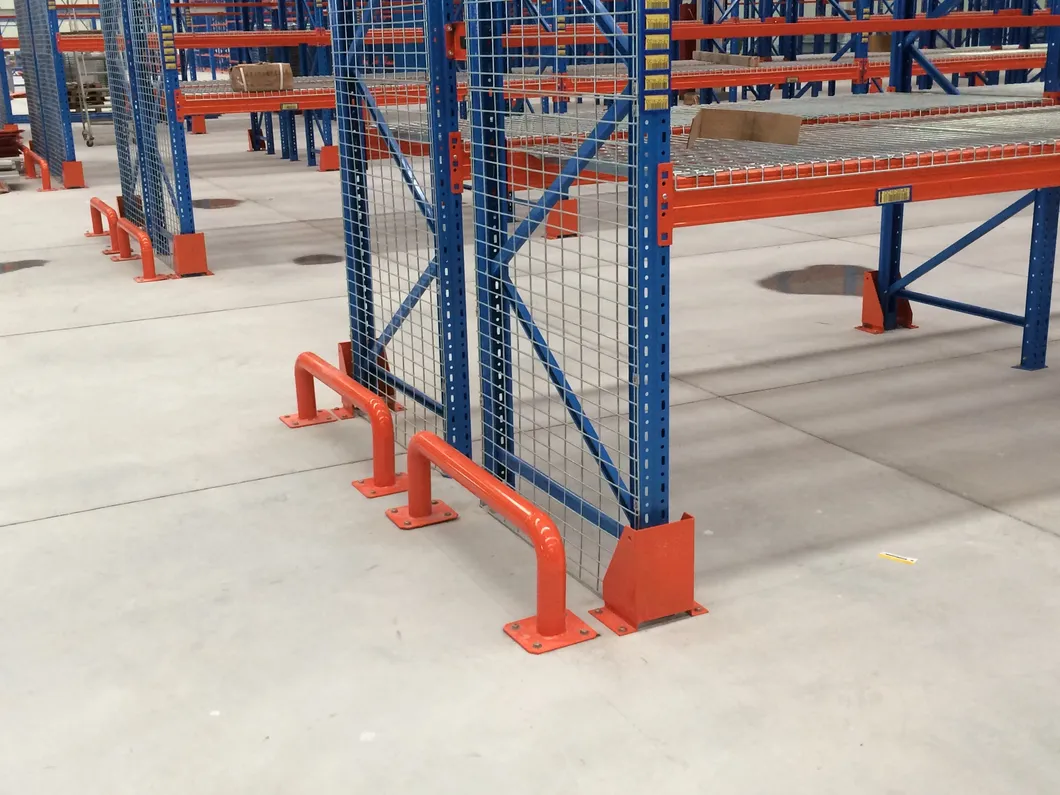

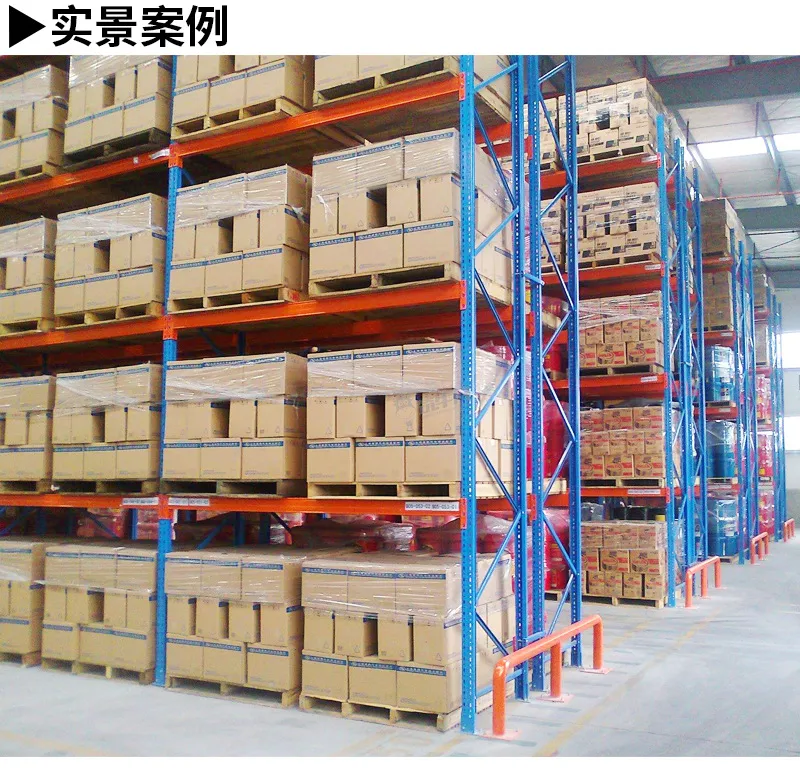

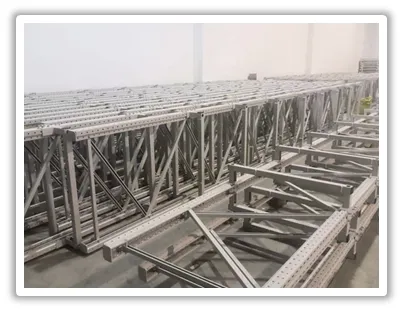

Annex Mesh Decking - Pallet Racking Setup Annex Mesh Decking - Storage Solutions Annex Mesh Decking - Structural View Annex Mesh Decking - Wire Mesh Deck Grid Annex Mesh Decking - Industrial Storage Rack Installation Annex Mesh Decking - Loaded Storage Racks Annex Mesh Decking - Heavy Duty Warehouse Storage
Frequently Asked Questions
What are the primary benefits of selective pallet racking?
Selective pallet racking is highly popular due to its simple structural composition (columns, beams, and standard accessories) which offers quick assembly, superior stability, low costs, and direct layout flexibility to access every pallet instantly.
Which steel materials are used for the load beams?
The load-bearing beams are manufactured from high-quality carbon steel grades Q235B and Q235D. These offer an excellent balance of ductility and tensile strength suitable for high-density warehouse storage systems.
How adjustable is the height configuration of the racking?
The upright frames feature adjustable vertical placement points. This modular design allows users to easily customize or reconfigure the horizontal load beam heights to conform to variable item sizes, boxes, or pallets.
What load capacity limits do these beams support?
Depending on the beam section sizes (ranging from 80*50B to 160*50B) and material thickness, the maximum load capacity ranges from 800Kg up to 2300Kg per level, calculated using a 1.4 safety factor.
Which applications and industries are best suited for this system?
It is ideal for standard bulk warehousing (manufacturing, retail, and third-party logistics), temperature-controlled cold storage, high-turnover e-commerce fulfillment centers, and heavy-duty industrial or automotive parts storage.
