Heavy Duty Storage Rack / Storage Shelving / Pallet Racks

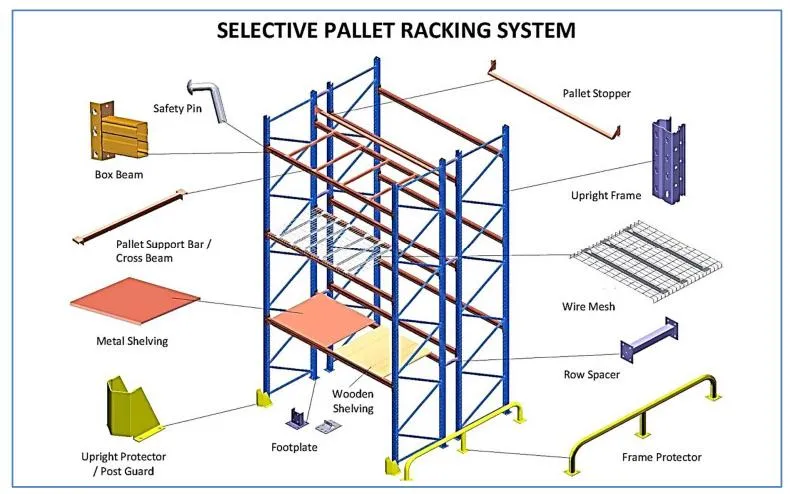

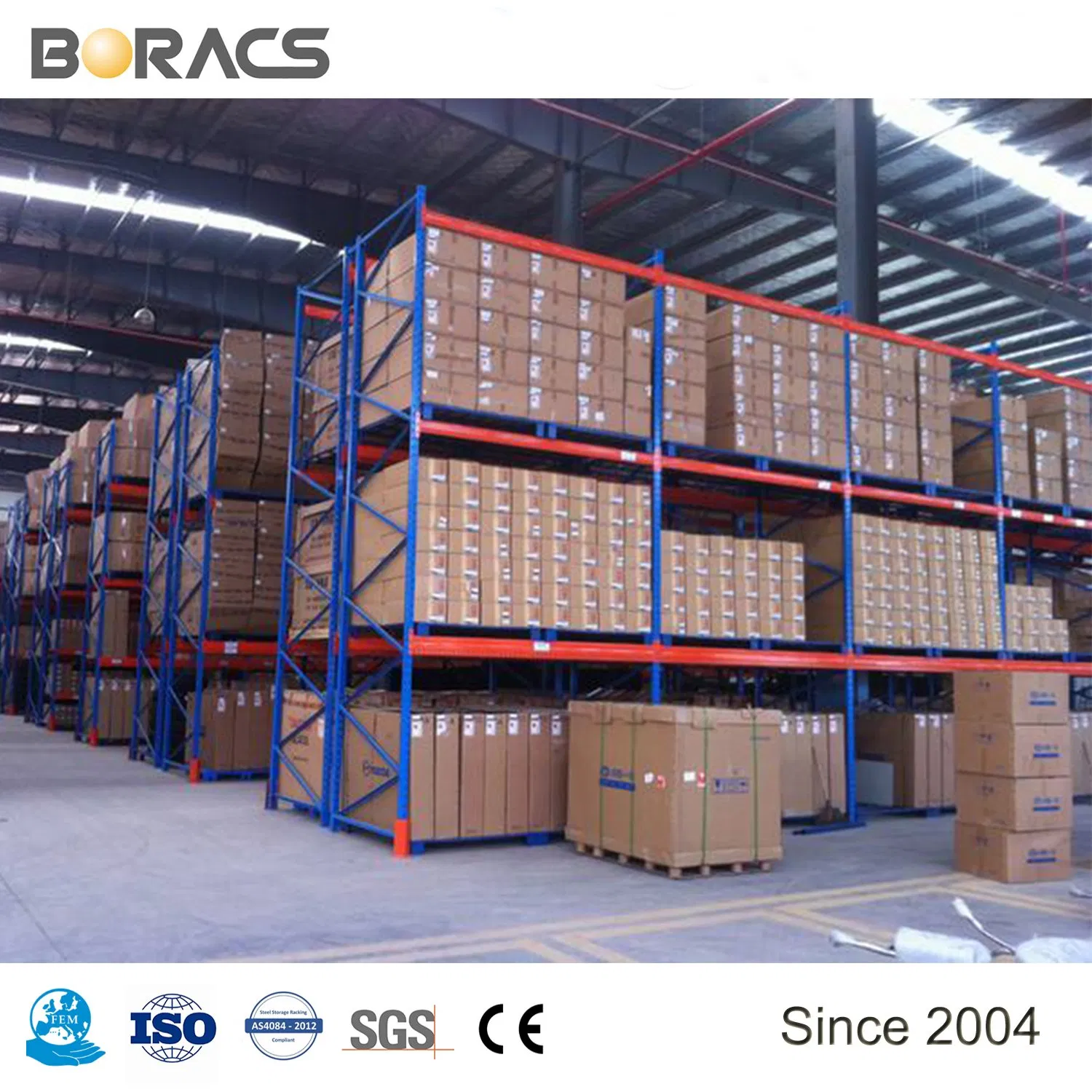

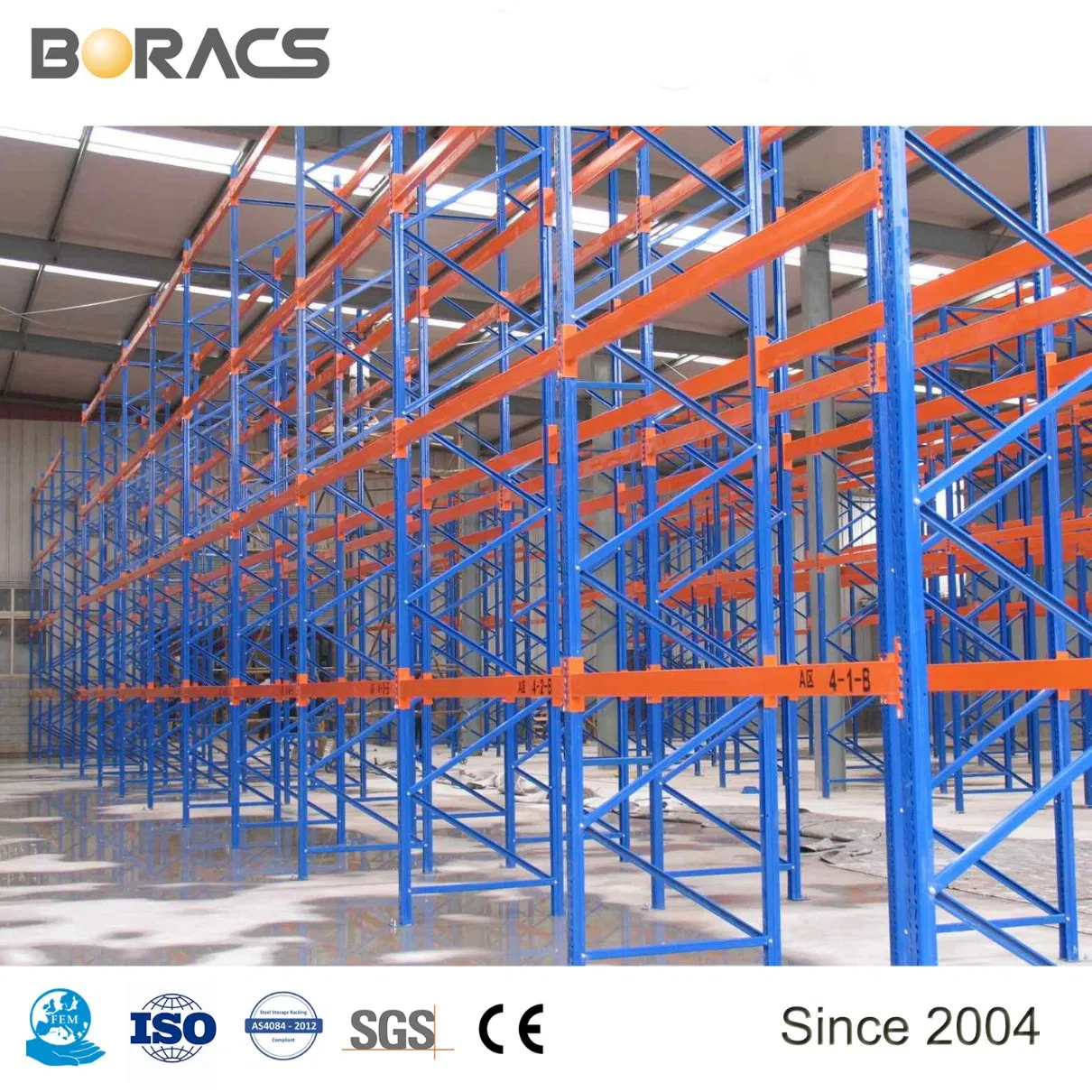

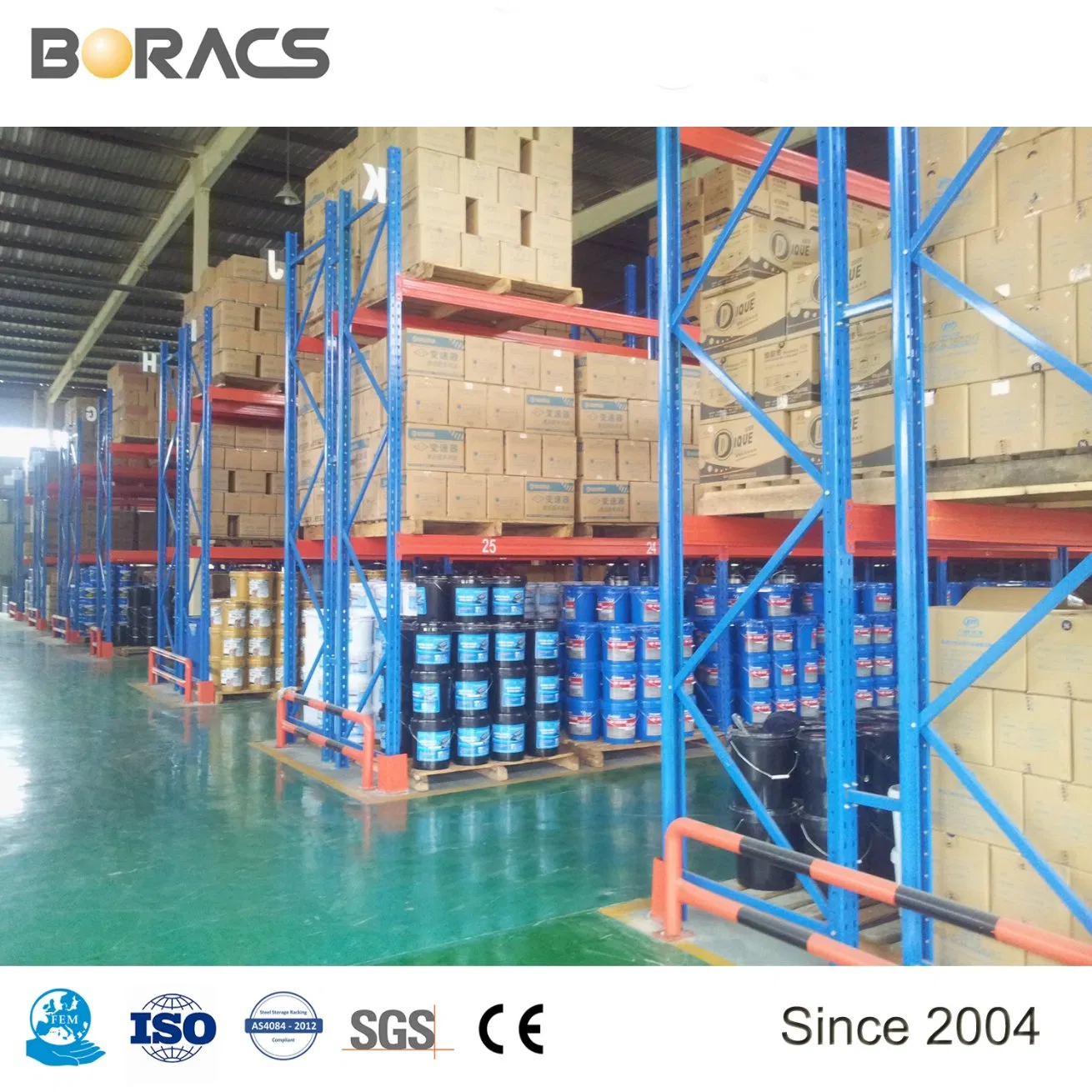

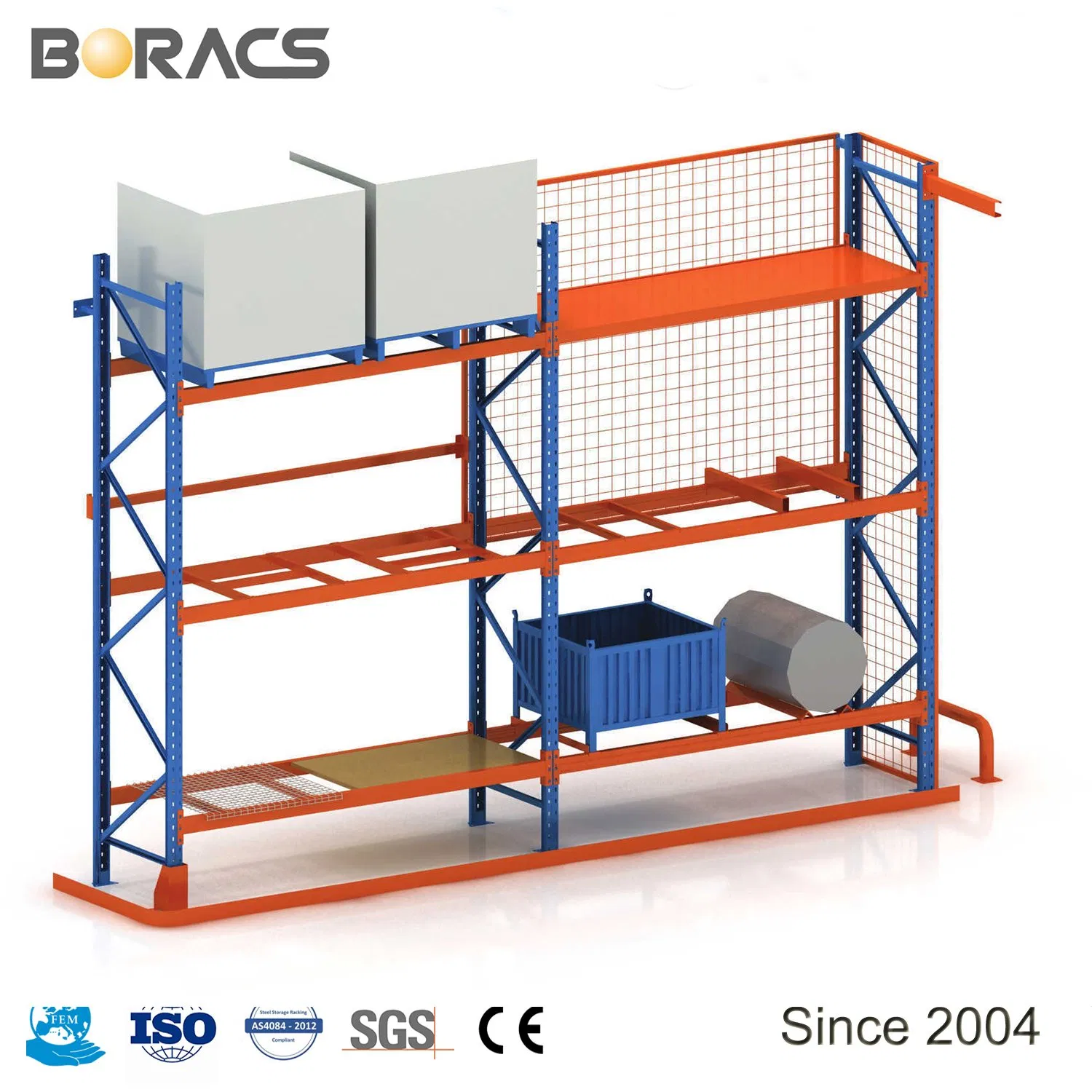

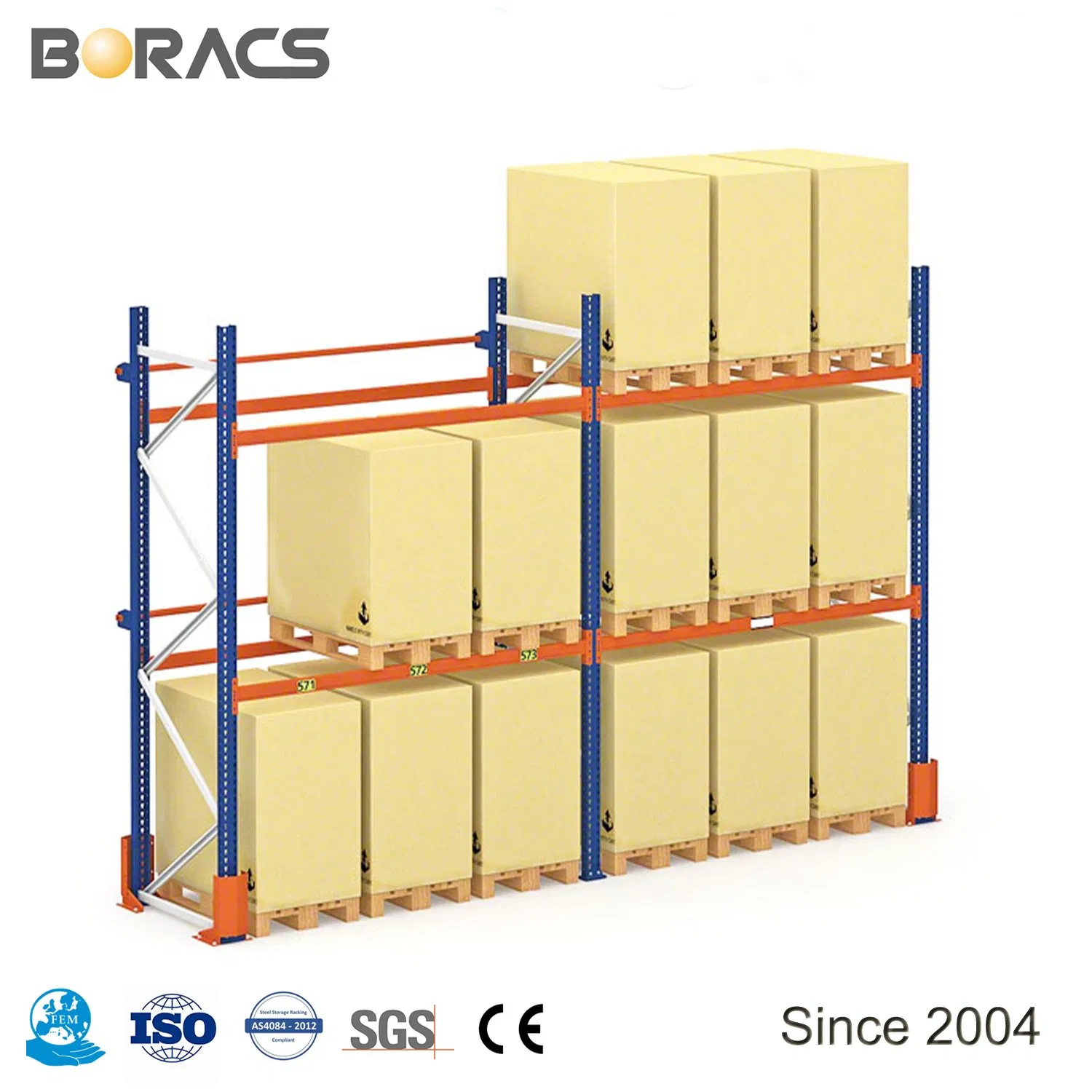

Pallet rack is the most popular warehouse system. As the best solution for warehouse systems with palletized products, they store a wide variety of goods. The major components of the pallet racking system are upright frames (standard frames consist of two posts, horizontal and diagonal bracings, and footplates) and beams. The pallet rack system is simple but reliable. According to the warehouse turnout situation and loading capacity, there are various specifications and sizes to be chosen.
| Frame & Beam Specifications | Loading & Production Capacity | ||
|---|---|---|---|
| Frame depth | D600-D1400 (Requires 3 posts for larger depths) | Post section | 80*60, 90*68, 90*70, 100*75, 120*75, 120*95, 140*120 |
| Frame Height | H2000-H11700 (Requires post splice kit for higher posts) | Loading capacity | 8000kg-32000kg/bay |
| Box beam | W1000-W4000 | Box beam section | 80*50, 90*50, 100*50, 110*50, 120*50, 130*50, 140*50, 155*50 |
| Accessories | 100% 8.8G bolt & nut | Loading capacity | 800kg-4000kg/level |
| Surface treatment | Powder coating & Galvanization | Painting Color | Blue, Orange, Grey (RAL 5015, RAL 2004, RAL 7035, etc.) |
| Factory capacity | 25 * 40HQ/month | Factory inspection | "FIRST-PIECE" at every stage of production for every order. |
| Max load per container | 25000kg | Shipping package | Use Dunnage bags to avoid damage |
| Compliance | European FEM, Australia AS4084 | OEM Support | Acceptable |

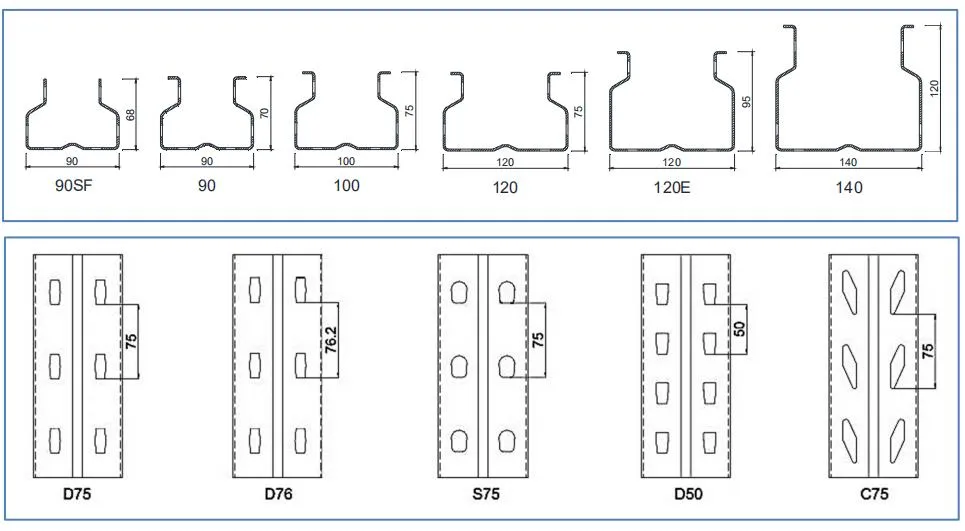

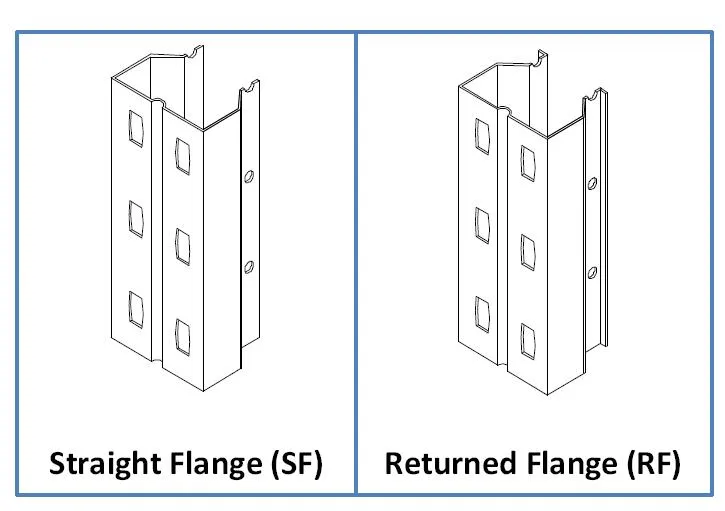

Upright profiles in different sizes, with both Straight Flange and Returned Flange, are roll-formed from high-quality steel coils to cater to a wide range of frame load requirements. Hole patterns with Pitch Height 50mm, 75mm, and 76.2mm (3") are available.
Surface Finish:
- Pre-Galvanized (Pregal), or
- Powder-coated RAL 5015

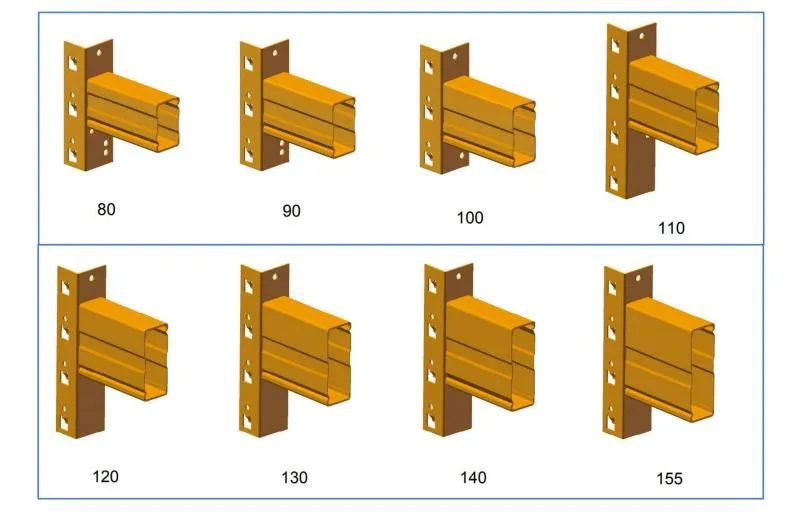

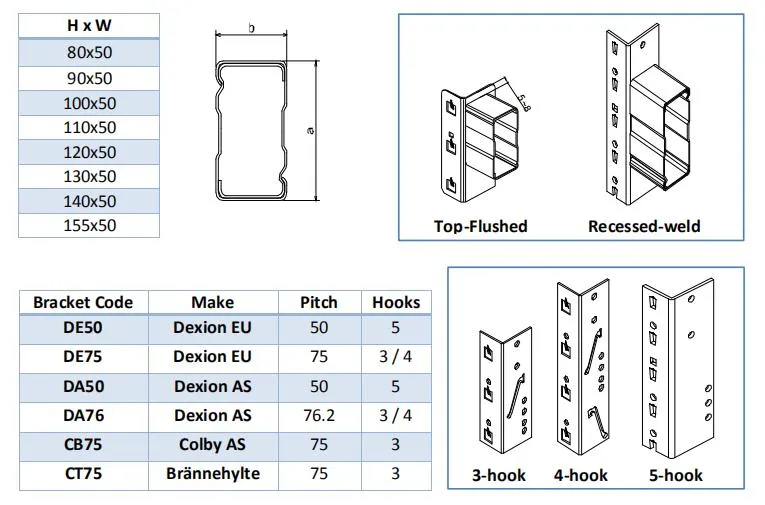

A wide range of Box Beam sizes are available with customized lengths to meet varied pallet sizes and load rating requirements. Several types of beam connector/bracket styles as shown below are also available to meet different market needs.

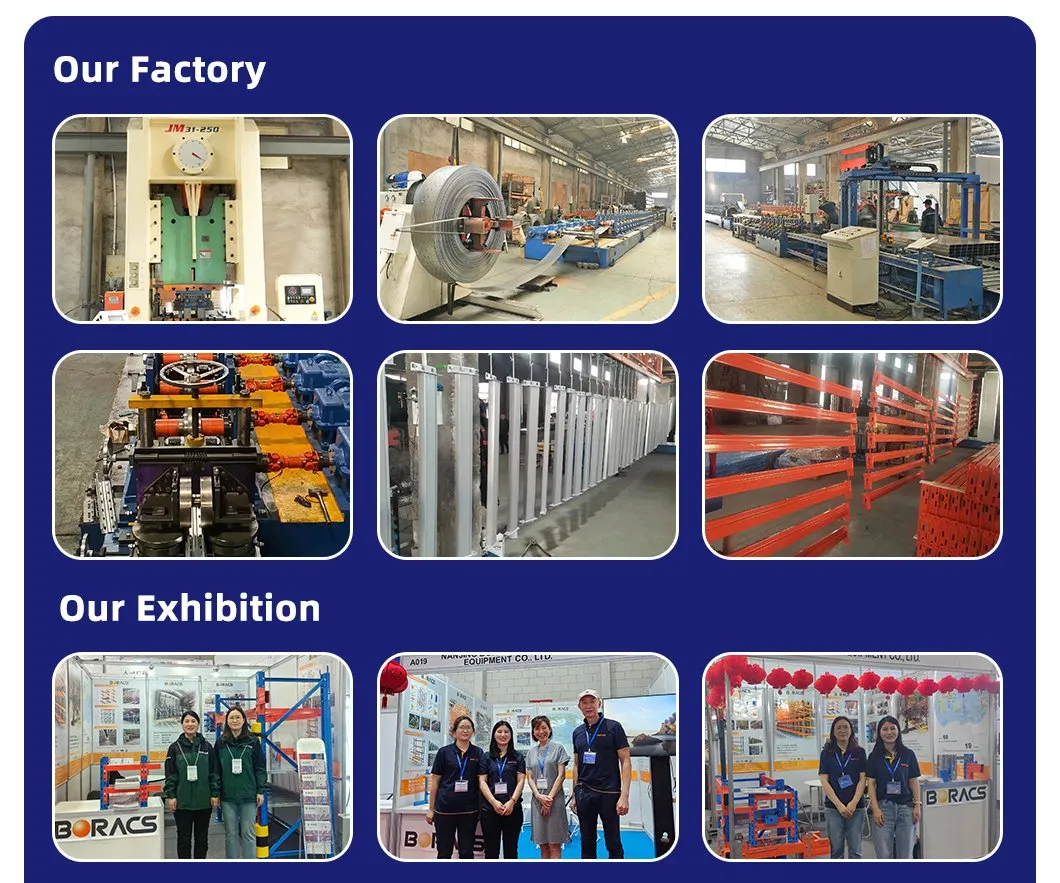

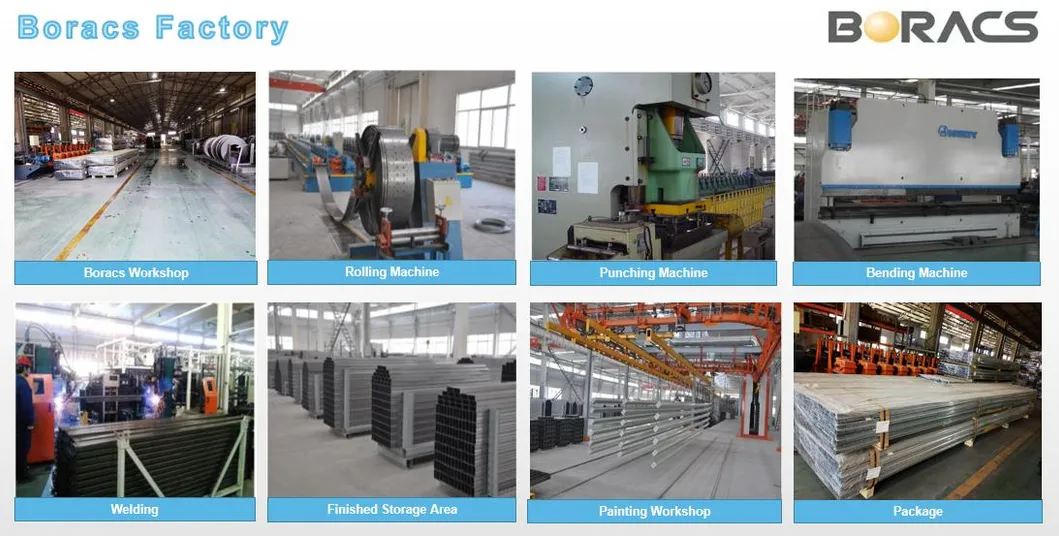

Our manufacturing facility has been established for over 15 years, with operations expanding over the years to specialize in international export markets. Our racking systems are installed across more than 30 countries globally, through our dedicated network of distributors and direct warehouse projects.
We perform regular Tensile and Yield Strength tests to verify that only the highest grade materials are utilized in our production process. All selective pallet racks and cantilever systems undergo rigorous testing to comply with international industry parameters, including European FEM standards and Australian Standards.
Excellent Service: We provide quick, no-hassle pricing and promise to respond with a detailed quote within 24 hours.
Fast Manufacturing: For standard orders, we guarantee delivery/production within 15 days, secured by formal agreements.
Specialized Export Packaging: We wrap full uprights in clear protective film and use robust plastic clips on beams to prevent surface friction and transit damage.
Warranty Assurance: Premium engineering and high design standards enable us to offer an industry-leading 10-Year Warranty for regular use.
Delivery time depends on the specific design. Standard catalog models are typically produced and ready to ship within 20 days. Custom or highly specialized profiles are scheduled based on manufacturing tool setup times.
We primarily work with bank Telegraphic Transfers (T/T payment) and Letters of Credit (L/C payment).
Yes. We provide clear production tracking by sharing regular status updates, reports, and photographs at different manufacturing stages so you can stay fully informed.
Yes, we can send sections of actual product samples for your structural and paint finish reference by express courier service.
