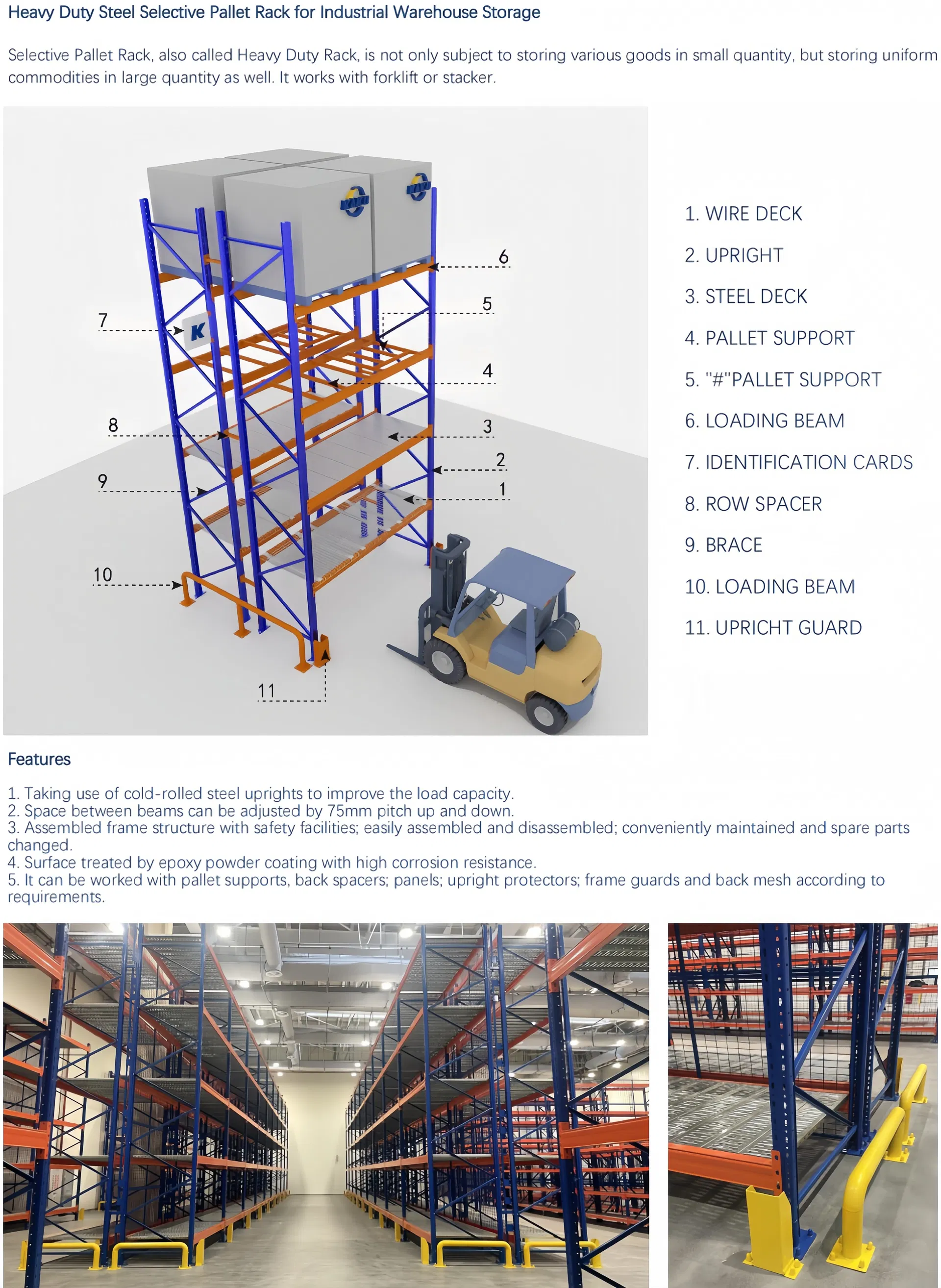

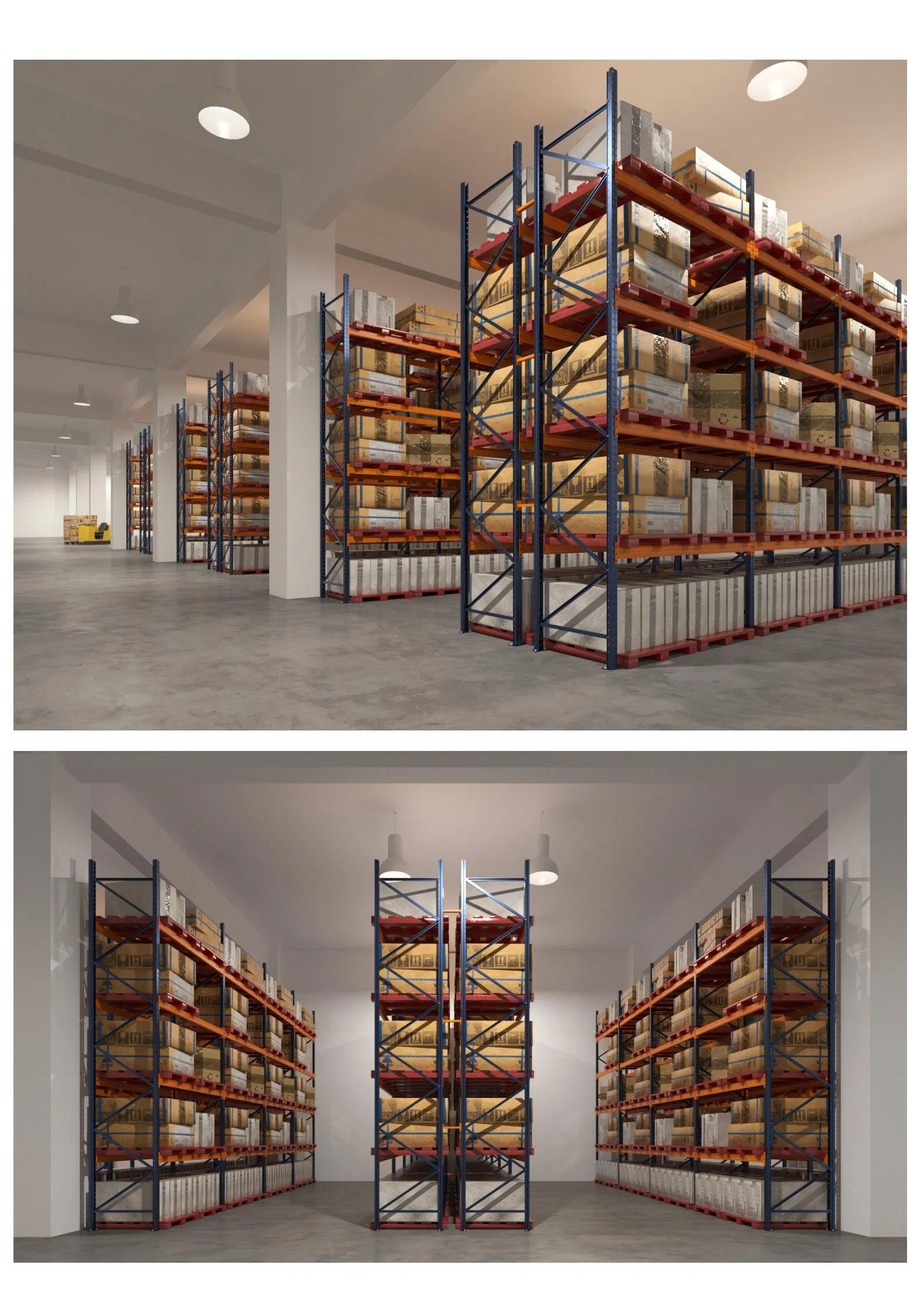

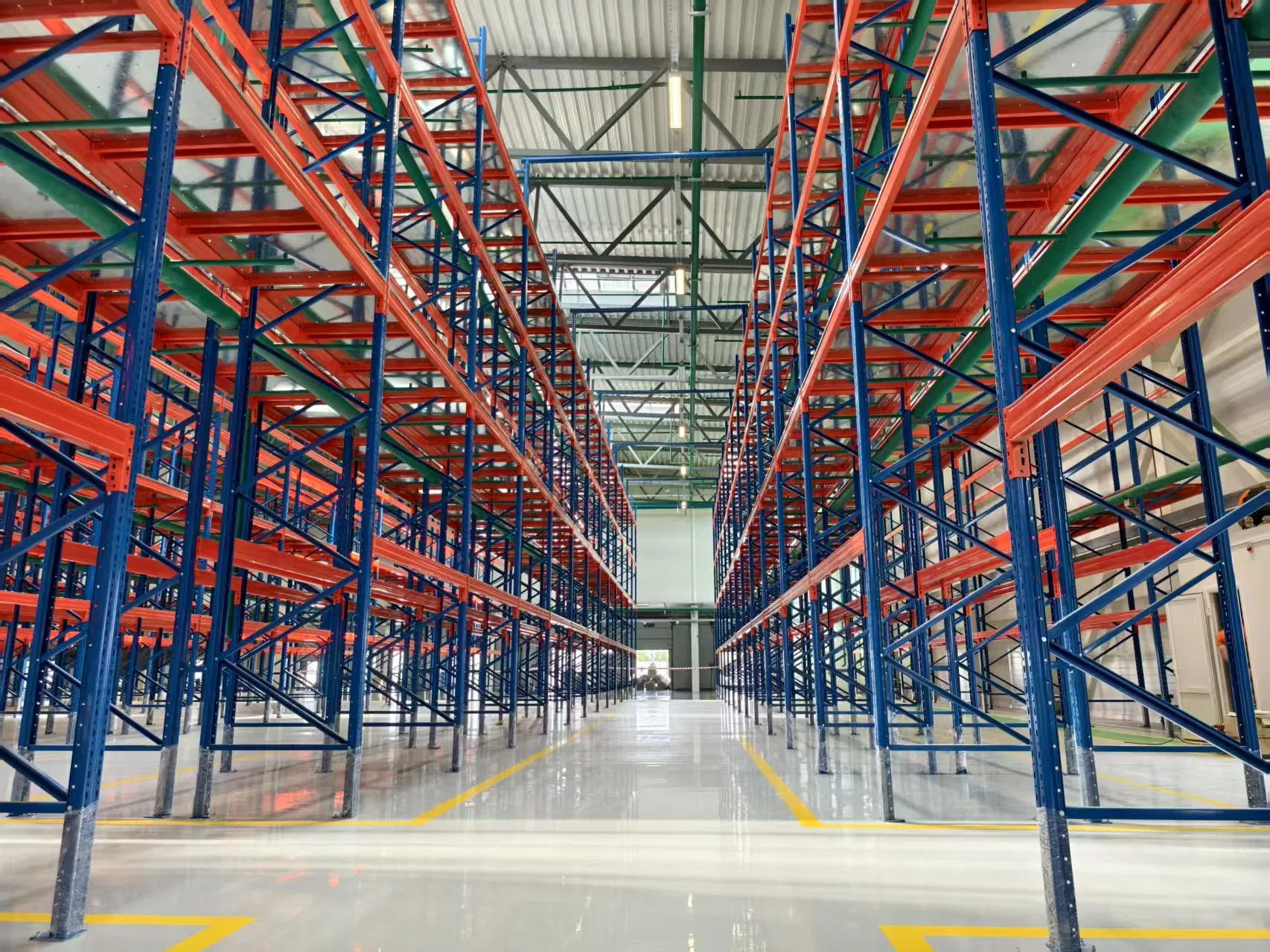

Selective Pallet Racking
| Frame Loading Chart, first beam level is at 1500mm high | |||
|---|---|---|---|
| Size (mm) | Thickness (mm) | Frame capacity per bay (kg) | Steel grade |
| 80*60 | 1.5 | 4000 | Q235, Q345 |
| 2.0 | 6000 | Q235, Q345 | |
| 85*67 | 1.8 | 6000 | Q235, Q345 |
| 2.0 | 8000 | Q235, Q345 | |
| 2.3 | 10000 | Q235, Q345 | |
| 90*67 | 2.0 | 9000 | Q235, Q345 |
| 2.3 | 11000 | Q235, Q345 | |
| 90*70 | 2.0 | 9000 | Q235, Q345 |
| 2.3 | 11000 | Q235, Q345 | |
| 2.5 | 13000 | Q235, Q345 | |
| 100*67 | 2.0 | 12000 | Q235, Q345 |
| 2.3 | 13800 | Q235, Q345 | |
| 2.5 | 15000 | Q235, Q345 | |
| 100*70 | 2.0 | 12000 | Q235, Q345 |
| 2.3 | 14000 | Q235, Q345 | |
| 2.5 | 15500 | Q235, Q345 | |
| 120*95 | 2.0 | 16000 | Q235, Q345 |
| 2.3 | 18000 | Q235, Q345 | |
| 2.5 | 20000 | Q235, Q345 | |
| 140*95 | 2.5 | 20000 | Q235, Q345 |
| 3.0 | 25000 | Q235, Q345 | |
Our warehouse equipment manufacturing company was founded in 2016 and is headquartered in China. The manufacturing factory covers an area of 80.95 acres, with a total construction area of nearly 34,000 square meters. We have over 200 employees and more than 10 professional senior engineers.
The factory has internationally advanced production facilities, which includes fully automatic cutting machines, and cold bending equipment such as profile steel units, CNC shearing machines, CNC bending machines, automatic welding machines, robot welding, and imported powder spraying assembly lines. We also have professional installation teams and can provide fast rack installation services, maintenance services, and after-sales support globally.

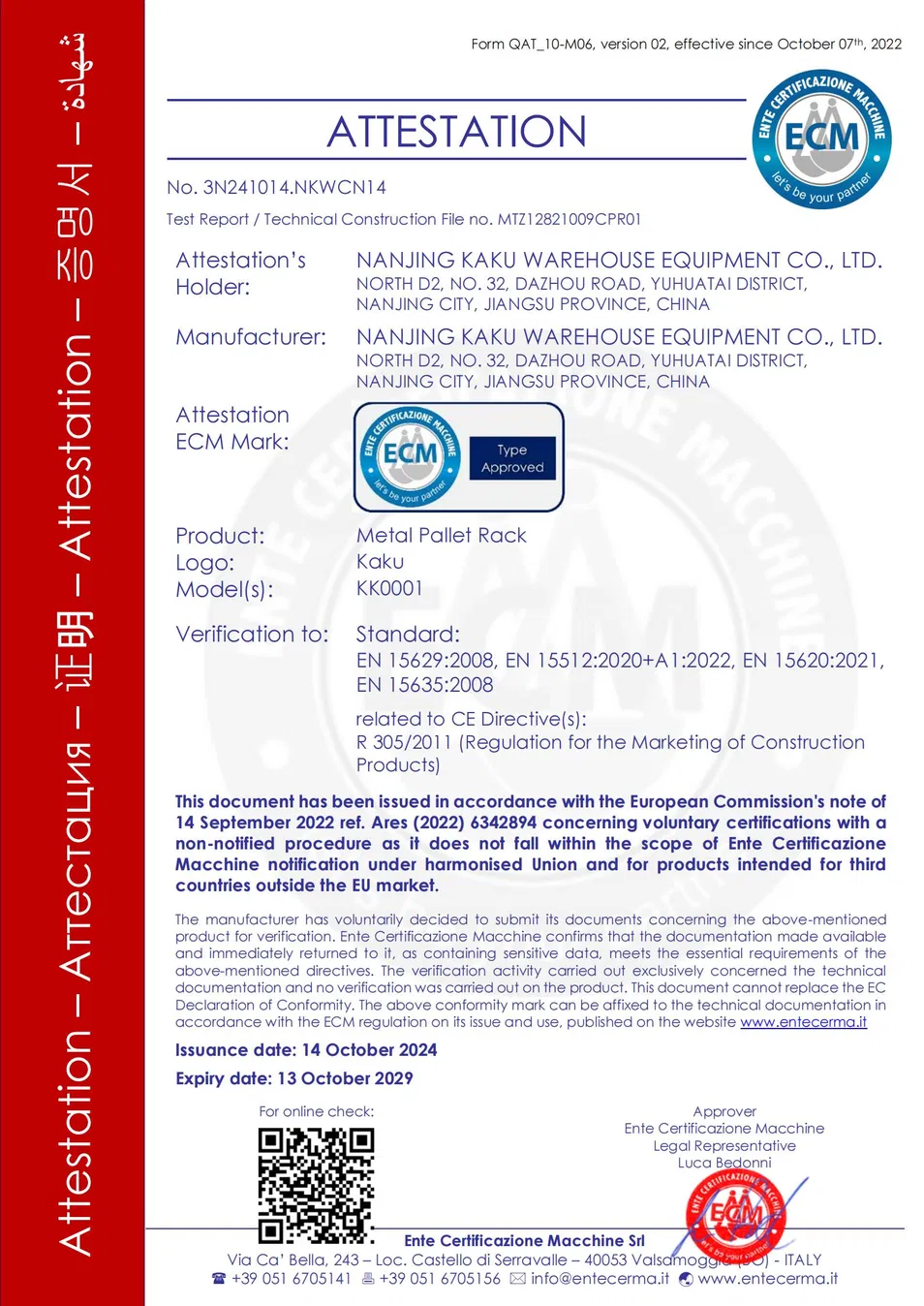

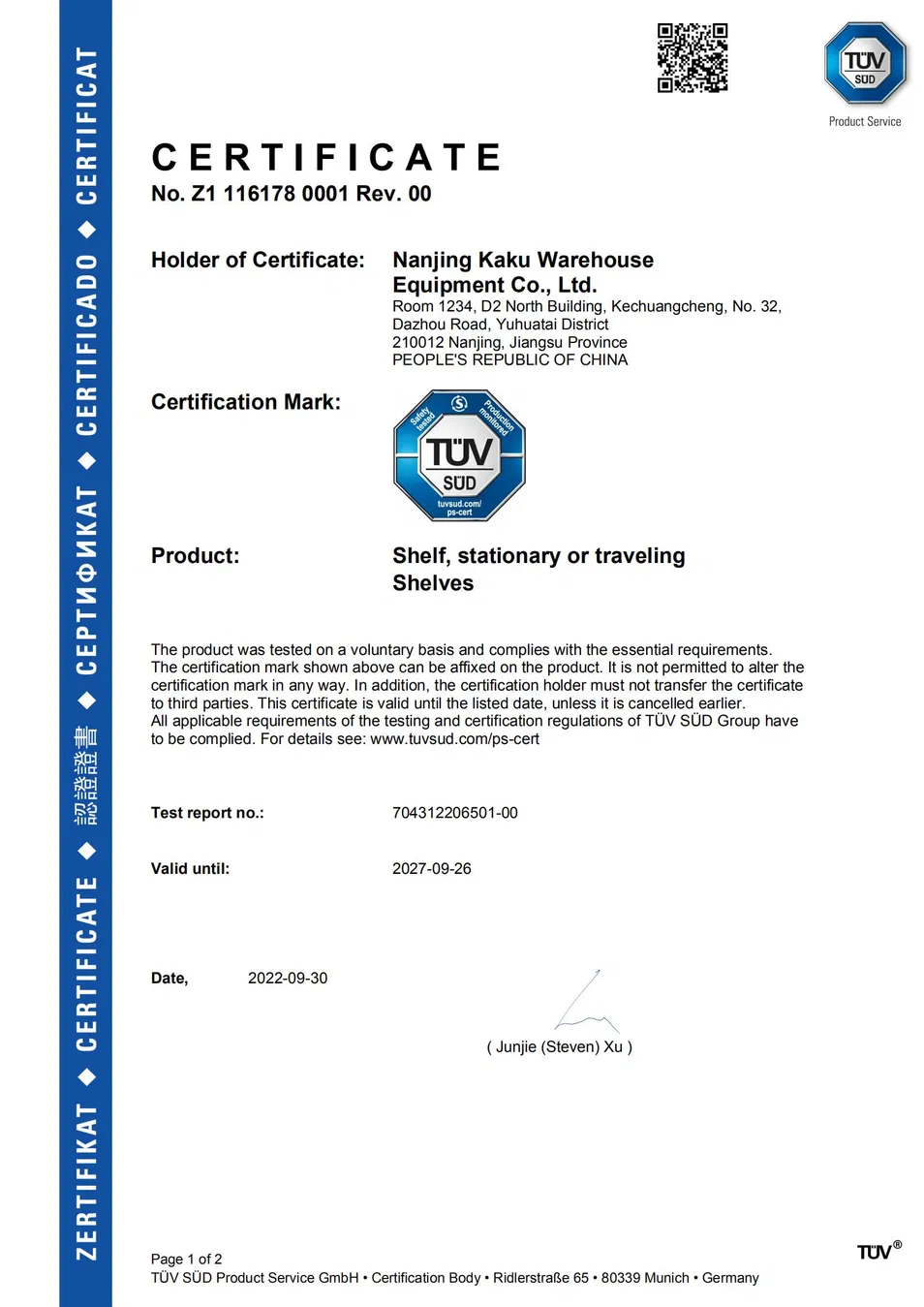

On the basis of advanced technology, combined with the characteristics of warehousing equipment and automated production lines, we independently produce various types of storage racks such as pallet racking, medium duty shelving, mezzanine floors, steel pallets, and other industrial storage solutions. Our manufacturing facilities have successfully obtained ISO9001 quality management system certification, AWS American Welding Society certification, CWB Canadian Welding Bureau certification, TUV certification, and CE certificates.
