Cost-effective Q235 steel wire mesh shelving, available in light, medium, heavy duty options. Features adjustable heights, easy assembly, and rust-proof finishes (powder coating/galvanized). Perfect for warehouses, e-commerce, supermarkets, and cold rooms. Optimizes space with stable, load-bearing construction. Custom sizes accepted. Factory direct supply, fast delivery, and reliable after-sales service.

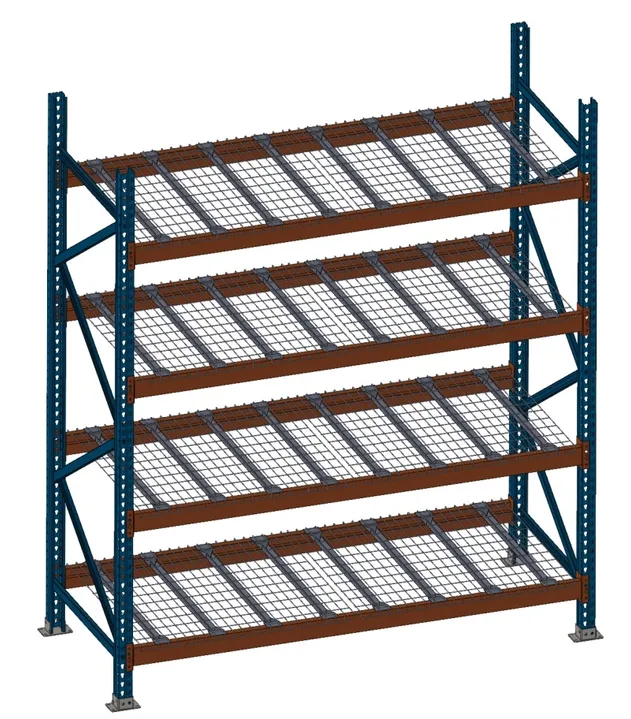

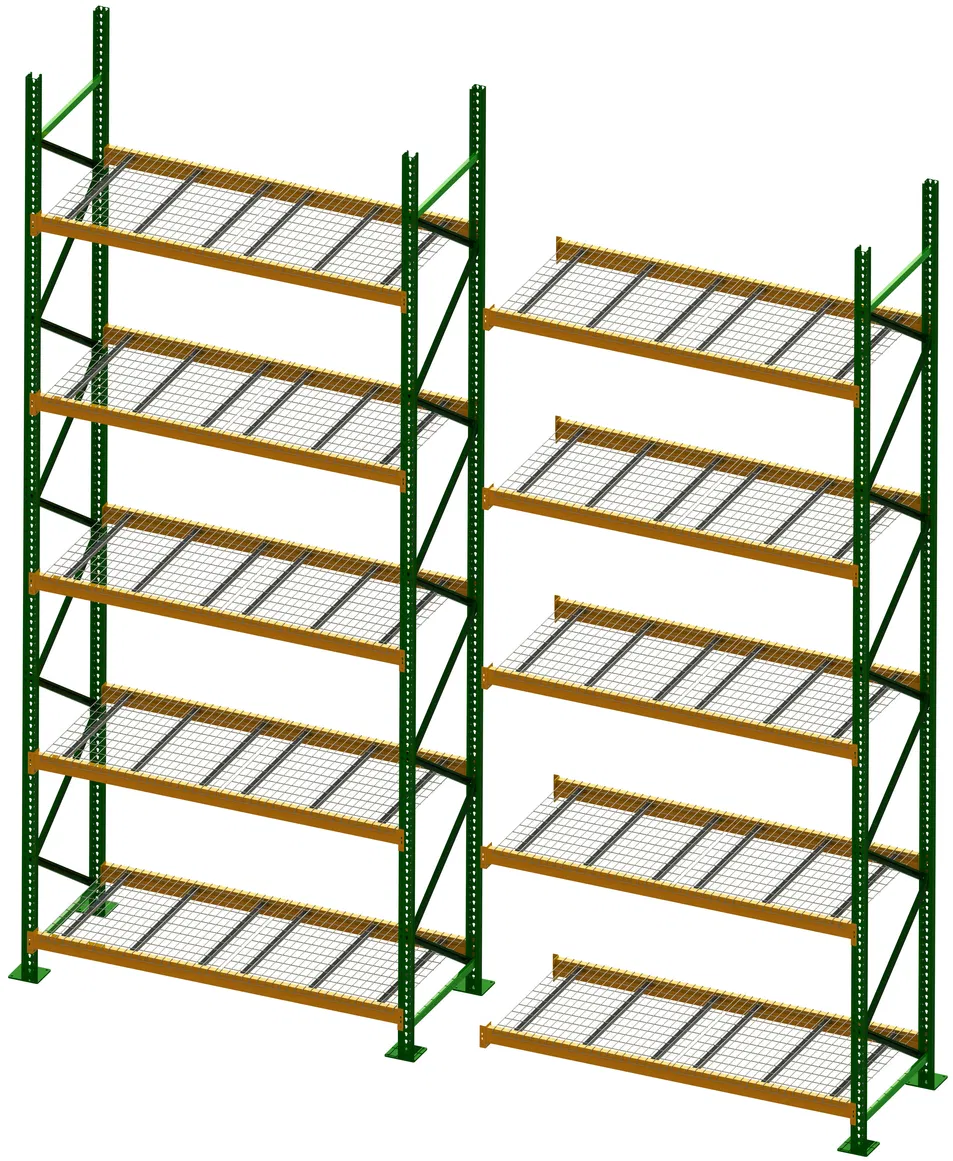

Starter Rack

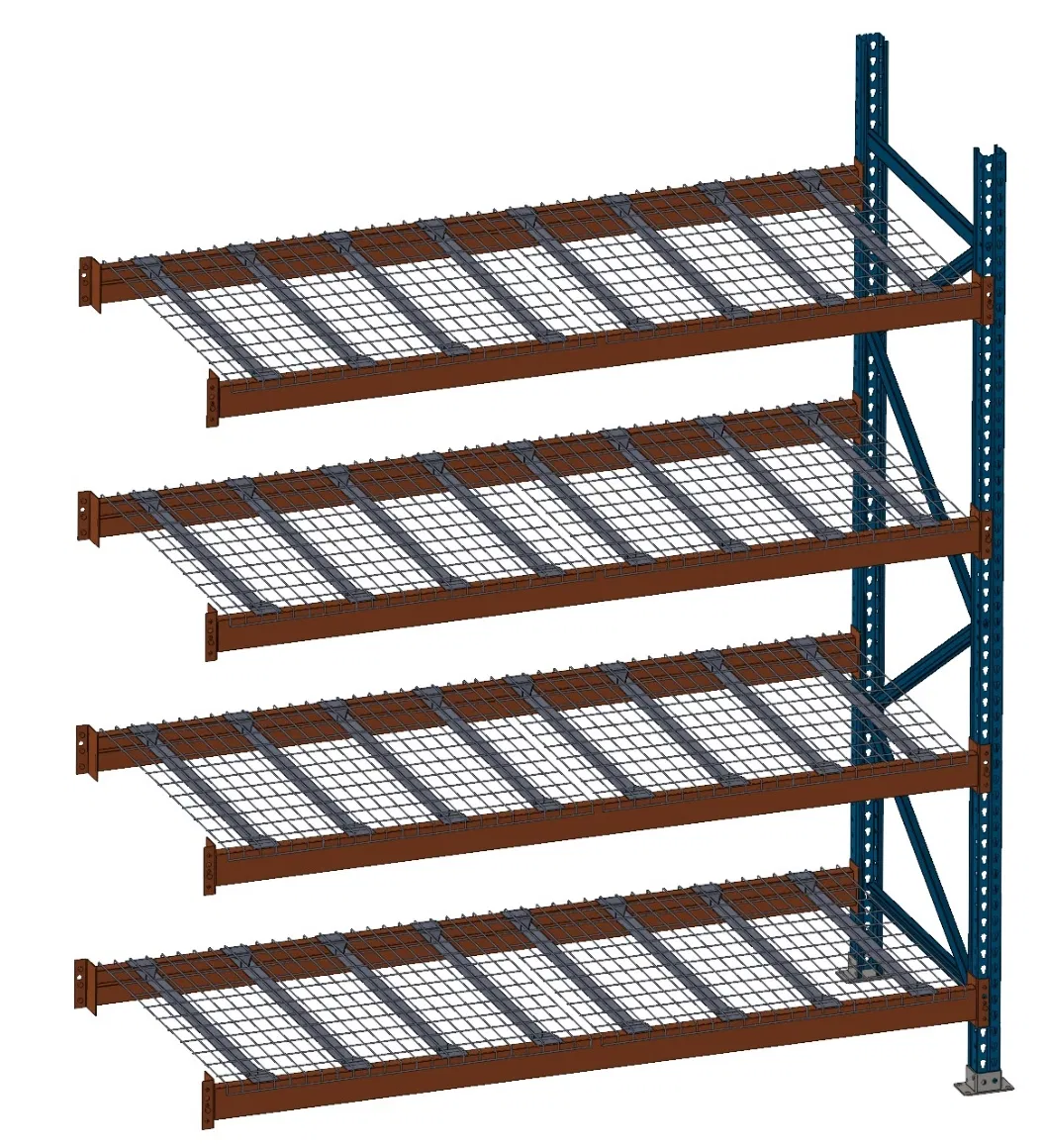

Add-on Rack

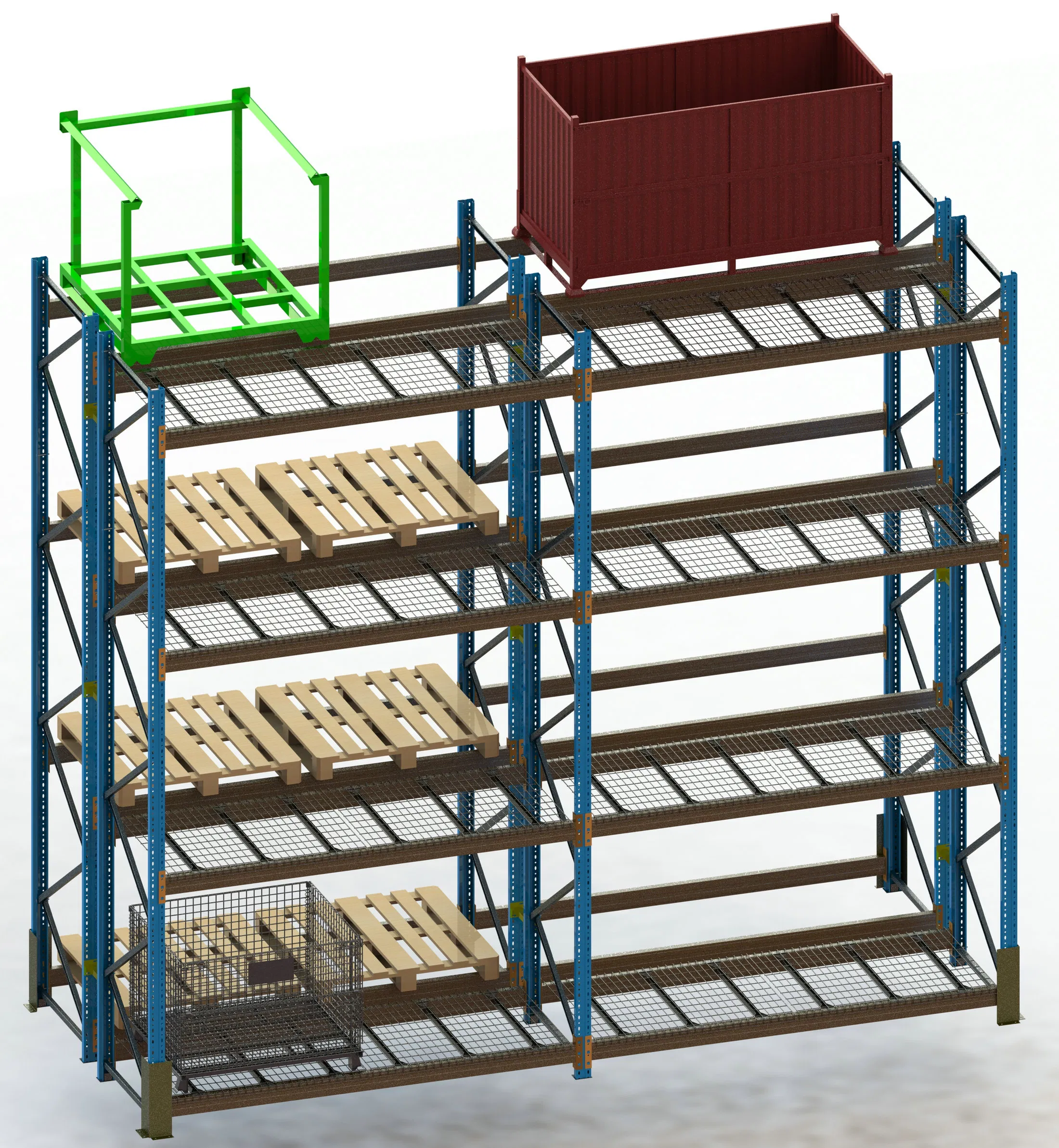

Usage
| Item | Specification |
|---|---|
| Product Name | Heavy Duty Steel Wire Mesh Shelving / Wire Decking Racking |
| Material | Q235B Cold Rolled Steel (Frame, Beams & Wire Mesh) |
| Surface Treatment | Electrostatic Powder Coating (Standard) / Hot-dip Galvanizing (Optional) |

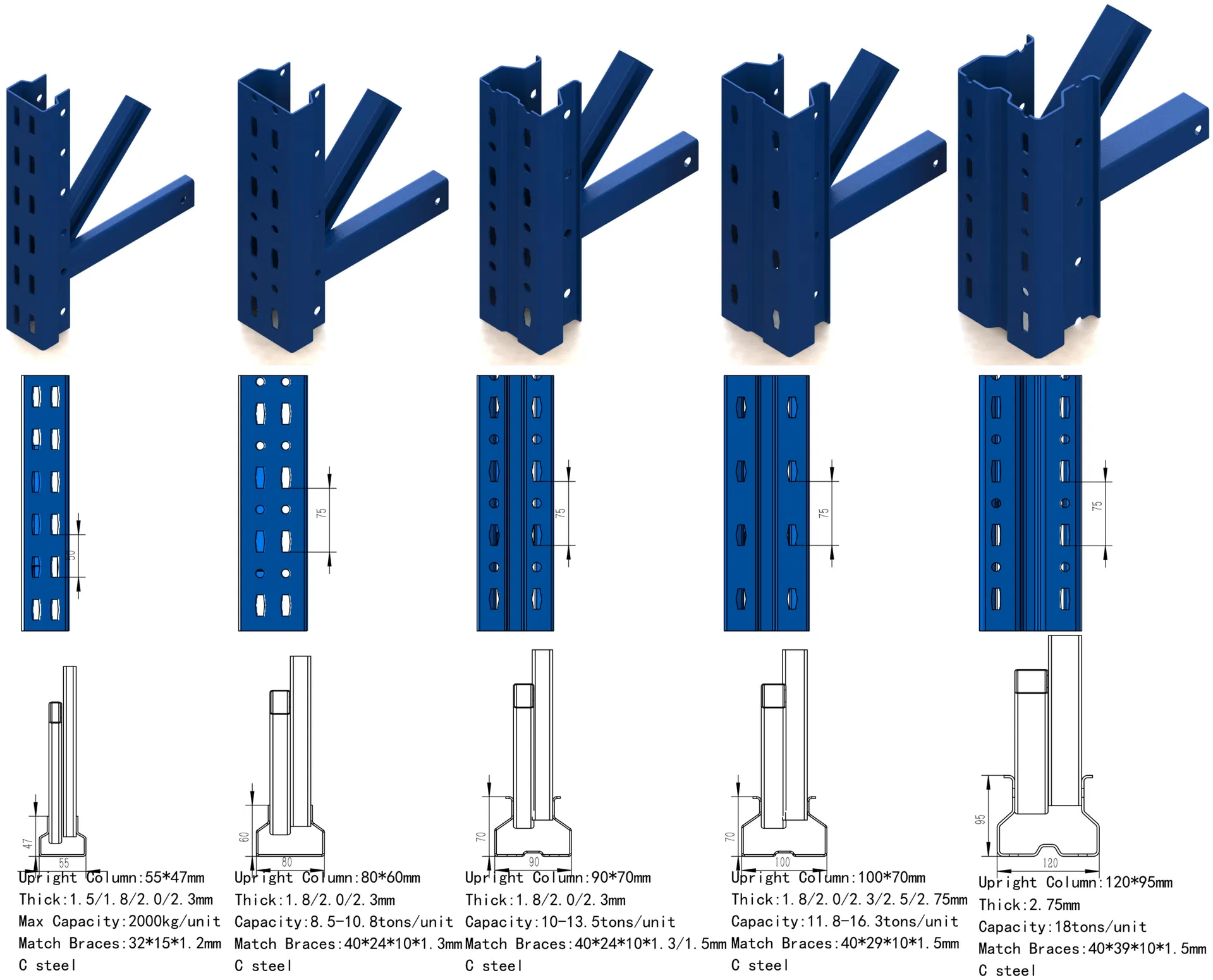

| Upright Post | 55*47mm / 80*60mm / 90*70mm / 100*70mm, Thickness 1.5-2.5mm, Teardrop Hole Design |

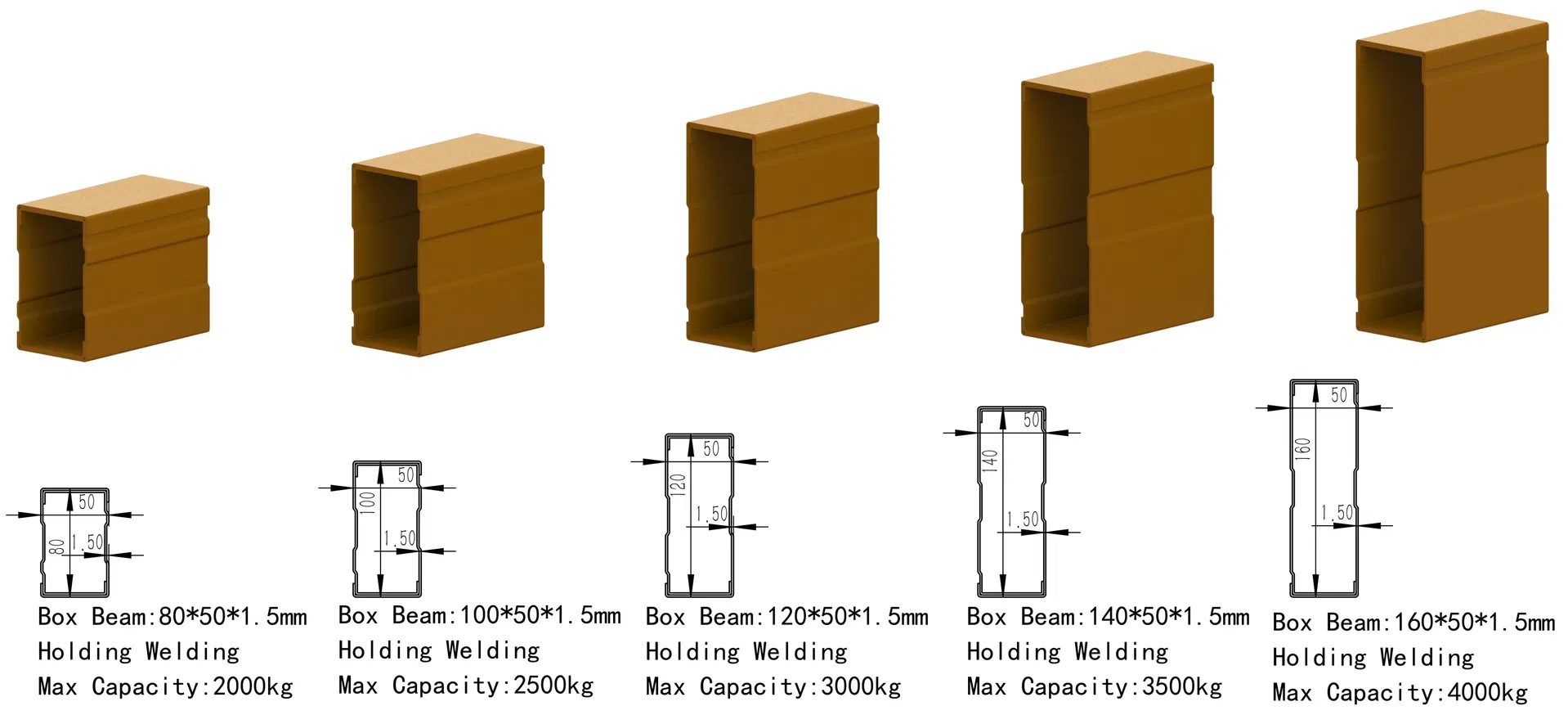

| Beam | P-type / Box Beam, Section 80×50 / 100×50 / 120×50 / 140×50 / 160×50mm, Thickness 1.5-2.0mm |

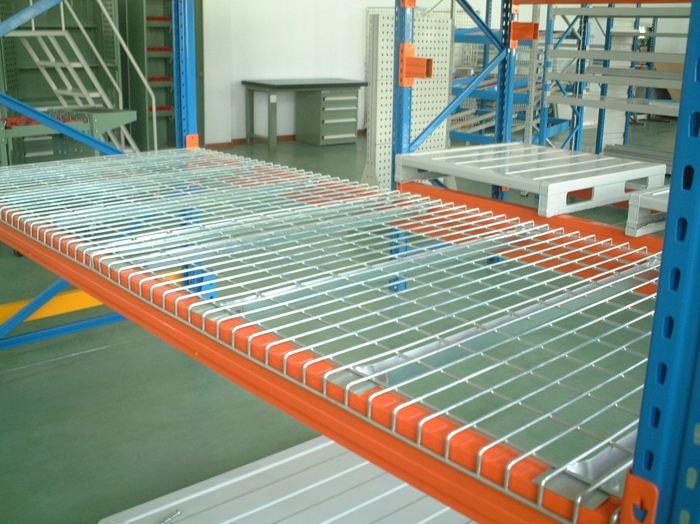

| Wire Mesh | Full Welded with U-shape Reinforcement, Mesh Size 50×50 / 50×100mm |
| Load Capacity | 300-1300kg per layer (Uniform Static Load, Customizable) |
| Standard Size | L1500/2000 × D600/800 × H2000/2500mm (Non-standard available) |
| Layers | 3-5 layers (Adjustable, no tools needed) |
| Installation | Tool-free Snap-in Assembly + Bolt Reinforcement |
| Color | RAL 5017 (Blue), RAL 7035 (Grey), RAL 3000 (Red) (Customizable) |
| Certifications | ISO9001, BV (Test Report Available) |
| Application | Factory Warehouse, E-commerce Fulfillment Center, Logistics, Auto Parts, Heavy Equipment Storage |
| Item | Specification |
|---|---|
| Product Name | Heavy Duty Steel Wire Mesh Shelving / Wire Decking Racking |
| Material | Q235B Cold Rolled Steel (Frame, Beams & Wire Mesh) |
| Surface Treatment | Electrostatic Powder Coating (Standard) / Hot-dip Galvanizing (Optional) |
| Upright Post | 55*47mm / 80*60mm / 90*70mm / 100*70mm, Thickness 1.5-2.5mm, Teardrop Hole Design |
| Beam | P-type / Box Beam, Section 80×50 / 100×50 / 120×50 / 140×50 / 160×50mm, Thickness 1.5-2.0mm |
| Wire Mesh | Full Welded with U-shape Reinforcement, Mesh Size 50×50 / 50×100mm |
| Load Capacity | 300-1300kg per layer (Uniform Static Load, Customizable) |
| Standard Size | L1500/2000 × D600/800 × H2000/2500mm (Non-standard available) |
| Layers | 3-5 layers (Adjustable, no tools needed) |
| Installation | Tool-free Snap-in Assembly + Bolt Reinforcement |
| Color | RAL 5017 (Blue), RAL 7035 (Grey), RAL 3000 (Red) (Customizable) |
| Certifications | ISO9001, BV (Test Report Available) |
| Application | Factory Warehouse, E-commerce Fulfillment Center, Logistics, Auto Parts, Heavy Equipment Storage |

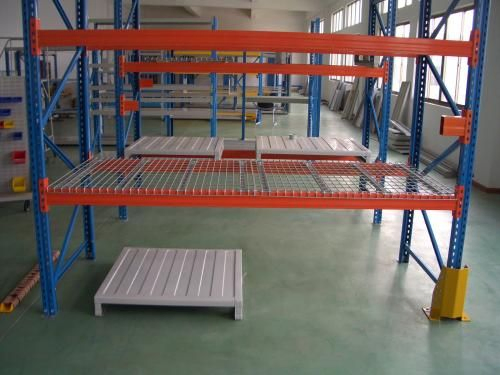

Our heavy duty steel wire mesh shelving is made of high-quality Q235B cold rolled steel, designed for industrial heavy-duty storage. It features high load capacity, stable structure, good ventilation and easy installation, widely used in warehouses, factories, logistics centers, auto parts shops and other storage places.
With teardrop hole uprights, the shelf height can be adjusted freely to meet different storage needs. The full-welded wire mesh with reinforcement ensures high strength and long service life. Surface treatment by electrostatic powder coating or hot-dip galvanizing makes it anti-rust and durable.
We support OEM & ODM customization, including size, load capacity, color and accessories. As a professional manufacturer, we provide stable quality, fast delivery and perfect after-sales service.

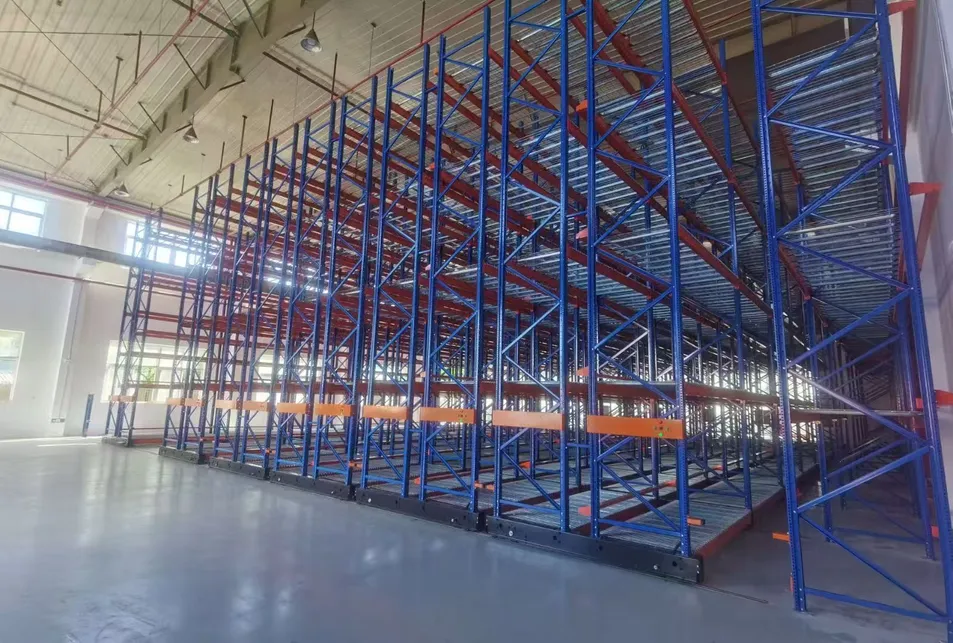

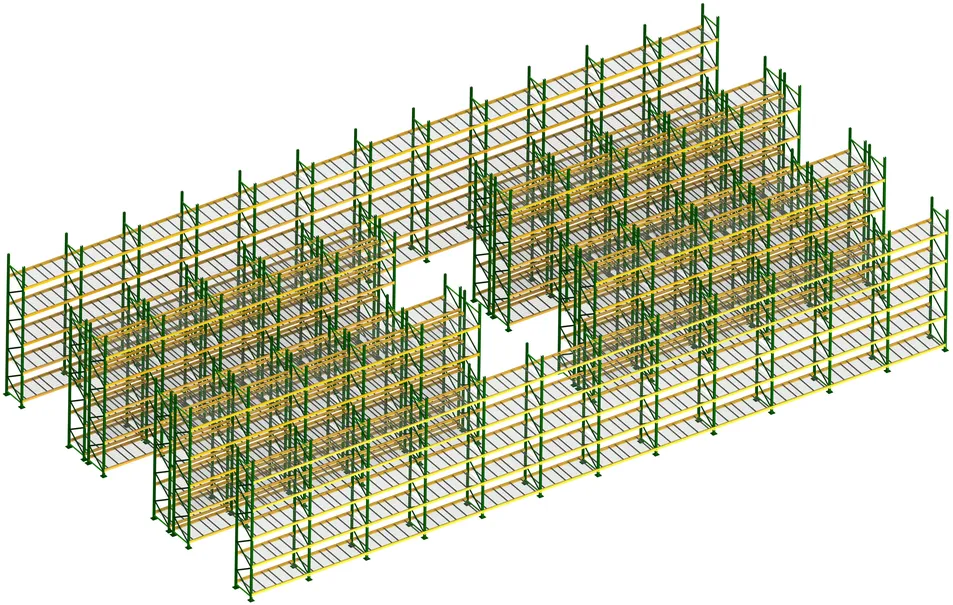

Shanghai project solutions for Electric Mobile Shelving--Heavy Duty Rack with Wire Mesh Decks.
