Product Description

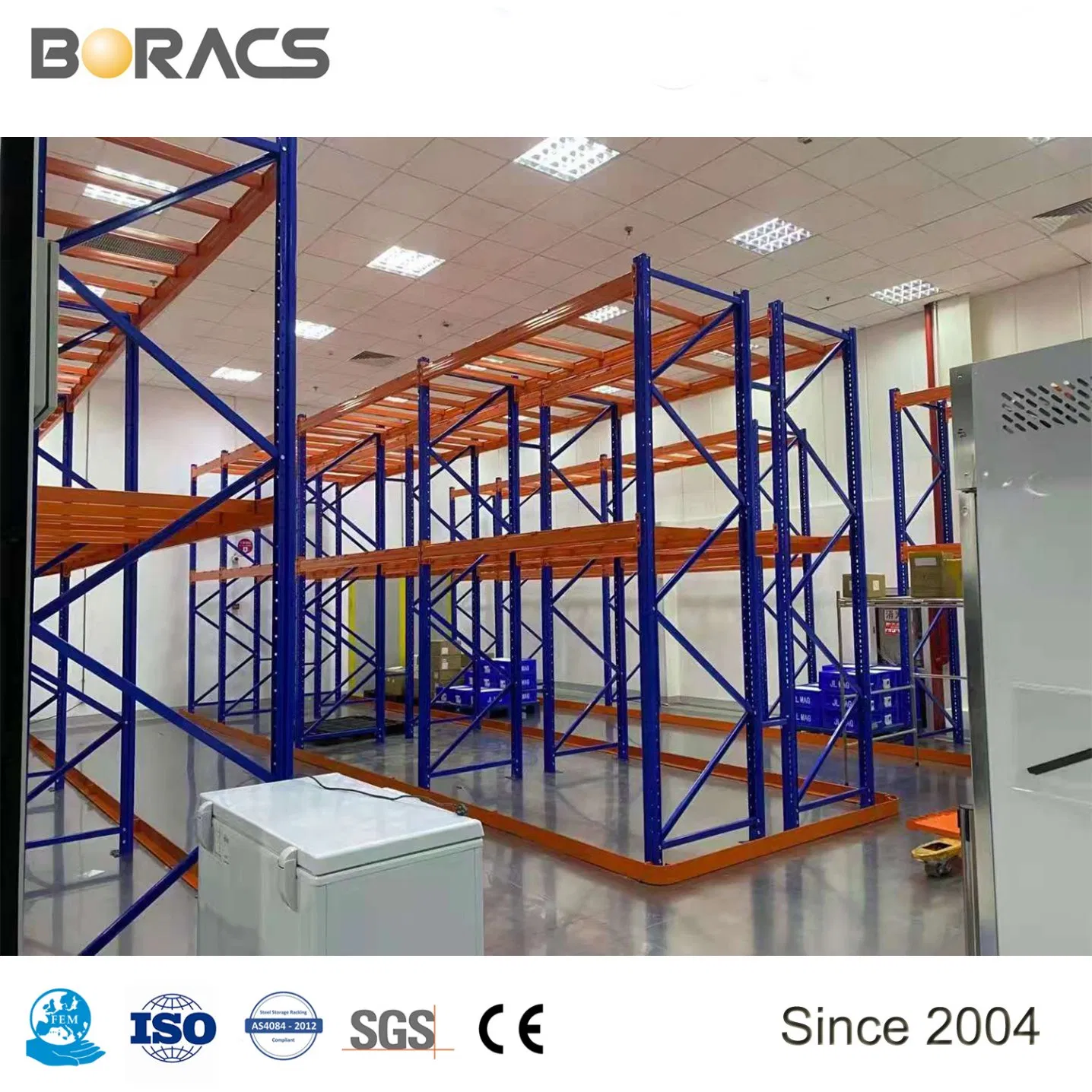

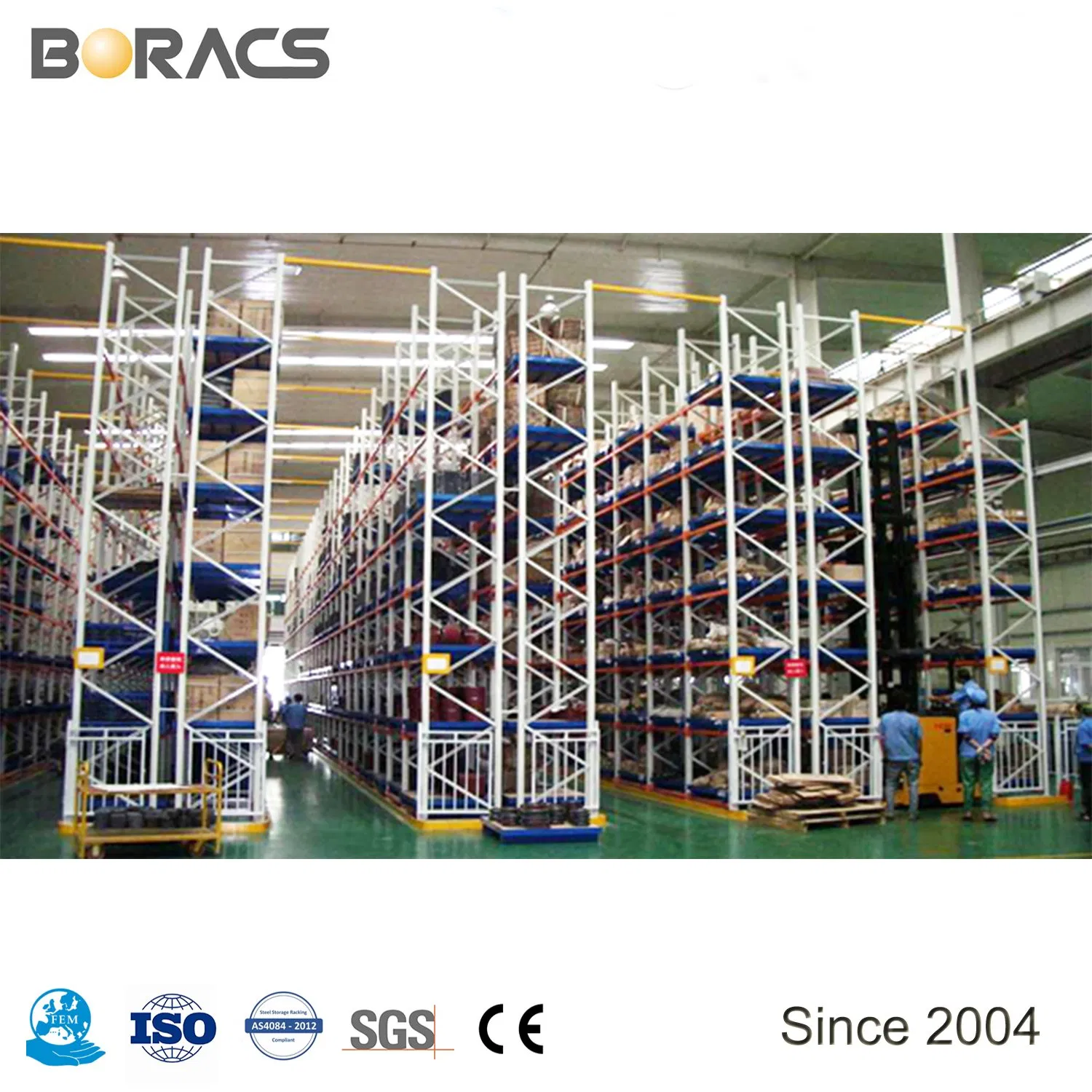

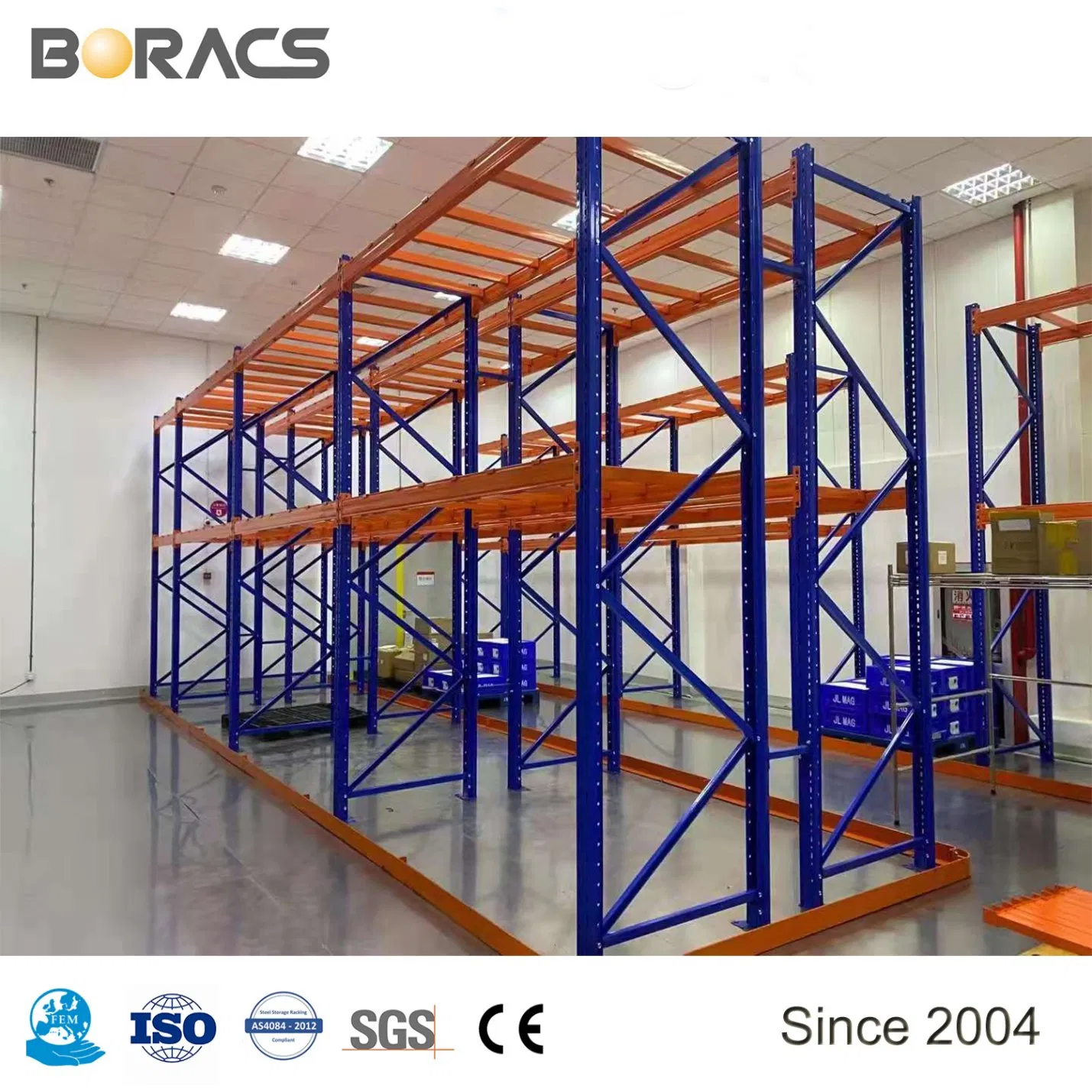

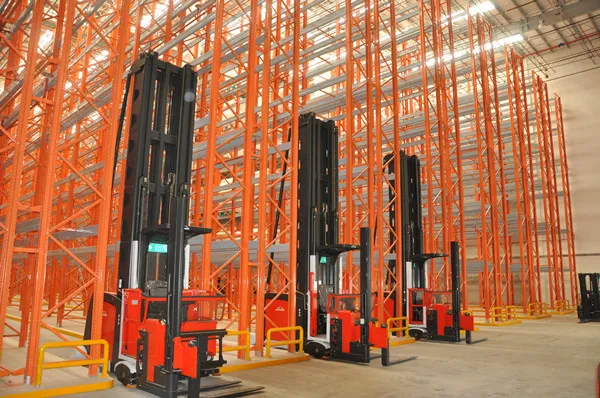

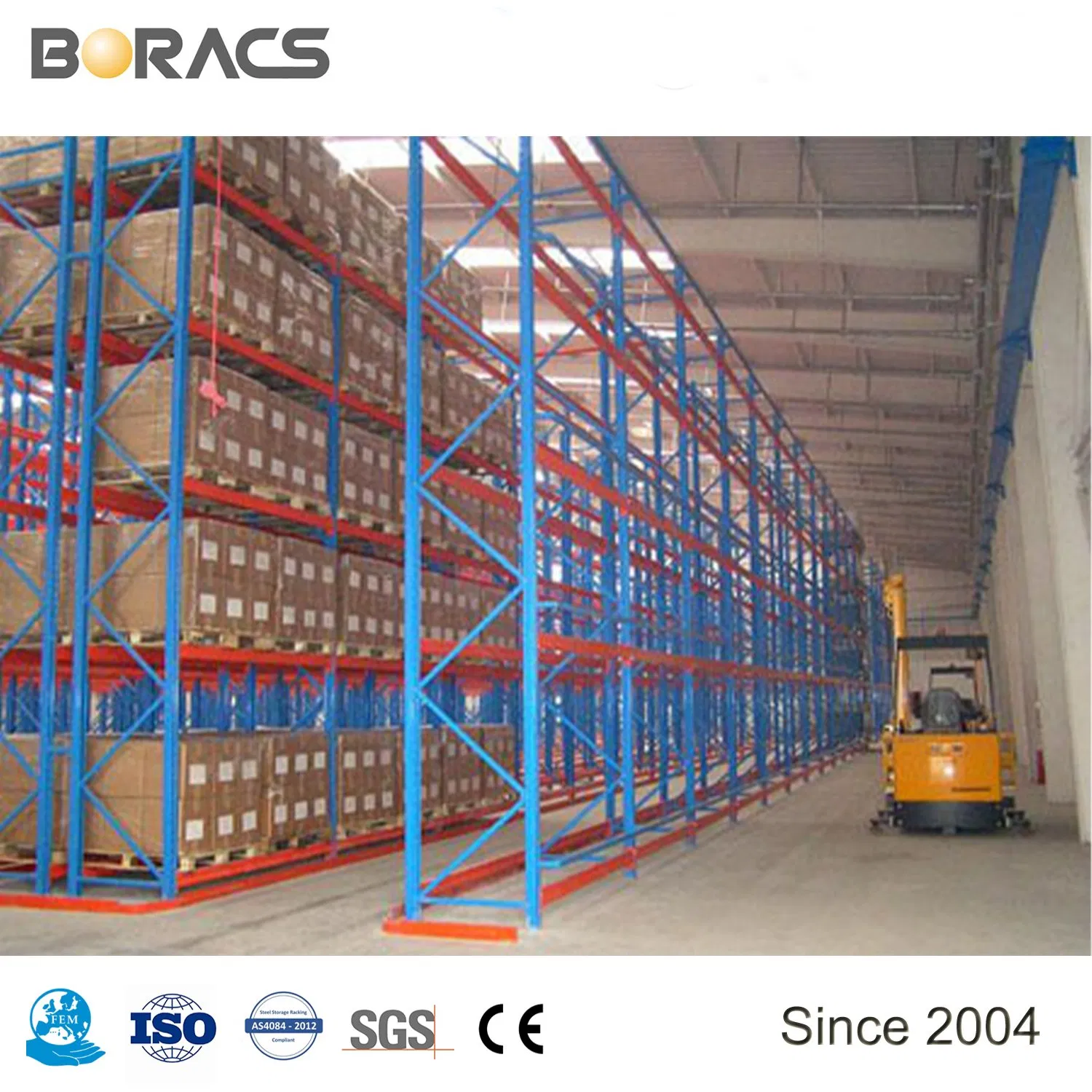

Very Narrow Aisle Racking / VNA Rack
1. Very narrow aisle pallet rack (abbreviated VNA pallet rack) has narrow aisle than selective pallet rack.
2. VNA pallet rack has higher storage capability than selective pallet rack. So, it makes better use of warehouse space.
3. Its cost is a little higher than selective pallet rack.
4. Averagely, the load per level ranges from 500 to 4000kgs. And the height could be as high as 12 meters or even more.
5. VNA pallet beam height could be adjusted easily, it fits different product height.

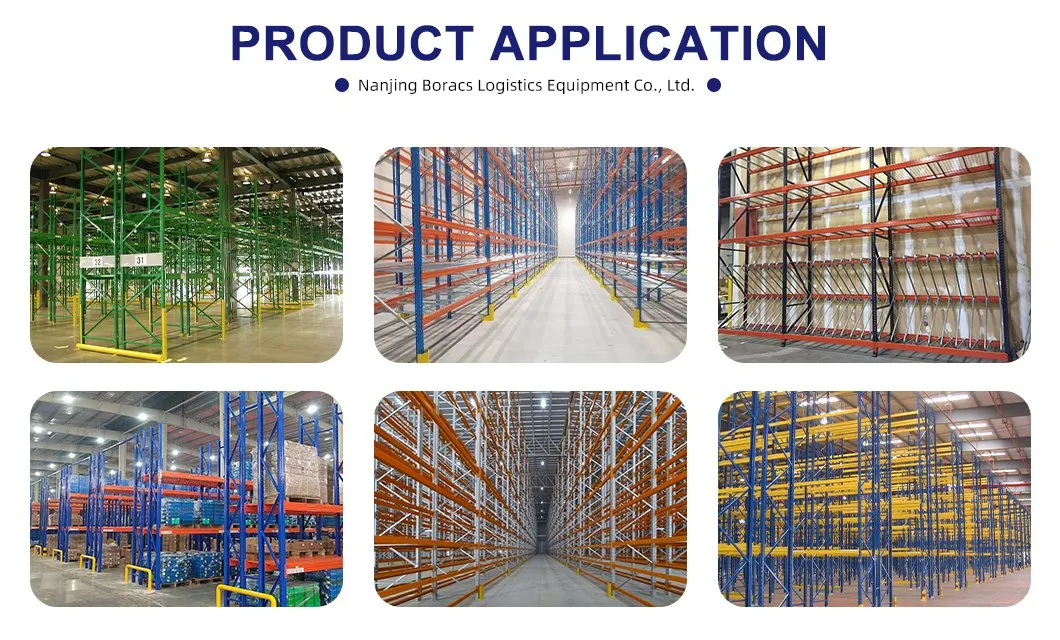

6. It is used in machinery manufacturing industry, logistics center, distribution center, food industry, chemical industry, electronic industry, furniture industry, warehouse supermarket, etc.

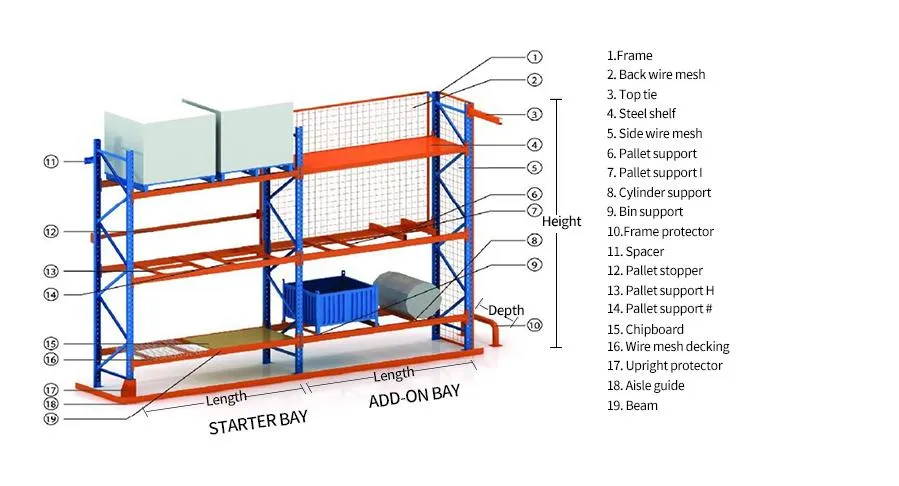

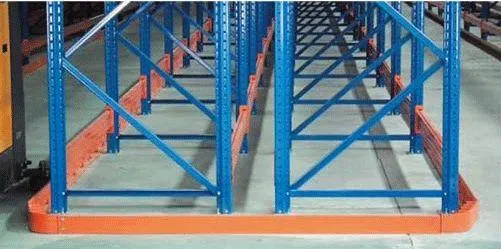

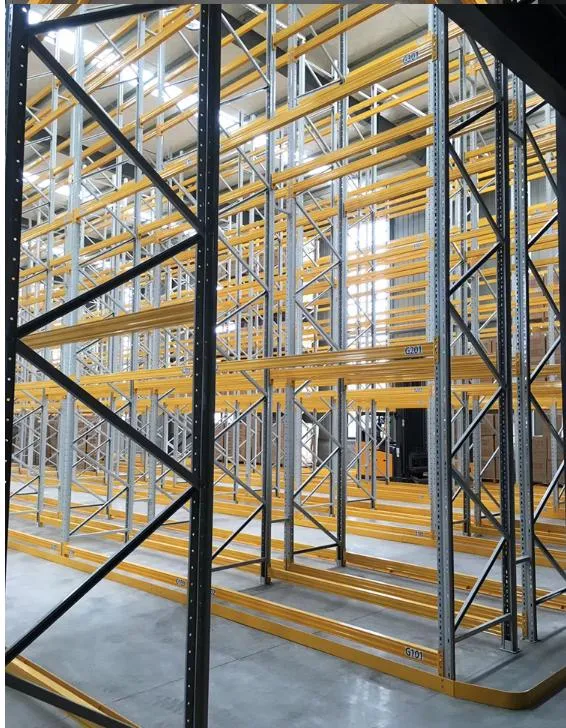

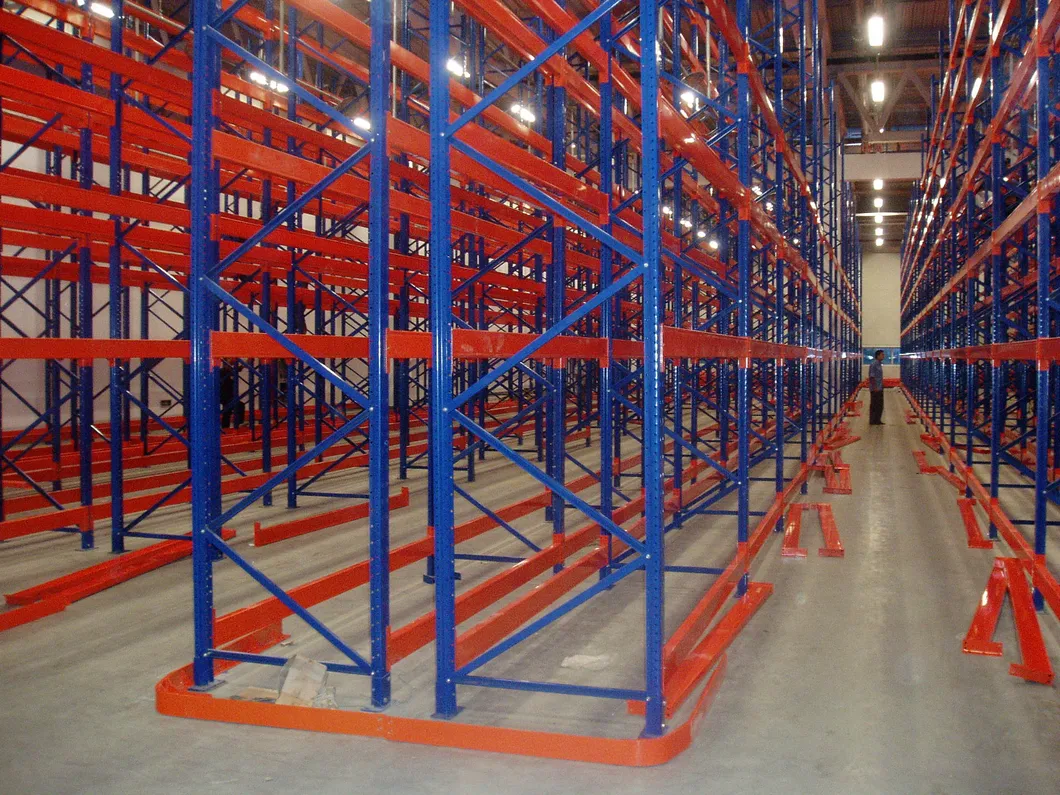

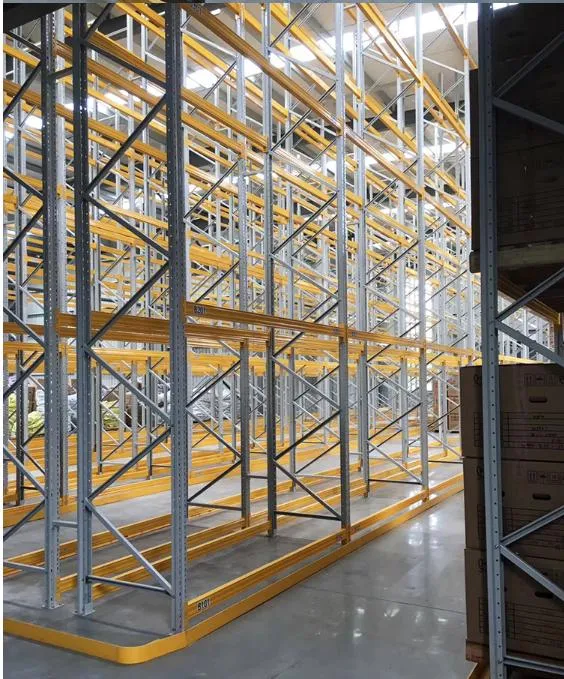

Very narrow aisle pallet rack is made up of upright (or called post or column), beam, horizontal and diagonal bracing, spacer, back bracing, guide rail, etc. Upright, horizontal and diagonal bracing, and beam are the necessary components, other are optional. It is with bolted structure.
| Specification Details |
Parameters |
| Rack Type |
VNA very narrow aisle pallet rack |
| Rack Cost |
Medium Low |
| Pick-up Mode |
Flexible |
| Structure |
Bolted, welded structure available |
| Forklift Aisle |
Around 1700mm (depends on customer's forklift parameter) |
| Load Capacity & Dimension |
Load capacity |
≤4000kgs/beam pair |
| Length |
950mm ~ 3700mm |
| Depth/Width |
700mm ~ 1500mm |
| Height |
≤12000mm |
| Level |
≥2 |
| Components |
Core components |
Frame (upright/column, bracing, base plate, fasteners), beam, aisle guide rail |
| Optional components |
Spacer, wire mesh decking, board, back stopper, top tie, side mesh, pallet support, back bracing, etc. |
| Core Components Specification |
Upright section |
Face |
80mm, 90mm, 100mm, 120mm |
| Height |
60mm, 68mm, 70mm, 75mm |
| Thickness |
1.5mm, 1.8mm, 2.0mm, 2.3mm, 2.5mm, 3.0mm |
| Adjust step |
75mm |
| Beam section |
Height |
80mm, 100mm, 110mm, 120mm, 130mm, 140mm, 155mm, 160mm |
| Width |
50mm |
| Thickness |
1.5mm, 2.0mm |
| Material |
Q235 (ss400), Q355 (S355B, S355JR) |
| Finish |
Epoxy resin electrostatic spraying (powder coating) |
| Coating thickness |
No less than 60um average thickness |
| Color |
Ral5015 (sky blue), Ral5005 (signal blue), Ral2004 (pure orange), Ral1021 (yellow), Ral7035 (light grey) |
The Main Advantages Of Narrow Aisle Systems
- Fast-order picking processes
- Optimized utilization of available warehouse space
- 100% accessibility to individual pallets
- High level of operational throughput
Benefits Of Narrow Aisle Racking
- Best configuration for maximum storage potential
- 100% immediate accessibility to all individual pallets
- Significantly better utilization of overall facility volume
- Lower occupancy rates per pallet position stored
- Additional cost of specialist forklift offset by the added value of improved density
Particularly Suited To
- Pallets of uniform size
- Warehouses with high roof clearance and level floors
- Automated systems integration
Company Profile

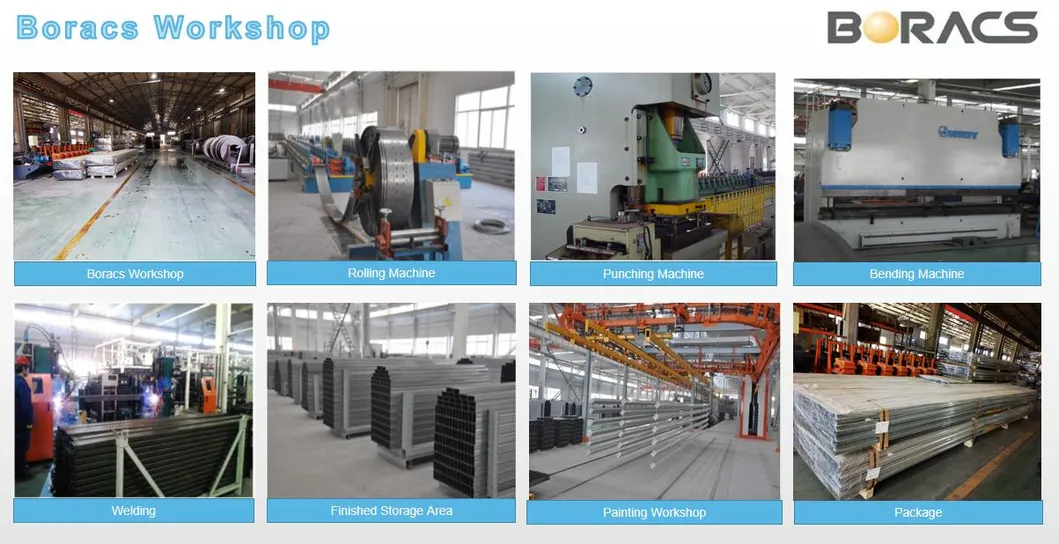

We are a racking systems manufacturer. Our factory was established in 2004 in Shanghai and moved to Nanjing in 2009. We specialise in the international export market. Over the years, we have installations in over 30 countries, some of them shipped to end customers' warehouses, mostly installed by our resellers around the world.
We strive to serve our clients and resellers with quality products, competitive prices, and prompt services, keeping all our resellers onboard our family since day one. We conduct regular Tensile and Yield Strength tests to ensure that only the best qualified materials are used. Our Selective and Cantilever racks are subjected to rigorous tests in compliance with European FEM and Australian Standards.
