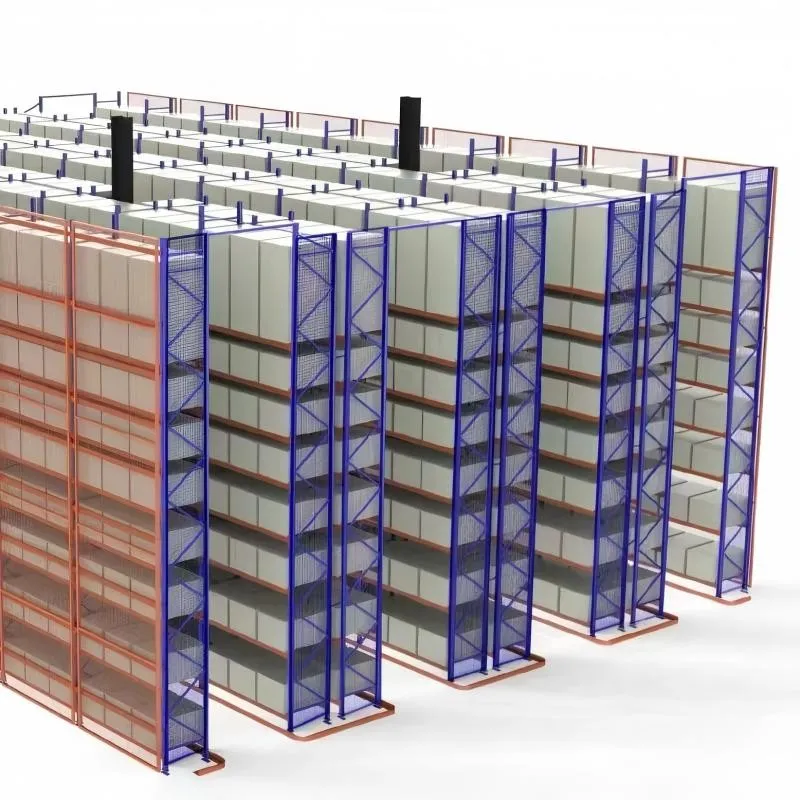

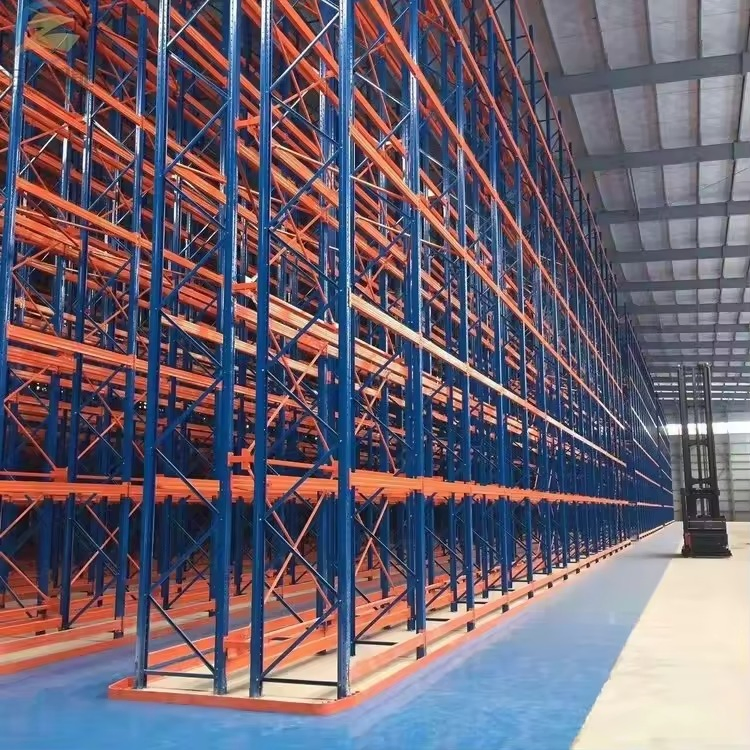

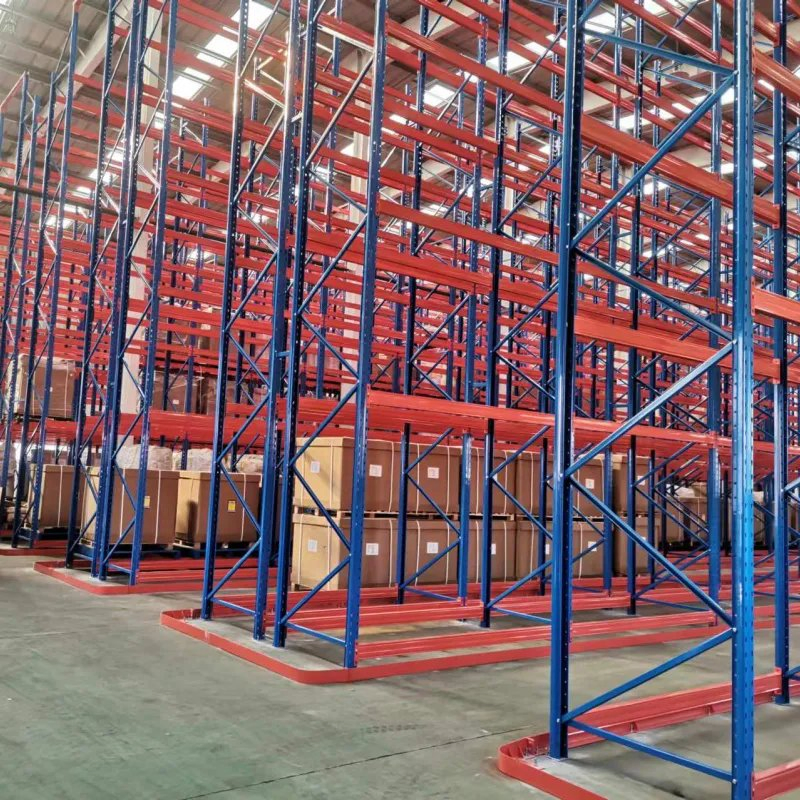

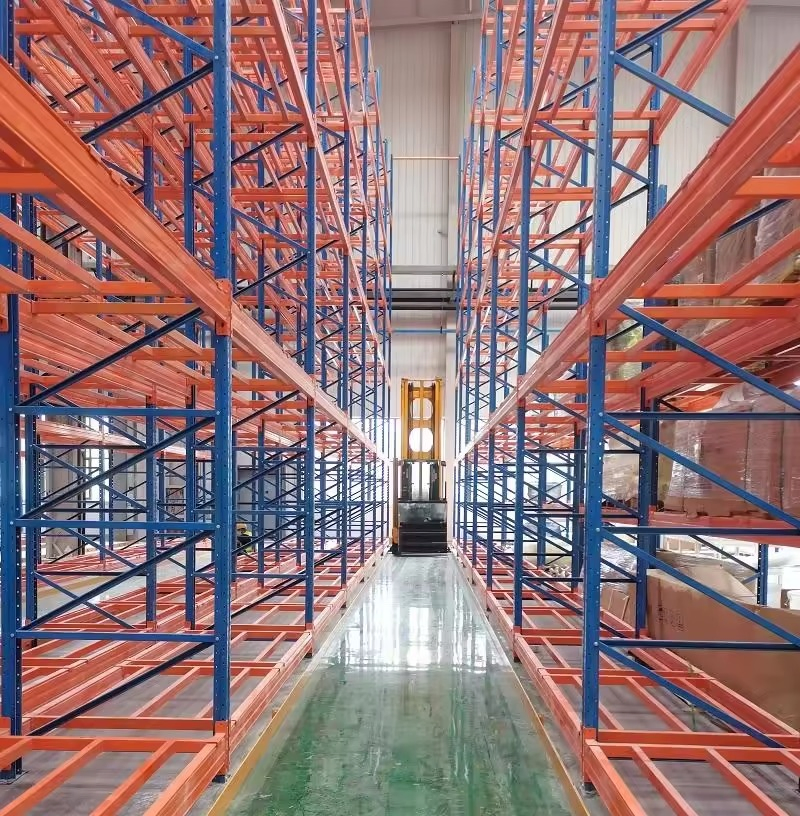

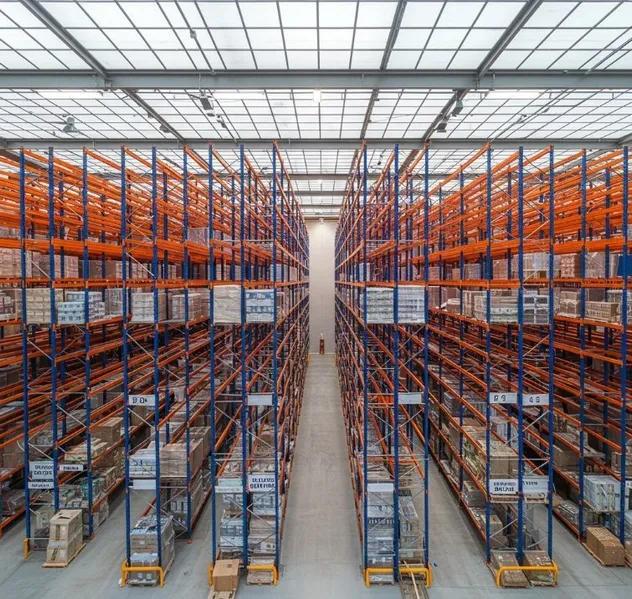

Narrow Aisle (VNA) Racking is an advanced warehouse storage solution designed to maximize storage capacity by significantly reducing aisle width while maintaining direct access to every pallet location.
Compared with conventional selective pallet racking, VNA racking can increase warehouse storage capacity by up to 40% without requiring additional floor space. The system is operated using specialized VNA forklifts or turret trucks, allowing efficient pallet handling in very narrow aisles.
VNA racking is an ideal choice for warehouses seeking higher storage density, improved inventory management, and optimized operational efficiency.
| Parameter | Specification Details |
|---|---|
| Material | Q235 steel |
| Type | Narrow Aisle (VNA) Racking |
| Reference size |
Length: 2000/2400/3000mm (customizable) Width: 800/900/1000/1200 mm (customized size accepted) Height: 1800 to 11550mm options etc. |
| Material reference |
Upright: 5547, 9070, 8040, 7011016, thickness: 1.8-2.0mm Beam: 8040, 8050, 10050, 12050, 14050, 160*50, thickness 1.5-2.0mm |
| Loading capacity | 300~5000kg/layer |
| Color | Blue, white, black, yellow, orange, customizable |
| OEM/ODM SERVICE | Acceptable |
| Surface treatment | Electrostatic Powder Coating, Corrosion Resistant, Anti-Rust Treatment |
| Certification | ISO9001/CE |
| Delivery Time | 15 working days |

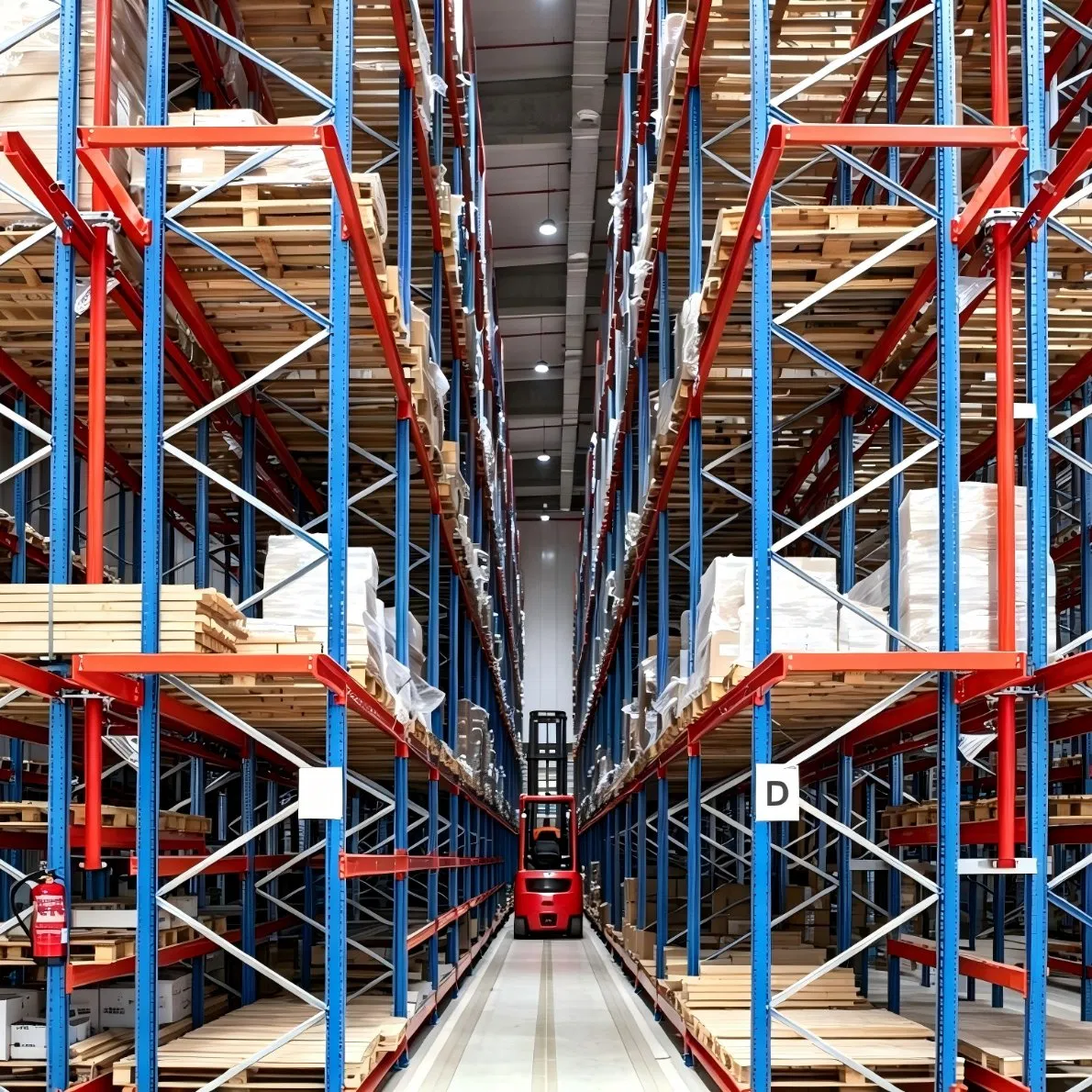

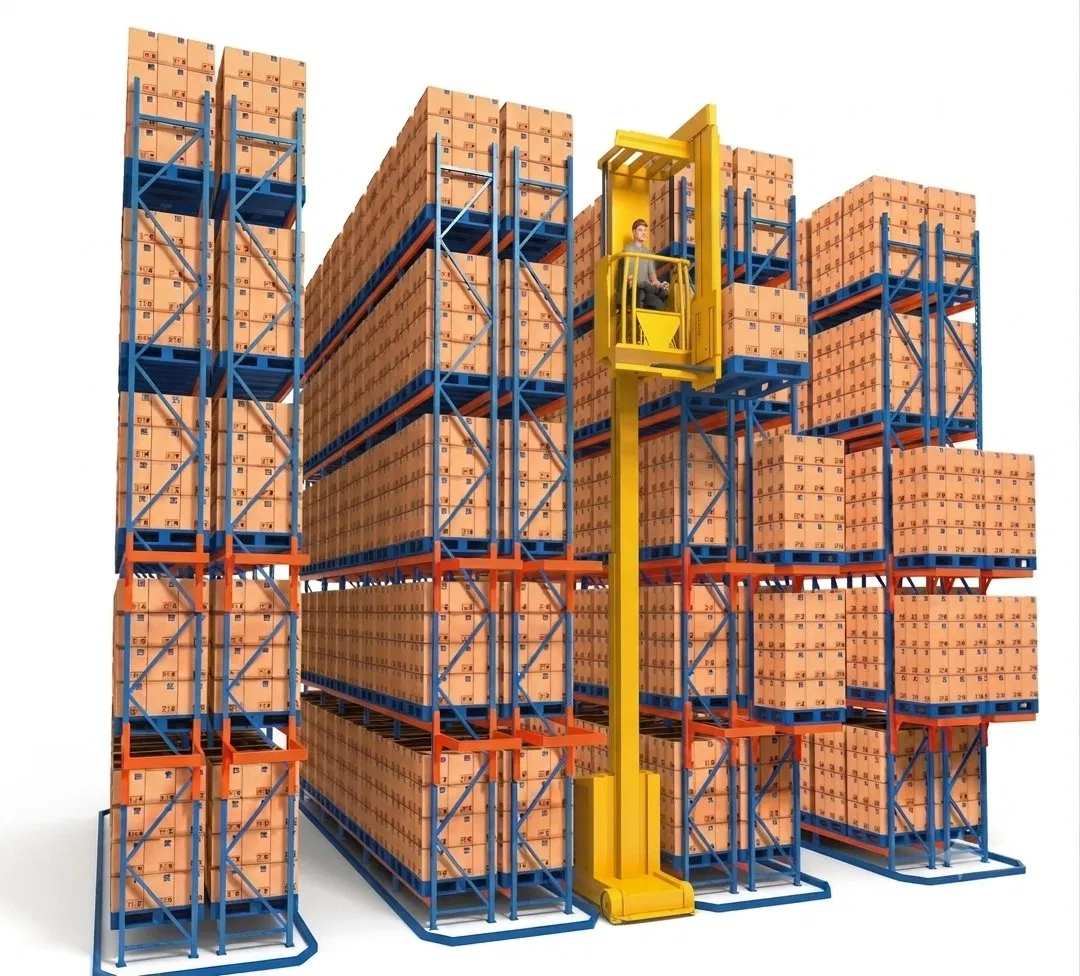

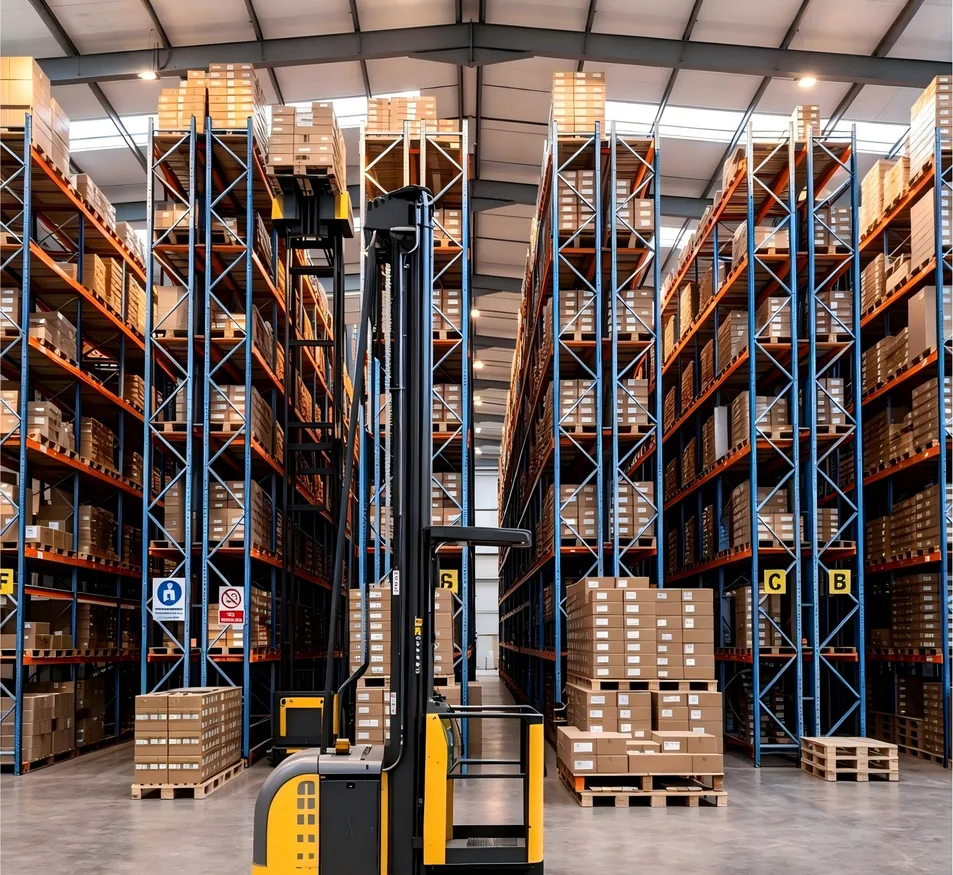

A VNA racking system is a high-density warehouse storage design that compresses the aisle space between standard selective racks, utilizing specialized turret trucks or articulated forklifts to stack and retrieve pallets efficiently.
Compared to standard selective racking systems, a VNA racking system can increase your warehouse floor space utilization and overall storage capacity by up to 40% without changing the building footprint.

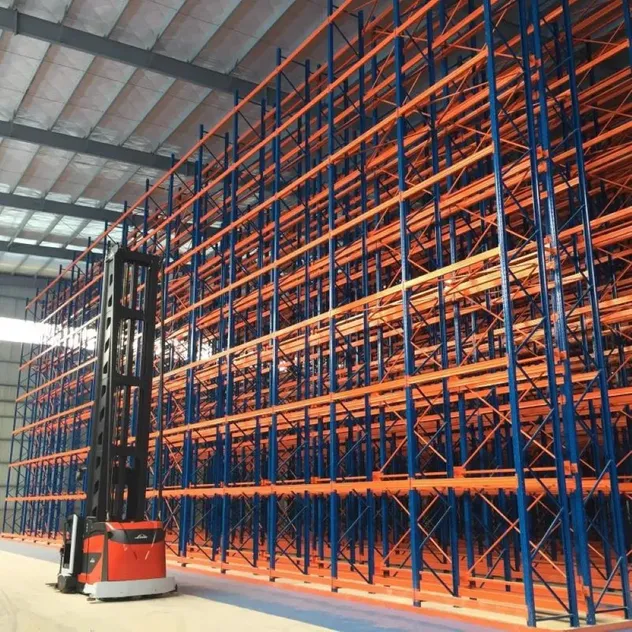

Specialized handling equipment is required, such as Very Narrow Aisle (VNA) forklifts, turret trucks, or man-up order pickers, which can operate smoothly in narrow aisles as small as 1.5 to 1.8 meters.
The loading capacity is highly customizable and ranges from 300kg to 5000kg per layer, depending on the thickness of the steel profiles and the structural requirements of your heavy-duty cargo.
The racks are manufactured from high-quality Q235 structural steel and treated with electrostatic powder coating to ensure reliable corrosion resistance, durability, and anti-rust protection over years of use.
Yes, because turret trucks reach high vertical elevations in tight aisles, they require a highly flat floor. Additionally, wire guidance systems or mechanical steel guide rails are installed along the aisles to ensure safe forklift operation.
