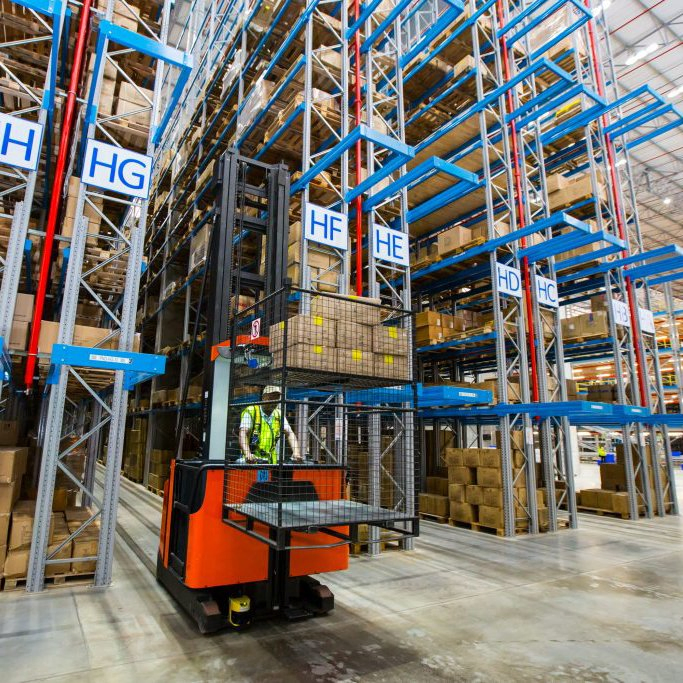

Very Narrow Aisle Heavy Duty Vna Pallet Racking Warehouse Storage Vna Racking

1 / 5

Very Narrow Aisle Heavy Duty Vna Pallet Racking Warehouse Storage Vna Racking

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

WD_VNAR_001

Usage

Tool Rack, Tools, Industrial, Warehouse Rack

Material

Steel

Structure

Rack

Type

Vna Rack

Mobility

Fixed

Height

5-15m

Weight

1000-6000kgs

Closed

Open

Development

Conventional

Serviceability

Common Use

Design Service

Free CAD Service Available

Back-up Service

Installation Drawing/on-Site Instruction

Container Load

15-18tons/1*20' Container, 20-25tons/1*40' Contain

Certification

ISO9001/CE

Lead Time

Within 15 Work Days

Transport Package

Air Bag; Air Bubble; Wooden Pallet, etc.

Specification

Customizable

Trademark

As requested

Origin

Nanjing

HS Code

73089000

Production Capacity

20000tons/Month

Product Description

What Is Very Narrow Aisle Pallet Racking (VNA)?

Very narrow aisle pallet racking condenses standard pallet racking into a smaller area which is conspired to generate a high-density storage system from the vertical level.

Key Features

Direct access to all the unit loads
Save up to 40% of space by reducing the work aisles
Simple assembly, disassembly, and re-adaptation of load levels
Compatible with any type of goods, by weight or volume
Allows pallet storage at floor level on the lowest level of the racking.
Flexible enough to install stacker cranes.

Specification

Standard Size	L2300D1000H4500 and size can be customized as your request
Height	1500-8000mm or Customized
Width/Depth	400-1500mm or Customized
Length	1500-3200mm or Customized
Color	In default, the Upright frame is blue, and the Beam is orange, which can be customized.
Raw Material	High-quality Q235 cold-rolled steel
Upright-Section	80601.5/1.8/2.0mm,90651.5/1.8/2.0mm, 100702.0/2.5mm, 120952.0/2.5mm, etc.
Beam-Section	8045mm, 10045mm, 12045mm, 14045mm,16045mm,18045mm etc.
Layers	Customizable
Pitch Holes	75mm
Loading Capacity	1000~6000kgs or 2200~13200lbs
Surface Treatment	Powder coated
Packaging	Air bubble, Wooden Case, etc.

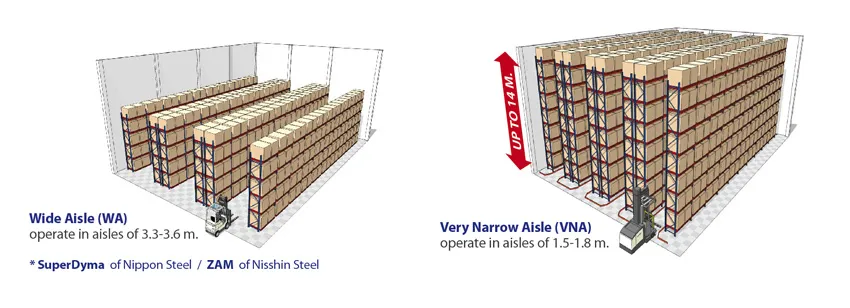

Very Narrow Aisle Heavy Duty Vna Pallet Racking Warehouse Storage Vna Racking Detail

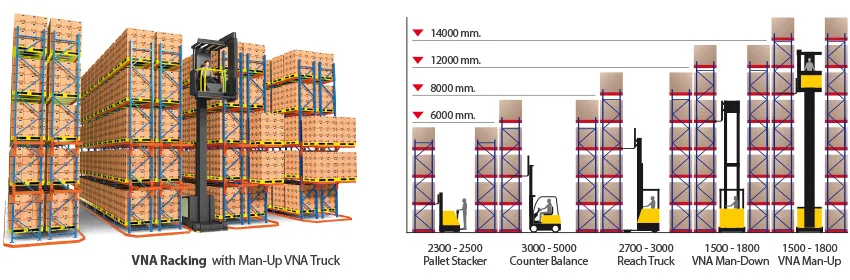

Very Narrow Aisle Heavy Duty Vna Pallet Racking Warehouse Storage Vna Racking Layout

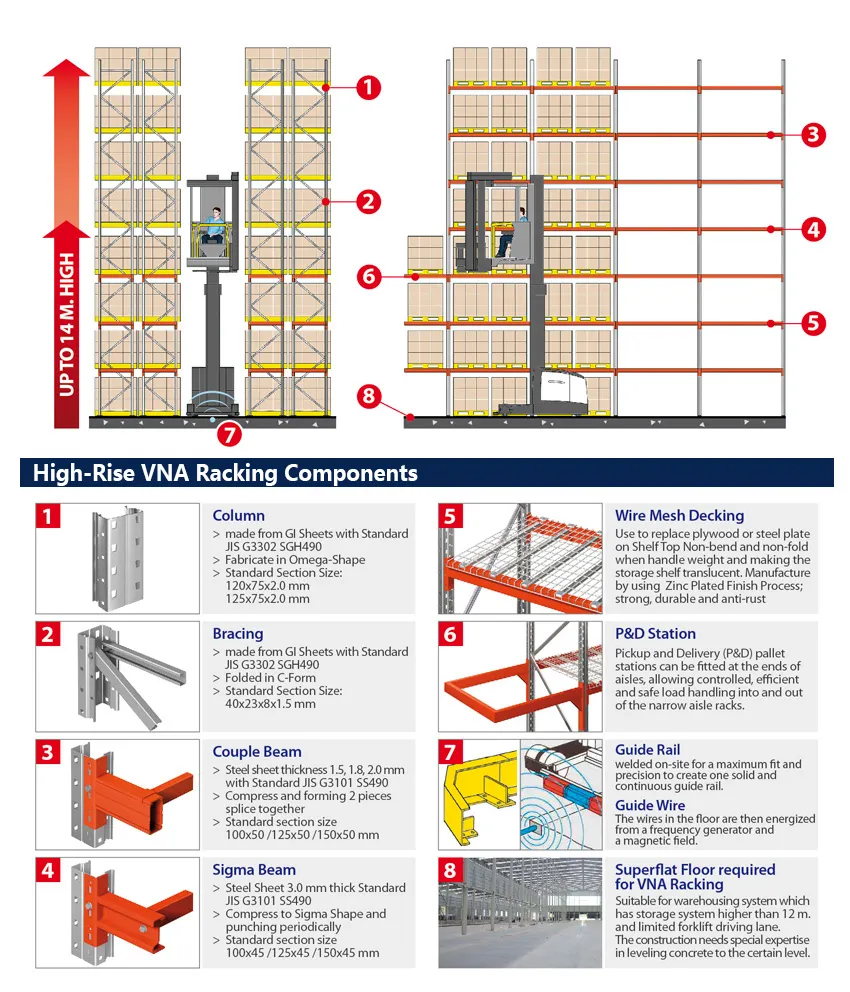

Very Narrow Aisle Heavy Duty Vna Pallet Racking Warehouse Storage Vna Racking Specifications

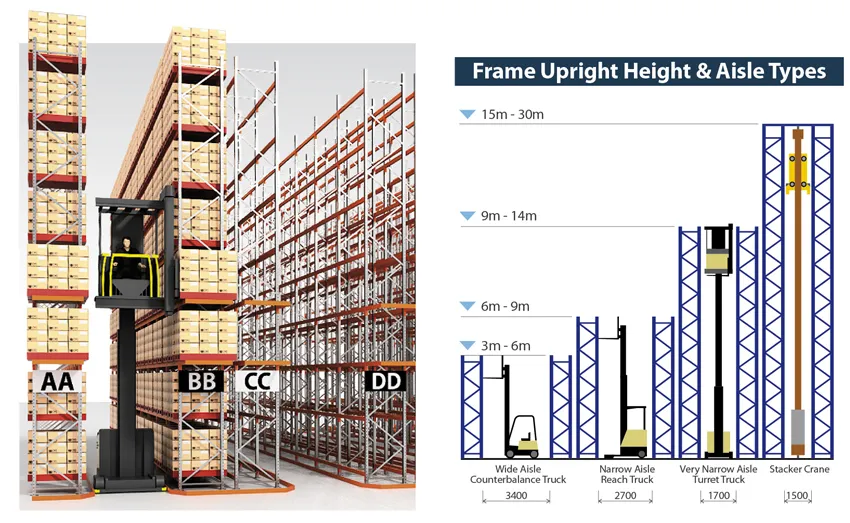

Very Narrow Aisle Heavy Duty Vna Pallet Racking Warehouse Storage Vna Racking Structure Diagram

FAQ

[Q] What is the production capacity of the factory?

About 20,000 tons per month.

[Q] How long is the delivery time?

Delivery time depends on your package. Normally, the delivery time is 25 - 45 days. Depending on the quantity, we will calculate the most reasonable and fastest production and delivery time. Please check with our sales representative for the most accurate timing.

[Q] What standard storage products do you export?

Our main export product lines include:
- Selective Racking: teardrop & traditional options
- Cantilever Racking: traditional design
- ASRS Systems: Radio Shuttle ASRS, Crane-based ASRS, and Four-way shuttle ASRS
- Double deep, Drive-in, and VNA systems
- Mezzanine floors
- Steel Pallets: powder coated, galvanized, and hot-dipped galvanized options
- Processing details of mechanical equipment.

[Q] To which countries have the storage racks been exported?

Our international standard storage racks have been exported to global markets such as the US, Switzerland, Australia, Denmark, India, the Netherlands, Pakistan, Mauritius, and Southeast Asian countries including Cambodia, Thailand, Indonesia, Singapore, and Malaysia.

[Q] What international trade transaction terms are offered?

We offer EXW, FOB, and CIF terms. We can handle and arrange most international transaction requirements depending on specific order details.

[Q] What are the standard payment terms?

Depending on actual conditions and order value, we offer reasonable payment terms. Generally, our standard terms are 50% T/T in advance as a deposit, and 50% T/T against a copy of B/L as a balance.
