Heavy Duty Storage Vna Pallet Rack for Warehouse with Narrow Aisles

1 / 5

Heavy Duty Storage Vna Pallet Rack for Warehouse with Narrow Aisles

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO. KKVNA0001

Usage Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack

Material Steel

Structure Rack

Type Pallet Racking

Mobility Adjustable

Height 5-15m

Weight 500kg-1500kg

Closed Open

Development Conventional

Serviceability Common Use

Surface Treatment Powder Coating

Feature Corrosion Protection

Color Customized

Use Warehouse Storage

Transport Package Packed in Bundles with Pallets

Specification Customized or according to pallet sizes

HS Code 7308900000

Production Capacity 50, 000 Mt/Month

Product Description

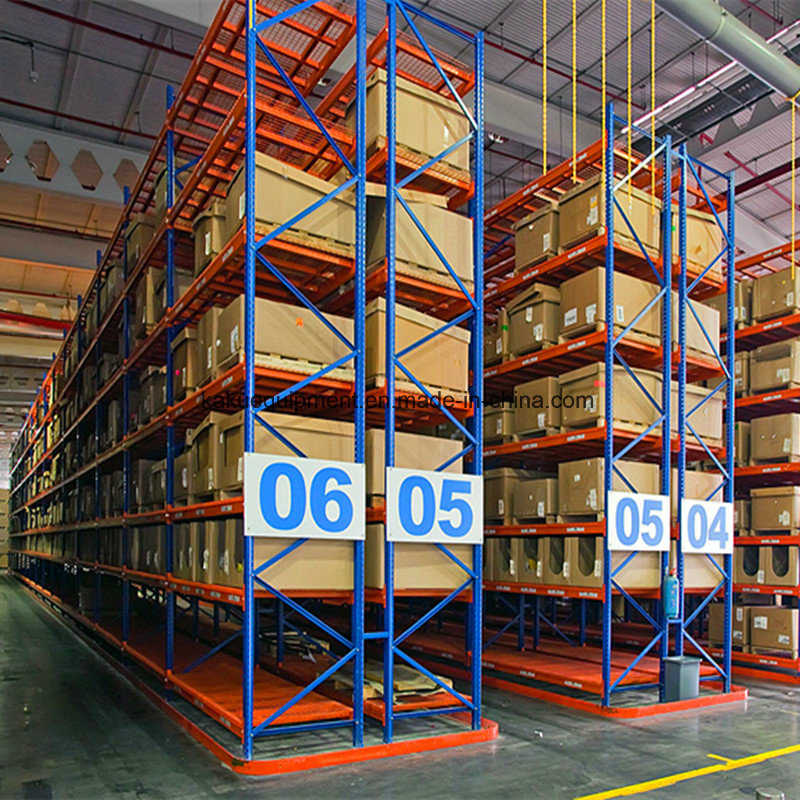

Heavy Duty Storage Vna Pallet Rack for Warehouse with Narrow Aisles

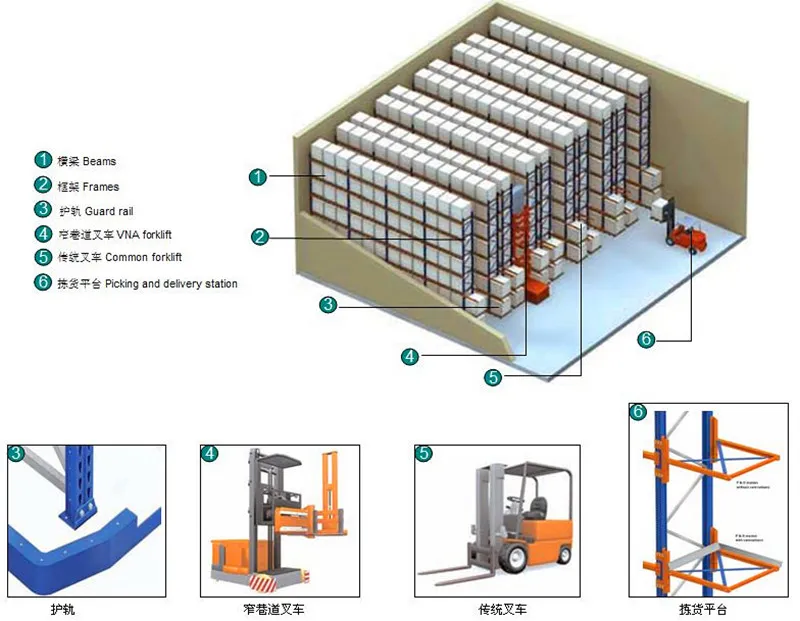

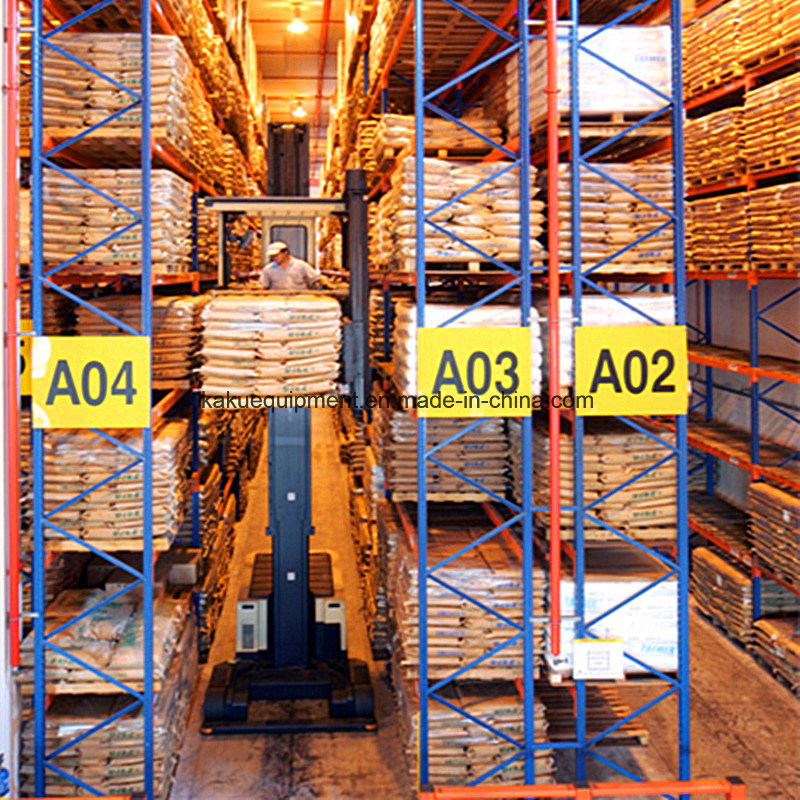

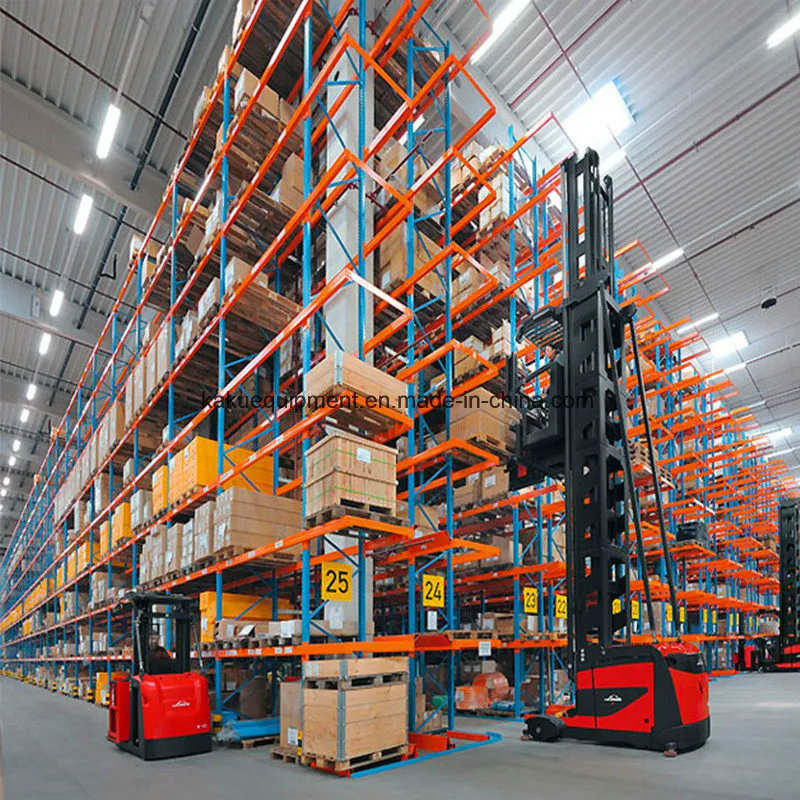

VNA Rack (Very Narrow Aisle Pallet Rack) is a kind of pallet rack. Difference lies in the bottom ground with guide rails. Material handling forklift is dedicated to 3-guide forklift or stacker. The width of Aisle is slightly larger than that of pallets, high density storage requirements can be achieved. At the same time, VNA covers all advantages of pallet racking with 100% optional capability. Forklift can load and unload any pallet.

Features

Having large goods storage capacity, frequent loading and unloading of pallets and higher requirements of goods picking.
Having higher level in logistics efficiency.
Clear height of warehouse is more than 8 meters.
Forklift only used in the appointed warehouse and no extra tasks from outdoor.

Please Provide Information for Quick Quotation

Pallet Size (Length*Width*Loading Height in mm).
Layout or Dimension (Length*Width*Net Height in mm) of your warehouse.
Rack Size (Length*Width*Depth in mm) if available or we shall design for you.
How many bays and levels if available.
Loading Capacity(kg) of each level or each pallet.

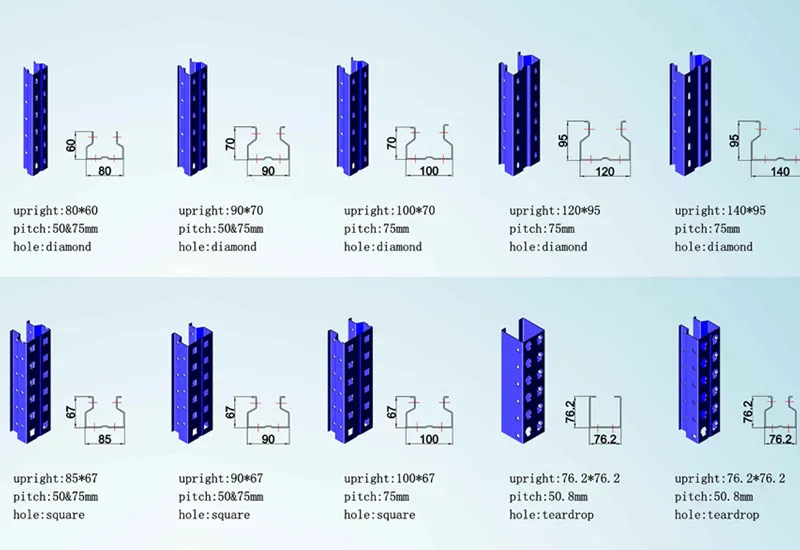

Uprights (t=1.8/2.0/2.3/2.5/3.0mm)

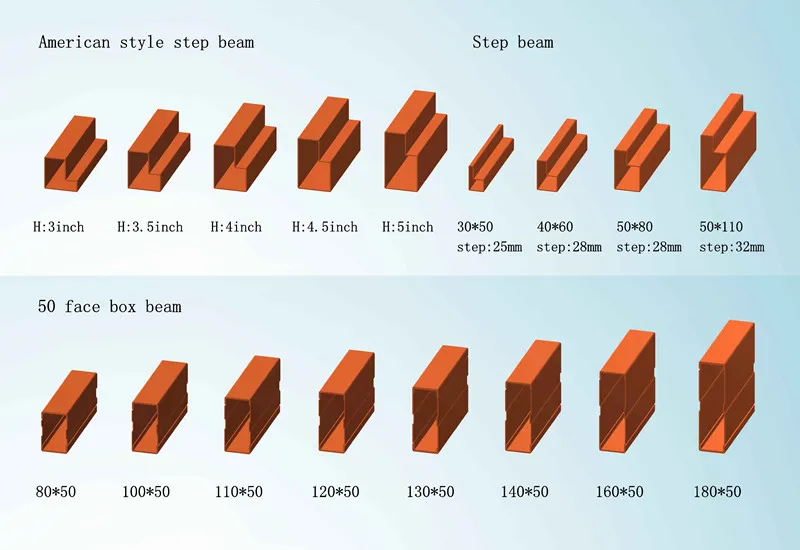

Beams

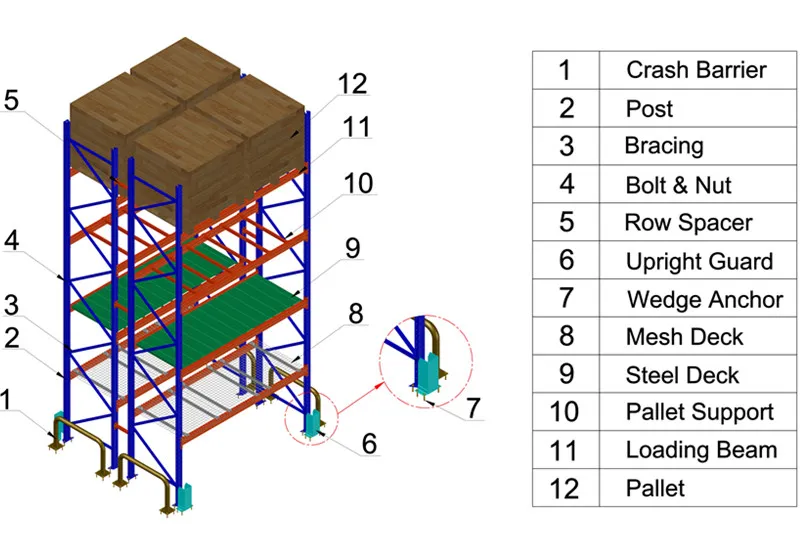

Technical Data for Pallet Rack System

Style	Pallet storage warehouse rack
Selection	Single Row, back-to-back Rows and multiple Rows
Dimension of pallet rack	Standard Pallet: 1200800(F)/12001000(F)/11001100(F)/1066(F)1220 Depth: 1000MM/900MM/1020MM Width: 2700MM/2300MM/2500MM/2432MM Height: pitch is adjusted by increments of 75mm
Customized Pallet	Other special size configuration options available
Beam Range	Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm
Upright Range	8060; 9060; 9070; 9075; 10067; 10070; 10075; 12075; 120*87mm, Thickness: 1.5~3.0mm
Color	Standard or Customized (MOQ applies per 20FT container)
Weight Capacity	5000KG per level max ; 1500KG per pallet max
Package	Full container: Nude Package; manual handling Less than container: steel pallets + steel straps + corrugated paper
Lead time	15-20 days for one container

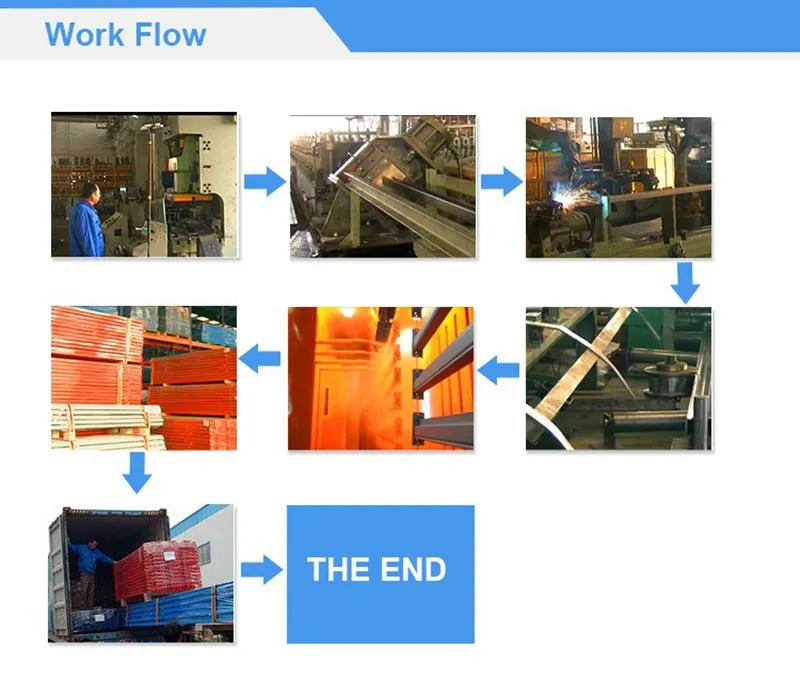

Production Procedure

Service Content

Warehouse Storage Racking Solutions Layout Service

Please Provide Information for Quick Quotation

Pallet Size (Length*Width*Loading Height in mm).
Layout or Dimension (Length*Width*Net Height in mm) of your warehouse.
Rack Size (Length*Width*Depth in mm) if you are available or we shall design for you.
How many bays and levels if available.
Loading Capacity(kg) of each level or each pallet.

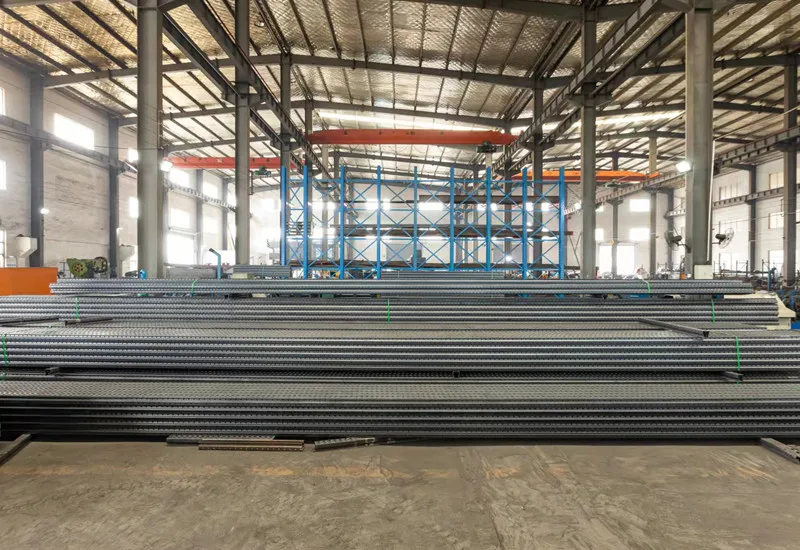

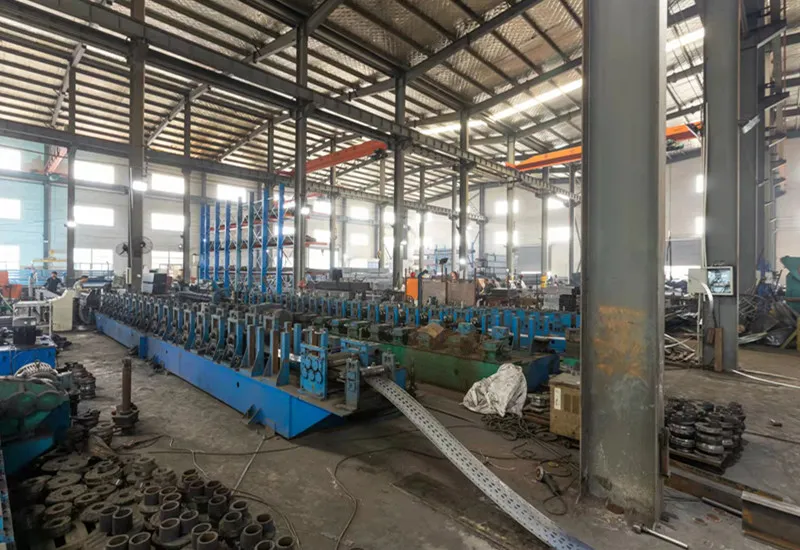

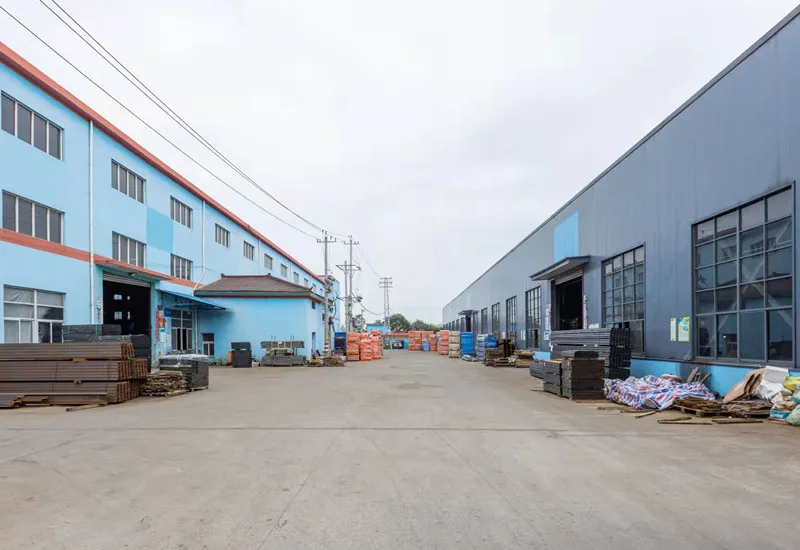

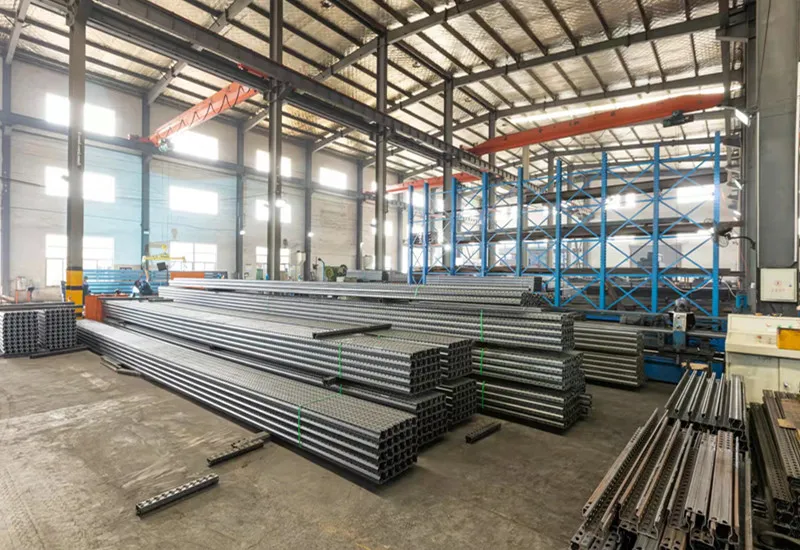

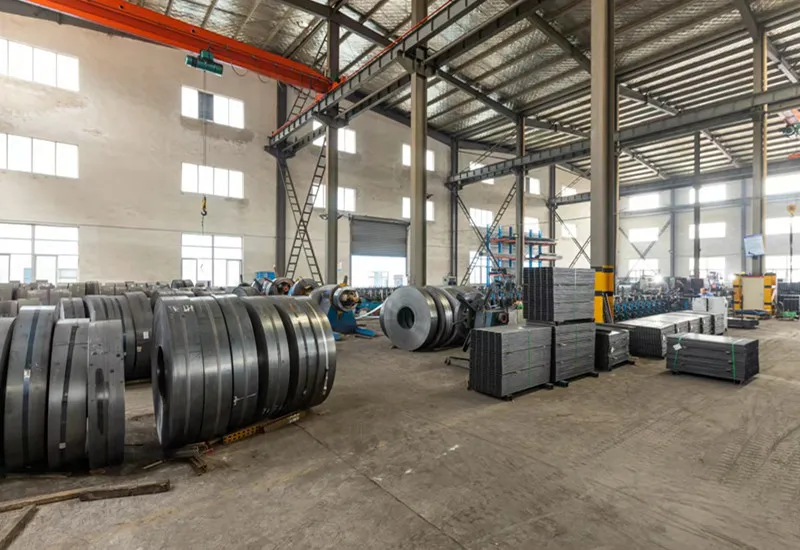

Factory Photos

FAQ

May I know the status of my order?

We will send you photos or video and help you to update.

How fast is the manufacturing process?

For normal orders, we promise to produce within 15 workdays. As a factory, we can assure the delivery time according to the formal contract.

What are the standard delivery times?

Normally, delivery time is within 20 workdays.

What is the term of payment?

T/T: 30% deposit in advance after confirmed order, 70% balance payment before shipment. We also accept Western Union and PayPal.

What is the maximum load capacity for this system?

The technical specifications allow a maximum weight capacity of 5000KG per level and up to 1500KG per pallet.

Are custom colors and sizes available?

Yes, both colors and sizing configurations can be customized based on requirements. Custom color requests require a minimum order quantity (MOQ) of one 20FT container.
