Basic Info.
Usage
Tool Rack, Industrial, Warehouse Rack
Serviceability
Common Use
Color
Blue/Orange/Grey/Yellow or Customized
Transport Package
Export Standard Packing for Ocean Shipment
Specification
CE certified.
Production Capacity
6, 000 Tons/Month
Product Description

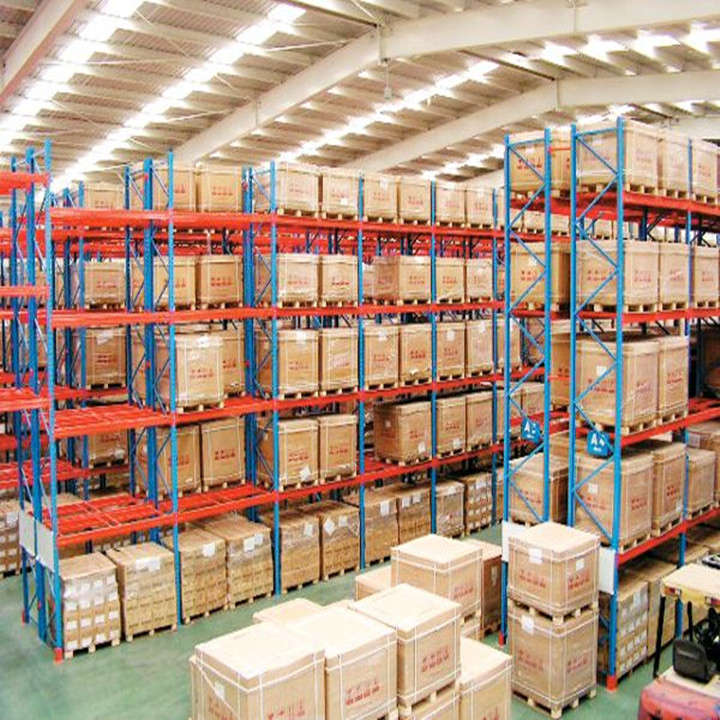

Pallet Racking System is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Features of pallet racks:
- Pallets can be located, accessed and moved individually.
- Rapid handling of almost all types of palletized goods.
- Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
- Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
- Strength and rigidity prevents compression damage to goods.
- Bottom level of pallets can be stored on the floor, lowering structure costs.
Why choose our racks?
- As a leading racking manufacturer, we enjoy 10+ years of experience.
- High quality raw material of steel Q235 is purchased from top steel manufacturers.
- Industry's first contract tracking system helps you know the updates of your purchased products.
- Certification: ISO9001:2008, SGS, CE, and AS 4084-2012
| Specification Parameter |
Details |
| Material |
Steel Q235 (Q345 for Cold Room Application) |
| Loading Capacity |
Customized and up to 4,000 Kg UDL/level |
| Racking Height |
Customized and up to 11,000 mm |
| Racking Depth |
700-1,200 mm |
| Beam Length |
Customized and up to 3,600 mm |
| Racking Finish |
Frames (Powder Coated or Pre-galvanized) + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated) |
Product Show
Product Details

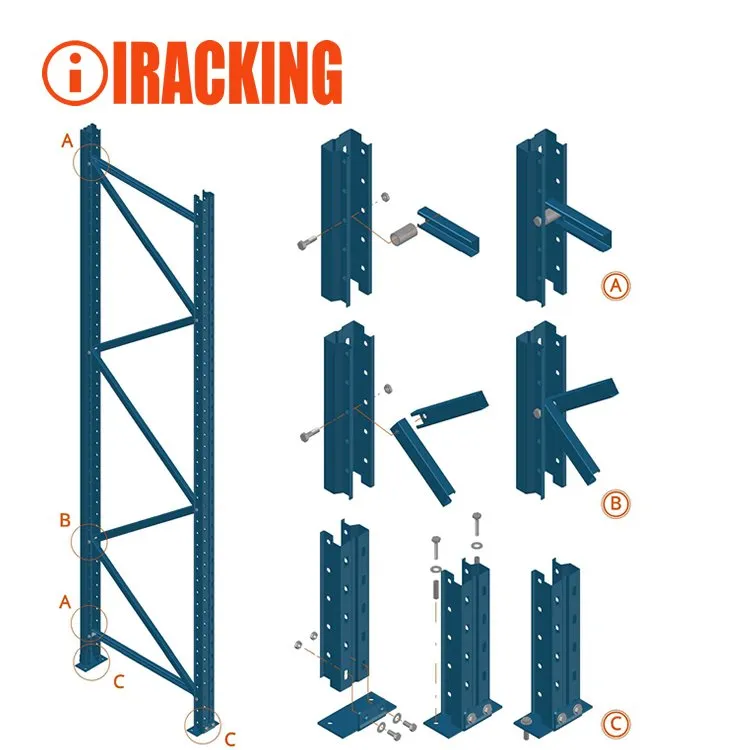

Upright:
Standard section sizes: 80*60*1.8-2.0, 90*70*1.8-2.0-2.5, 100*70*2.0-2.5, 120*95*2.0-2.5mm
Uprights are punched with symmetric hexagonal slots at 75mm/76.2mm intervals for beam height adjustment. The different sections and thickness of uprights enable them to be adapted to a wide range of loading requirements.

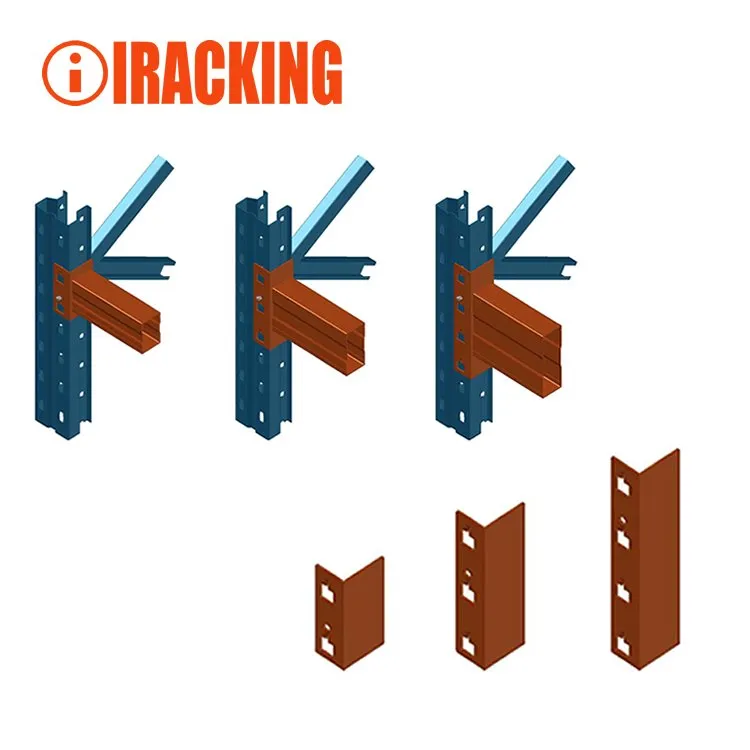

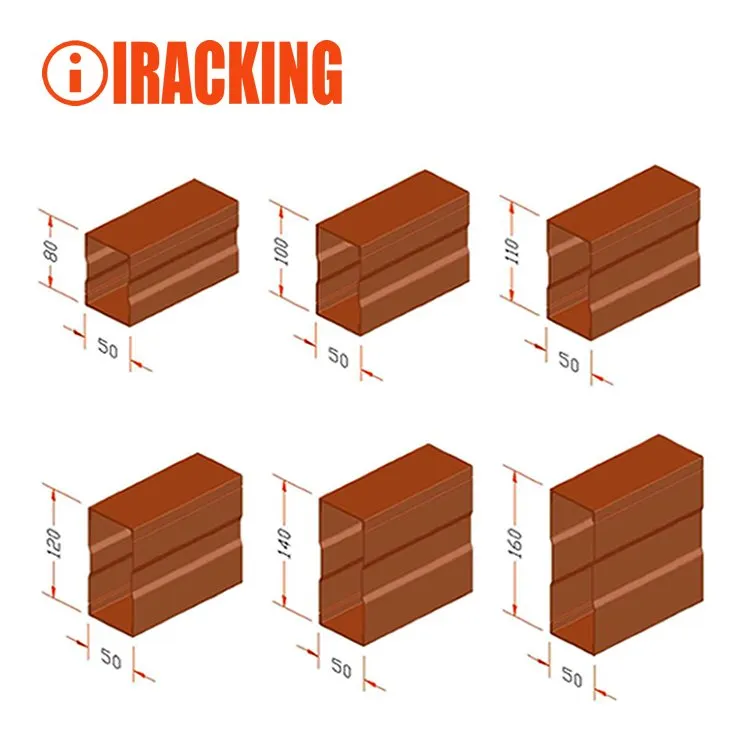

Boxed Beam:
Standard section sizes: 80*50*1.5, 100*50*1.5-2.0, 110*50*1.5-2.0, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm.
Beams provide support to pallets located on top. Box beams are constructed by joining two "C" sections over the entire length of the beams. Double material thickness top and bottom provides much greater added strength, rigidity, and safety.
Small Components & Accessories:

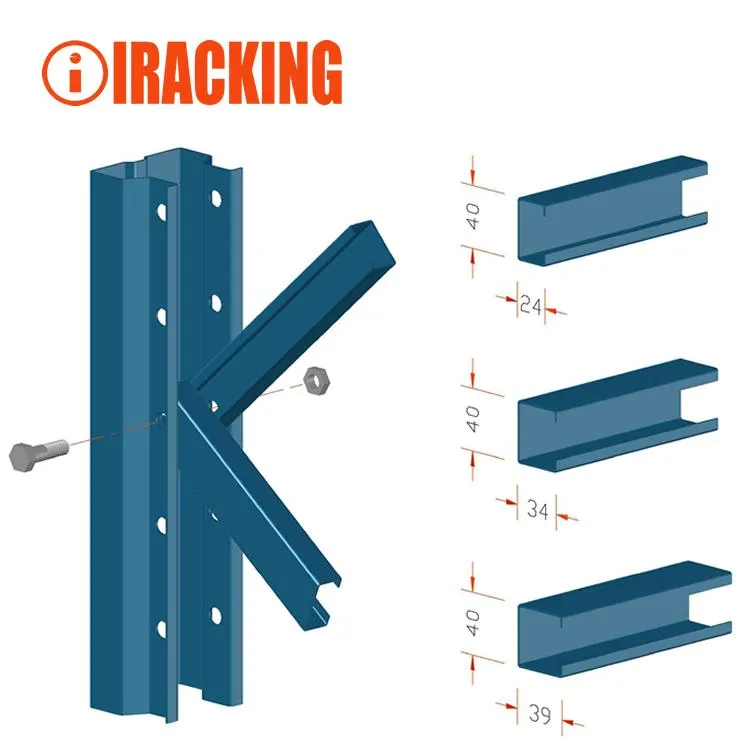

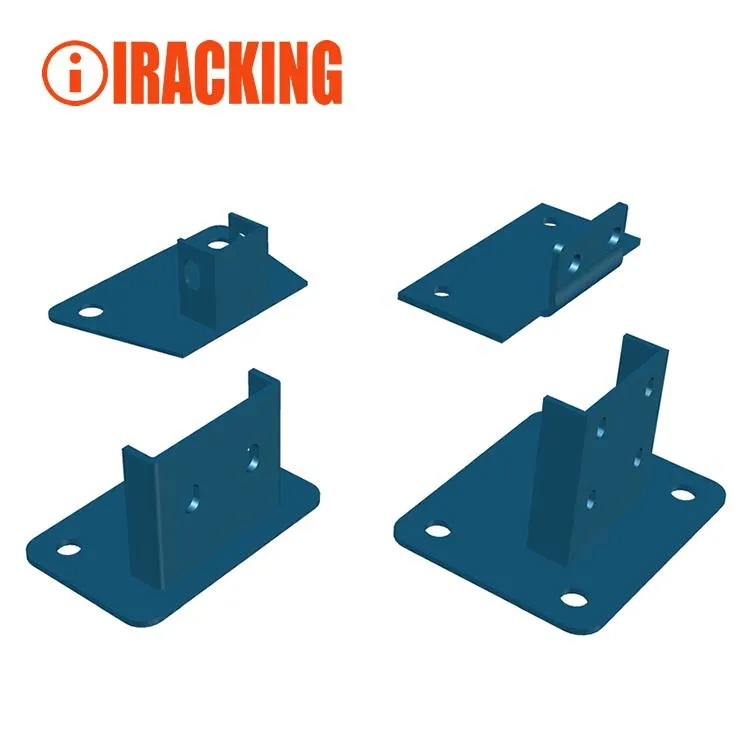

Small Components include: Post Baseplate, Bracing, Plastic Block for assembly of horizontal bracing, Anchors, Bolts & Nuts, and Safety Pin.

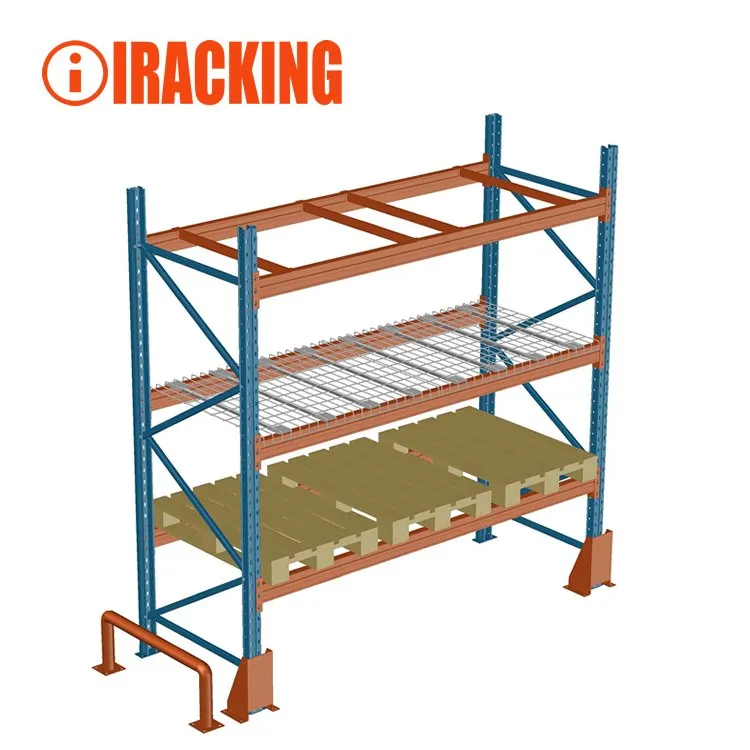

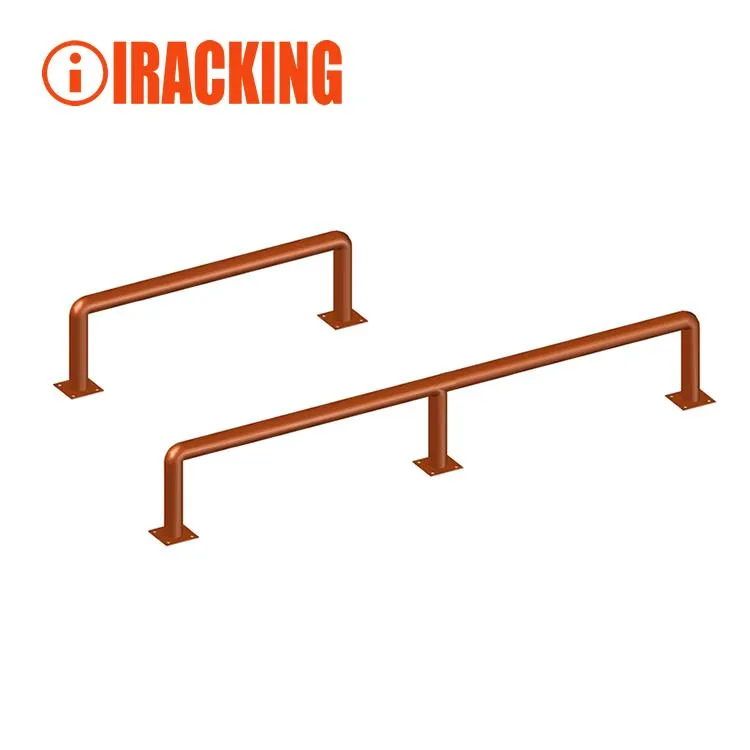

Accessories to Pallet Racking Systems: Row Spacer connecting Upright Frames for stronger structure, U-shape Post Protector, L-shape Post Protector, Frame Barrier, Pallet Supporting Bar, Steel Pallets, Plastic Pallet, Special custom-made Pallets, Cage, Mesh Container, Mesh Deck, etc.

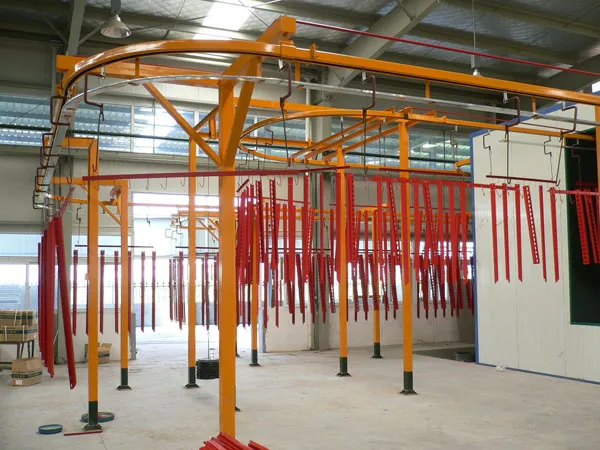

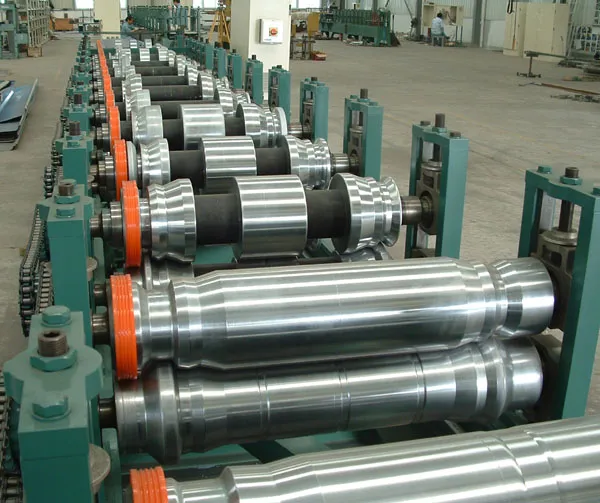

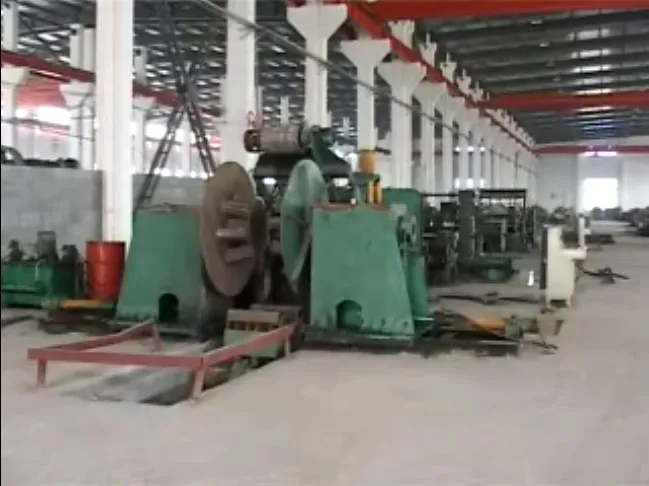

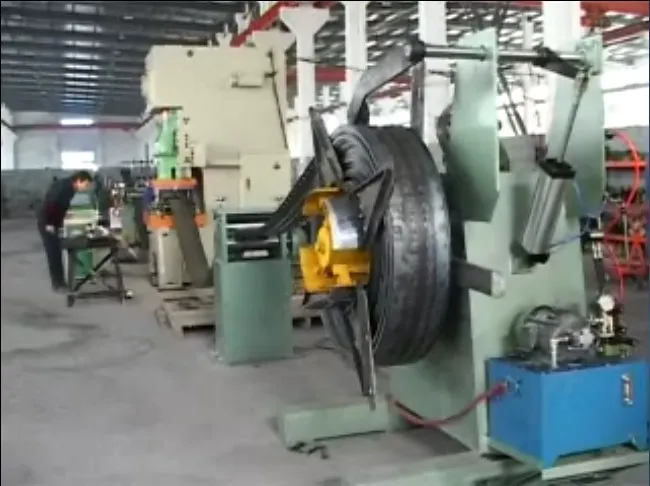

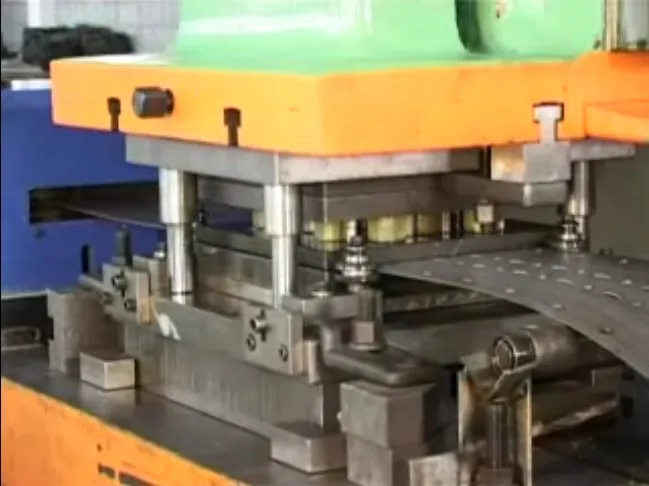

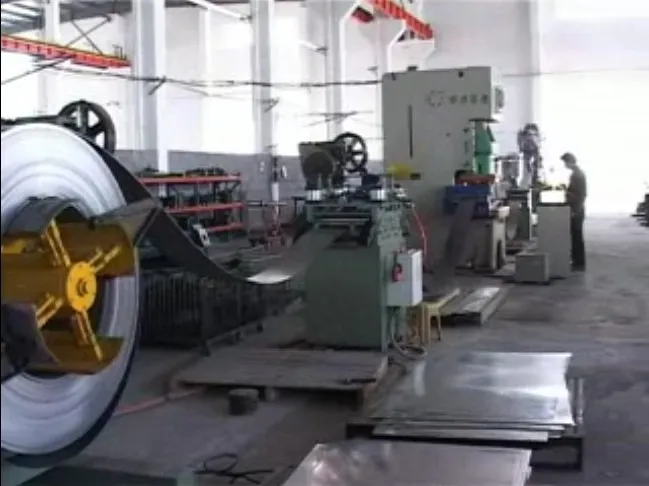

Manufacturing & Applications
Our Services
You can send us your CAD drawing, and we could give you a quick online quotation, or you just tell us your tridimensional dimension of your warehouse we can design and work out drawings for you within 48 hours.
Please inform us of the following information for a quick quotation:
| No. |
Required Design details |
| 1 |
Drawing (if available) |
| 2 |
Size of your warehouse (width, length, clear height) or your warehouse plan drawing |
| 3 |
Size of racking (H*W*L) |
| 4 |
How many levels of the racking? |
| 5 |
Loading capacity of each level? |
| 6 |
(RAL) Color you want. |
Frequently Asked Questions
What is the raw material of your products?
Generally, the raw material of the steel code is Q235. Other types of steel are also available depending on clients' requirements.
What is the term of payment?
As a standard term, we accept 30% T/T down payment and the remaining balance before shipping.
What is the delivery time?
Delivery time depends on the order quantity and racking types. Generally, it takes within 15 days for ordinary order quantities of the Storage Pallet Racking System.
Which port will be used as the loading port?
The closest local port in our region is highly recommended as the loading port. Shanghai port is also available depending on your logistics requirements.
May I know the status of my order?
Yes. We will send you regular updates and photos at different production stages of your order. You can also trace the status through our contract tracking system.
Are product samples available?
Yes. Short sections of samples can be provided free of charge, but international courier costs are to be borne by the client.
