Vna Pallet Rack for Narrow Aisle Storage Without Floor Rails

Product Description

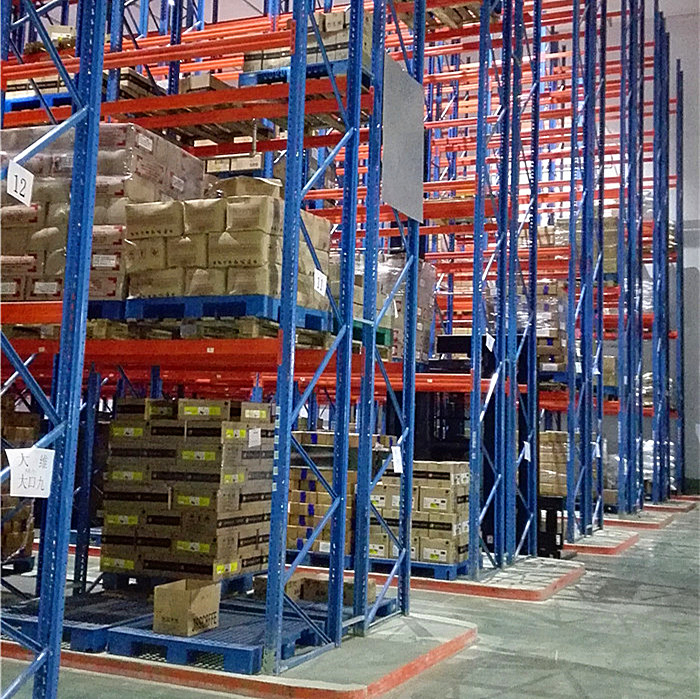

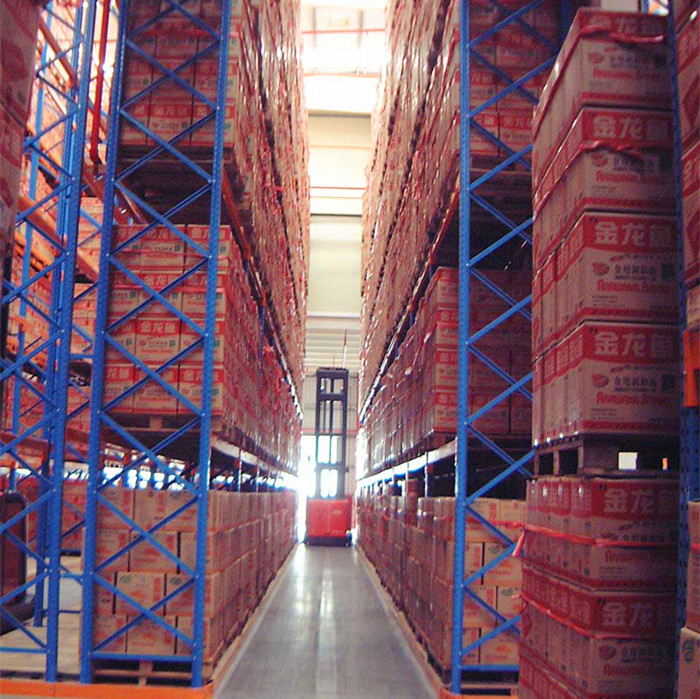

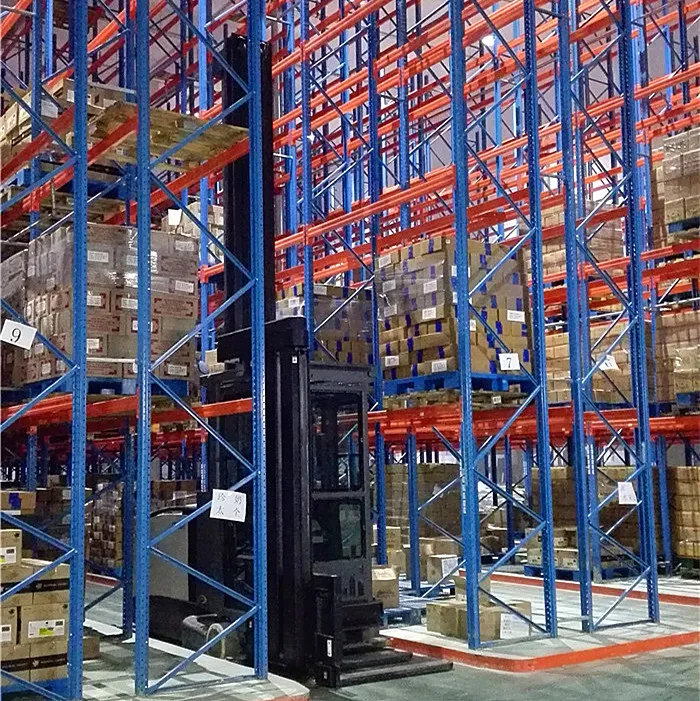

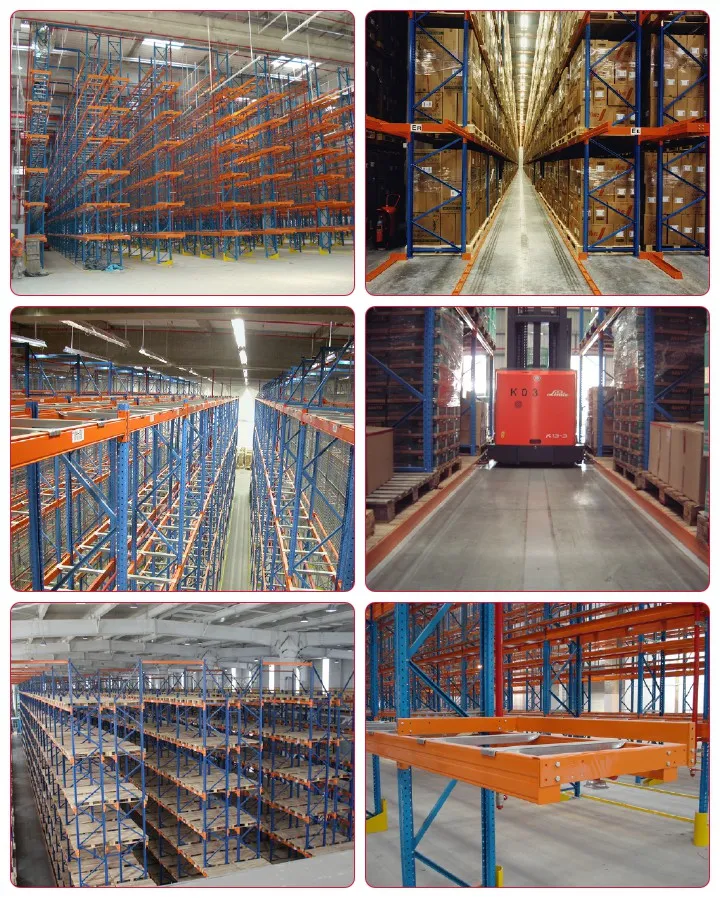

VNA rack is derived from the selective pallet racking, and only the floor guide rails are equipped. (Some trucks with magnetic conductance does not need floor guide rails). The Very Narrow Aisle (VNA) system handled with special handling equipment. The VNA truck with rotate mast or fork from left to right position to store in and pick up pallets from the aisle without turning. VNA truck can operate in margined aisle width and greater height than conventional truck.

Vna Pallet Rack for Narrow Aisle Storage Without Floor Rails

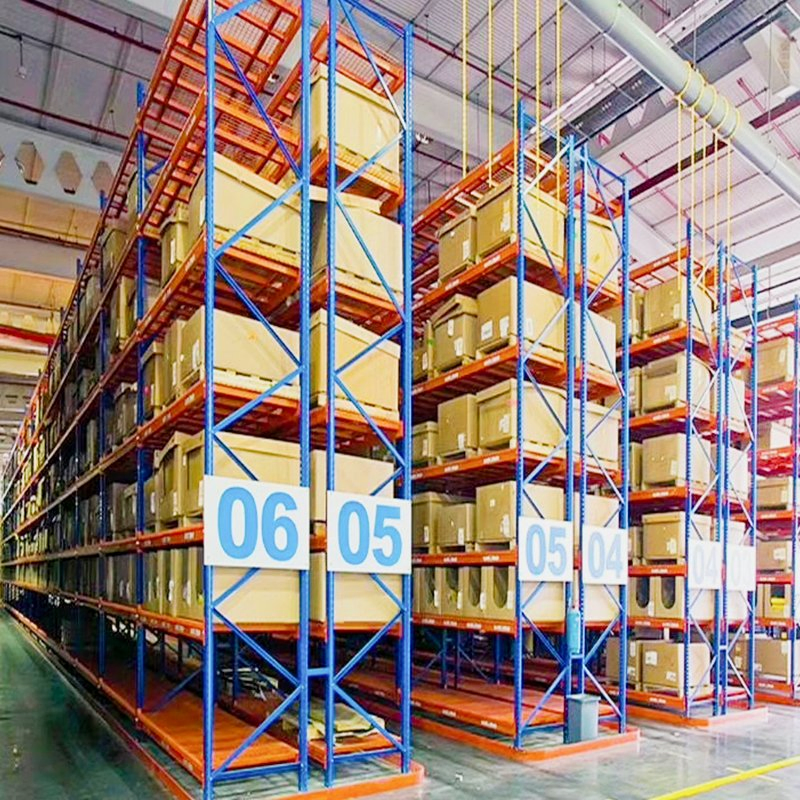

VNA pallet rack Floor utilization is 50% and 100% selectivity, which is the best option for high-density storage. It is simple and good for first in first out application. The system is found in warehouse, super market, distribution center, pharmaceutical industry, etc.

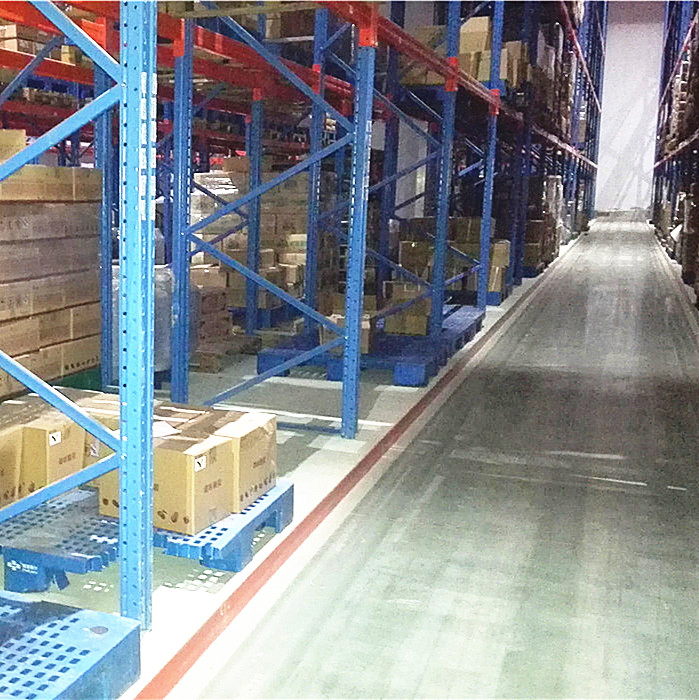

Aisle width is approximately 1700-2000mm depends on reach height and pallet depth.

The system is designed for standard palletized goods. The size and weight of the goods, the specification of the VNA truck can be determined to design the racking structure. Rack beam height can be as high as 15m. Normally the working aisles for the VNA truck can be around 1800mm.

The Basic Components

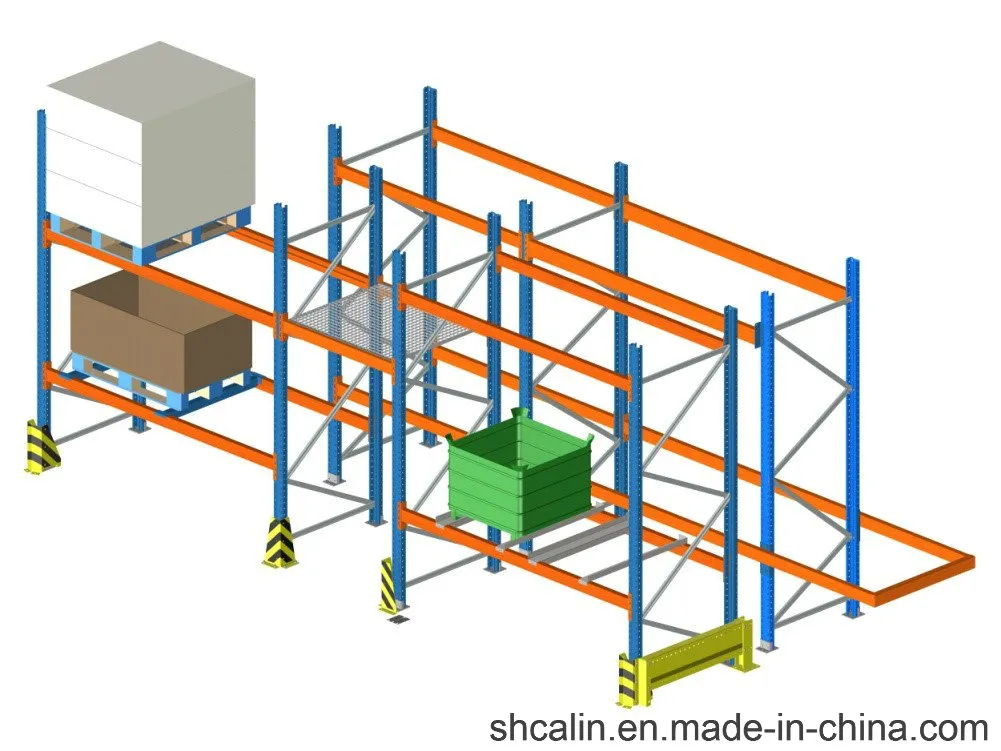

Selective pallet racking is composed of basic element such as frames and beams. It also consists of a full range of accessories to fulfill all of your requirements. The system is designed for the optimized storage of goods of all sizes and weights.

The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.

The standard colors are RAL 5015 (= sky blue) for the frames and RAL 2004 (=pure orange) for the beams. Protectors are painted in RAL 1004 (= golden yellow). Some smaller parts have a galvanized finishing. Special colors are available on request.

Standard Specifications of Main Components (Uprights and Beams):

Main Components	Section Size	Thickness (mm)	Material
Upright	90*70	1.8	Q235B
	90*70	2.0	Q235B
	90*70	2.3	Q235B
	100*80	2.0	Q235B
	100*80	2.3	Q235B
	100*80	2.5	Q235B
Box Beams	80501.5	1.5	Q235B
	100501.5	1.5	Q235B
	120501.5	1.5	Q235B
	140501.5	1.5	Q235B
	140501.8	1.8	Q235B
	160501.8	1.8	Q235B
	160502.0	2.0	Q235B

Advantages and Key Benefits

Complies with international norms and regulations
Wide range of basic components for storage of all pallet sizes and weights
Many standard accessories to meet every storage need you can imagine
Computer aided design ensuring the best solution for every application, including static calculations
Rigid and stable construction
High quality of finish
Easy and quick installation
Mass volume production to offer very cost effective products

Beam Loading Chart

Beams Specification	Clear Entry (mm) Deflection < 1/200
Beams Specification	1500	1800	2000	2300	2500	2700	3000	3300	3600	3900
B80501.5	4000	2800	2200	1700	1500	1200	1000	850	-	-
B100501.5	-	4200	3400	2800	2500	2100	1700	1400	1200	-
B110501.5	-	-	4500	3300	2800	2500	2200	1800	1500	1200
B120501.5	-	-	-	4000	3400	3000	2600	2200	1800	1500
B140501.5	-	-	-	-	4500	3800	3200	3000	2600	2000
B160501.5	-	-	-	-	-	4800	4200	3800	3300	2800

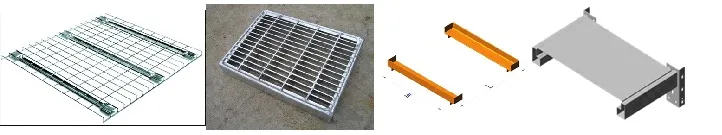

Available Accessories

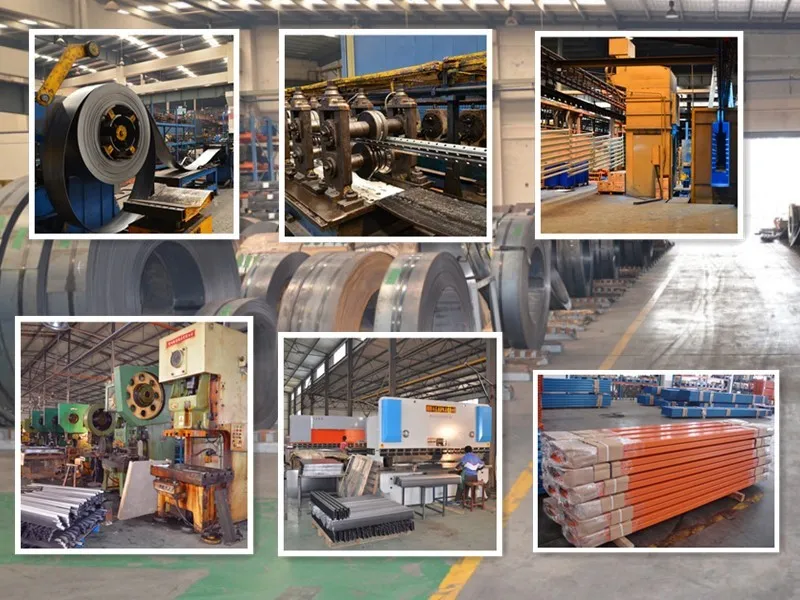

Factory Production

RFQ Documents

Before you send us your Requirement For Quotation, please prepare the following information:

Warehouse layout CAD drawings if available.
Pallet size, entry side, width, depth, height of goods.
Loading weight per pallet.
Clear height of the warehouse.
Your forklift information, working aisles width and max. reaching height.
Your intra logistic flow within the warehouse.

Frequently Asked Questions (FAQ)

Q What is a VNA (Very Narrow Aisle) pallet rack system?

A VNA pallet rack system is derived from selective pallet racking but designed for much narrower aisles. It operates with floor guide rails (or magnetic guidance systems) and utilizes specialized VNA trucks with rotating masts or forks to store and retrieve pallets without turning the truck.

Q What is the typical aisle width for VNA pallet racking?

The working aisle width typically ranges between 1700mm to 2000mm (commonly around 1800mm). This depends directly on the reach height of the VNA truck and the overall depth of the pallets.

Q What standard colors and finishes are available for the racking?

All painted components feature a high-quality Epoxy-powder coating polymerized at 180 °C. The standard colors are RAL 5015 (sky blue) for frames, RAL 2004 (pure orange) for beams, and RAL 1004 (golden yellow) for protectors. Smaller components feature a galvanized finish.

Q What is the maximum height for VNA racking systems?

VNA racking systems are optimized for high-density vertical storage, and the rack beam height can be designed to go as high as 15 meters, depending on the warehouse structure and your VNA truck specifications.

Q What information is needed to receive a custom quote?

To provide an accurate quote, we require your warehouse layout CAD drawings, pallet size and load weights, clear warehouse height, forklift specifications (including max reaching height and aisle widths), and details about your warehouse logistics flow.
